Поз.
Артикул
Описание

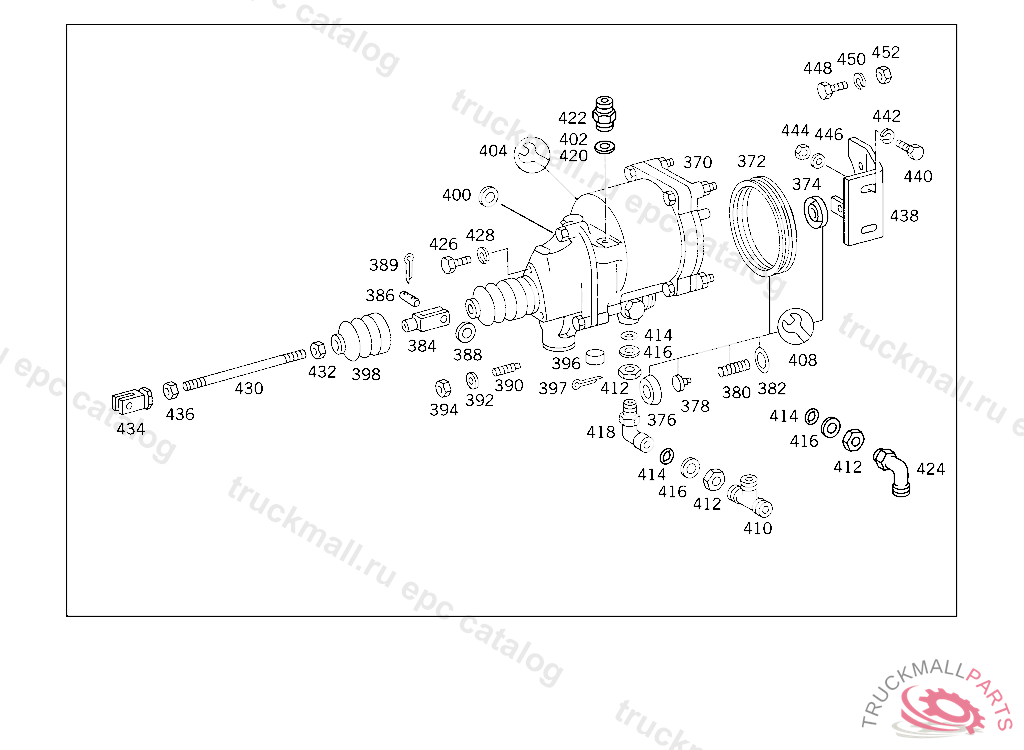

370
BRAKE BOOSTER , Replaced By: A3444317014
370
BRAKE CYLINDER. BRAKE BOOSTER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
372
CUPTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 724
374
SEAL RING
376
CUPBOSCH
378
VALVE DISCTO 000 429 48 30
380
SPRINGTO 000 429 16 30
382
SEAL RING OIL DRAIN 30X36 MM
384
YOKE , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
386
PIN
388
WASHER
389
COTTER PINTO 000 431 24 05
390
HEADLESS SETSCREW
392
WASHER
394
NUT LEVER TO SHIFTING SHAFT
396
AIR CLEANER
397
COTTER PINTO 000 431 24 05
398
PROTECTIVE CAP BRAKE BOOSTER
400
SEAL RING COMPRESSED AIR LINE TO CLUTCH BOOSTER WABCO
402
SEAL RING
404
REPAIR KIT MAJOR, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
404
REPAIR KIT MINOR, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
408
REPAIR KIT BRAKE BOOSTER
410
T-FITTING
412
NUT CHECK VALVE TO AIR RESERVOIR
414
O-RING CHECK VALVE TO AIR RESERVOIR
416
THRUST RING CHECK VALVE TO AIR RESERVOIR
416
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
418
ELBOW FITTING AT TRUCK-TRACTOR BRAKE VALVE
418
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
420
SEAL RING , NOT USED
422
DOUBLE FITTING
424
ELBOW FITTING
426
SCREW , Replaced By: N304017010002
428
LOCK WASHER , Replaced By: N912004010102
430
ROD
432
NUT , Replaced By: N308675012000
434
YOKETO 312 430 43 92,344 430 70 92, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
436
NUT AT TRUCK-TRACTOR BRAKE VALVE
438
BRACKET
440
SCREW , Replaced By: N304017010002
442
LOCK WASHER , Replaced By: N912004010102
444
NUT BRACKET TO FRAME
446
WASHER , Replaced By: N000125010532
448
SCREW CLAMP TO BRACKET AND TO PIPE
450
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
452
NUT TAIL LAMP TO BRACKET
999
CLAMP , Replaced By: A0003380645
999
VALVE HAND BRAKE VALVE WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
DRAG LINK END
999
BALL SOCKET TOP
999
BALL SOCKET BOTTOM
999
SPRING
999
DUST CAP
999
SWITCH RANGE SELECTOR LOCK
999
VALVE (RELAY VALVE) WABCO
999
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
999
VALVE , Replaced By: A0024314006
999
SPHERICAL RING REAR DISC WHEEL
999
DRAG LINK , Replaced By: A3274601605
999
BALL PIVOT
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
BRACKET LEFT
999
BRACKET RIGHT
999
PIPE ,A 069204
999
DISC WHEEL (8-HOLE RIM), USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
SIDE RINGTO 341 400 03 02,341 400 05 02, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
SHOULDER RINGTO 341 400 71 02,341 400 72 02
999
RESERVOIR"1,2",A 069205A 90243
999
DRAG LINK , USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
DRAG LINK , Replaced By: A3454608605
999
HOSE , Replaced By: A3769978182
999
BRACKET RELEASE SPRING
999
STOP BRAKE PEDAL
999
VALVE , Replaced By: A0004320807
999
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
999
SPRING TWO-CIRCUIT BRAKE VALVE
999
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
ROD PISTON ROD
999
YOKE PISTON ROD
999
NUT
