Поз.
Артикул
Описание

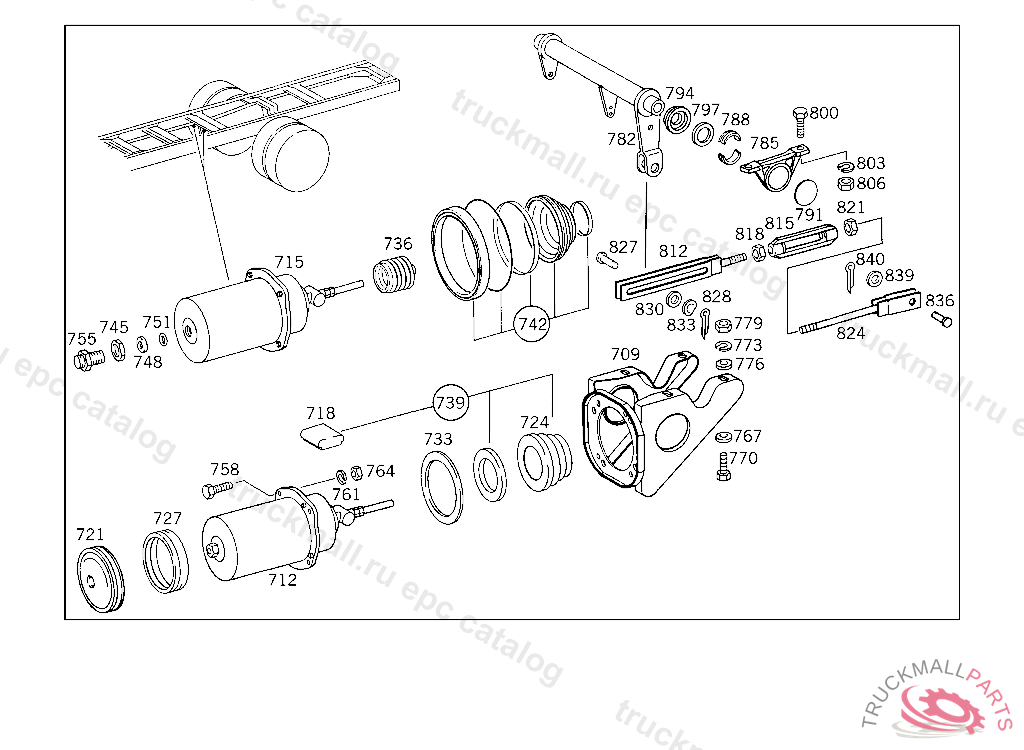

709
CONSOLE SPRING LOAD ACCUMULATOR CYLINDER
712
BRAKE CYLINDERBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
715
BRAKE CYLINDER SPRING LOAD ACCUMULATOR CYLINDER WABCO
718
SLIDETO 000 431 50 14,000 431 24 14
721
CUP , WITH BOSCH CHARACTERISTIC NUMBER 723, Replaced By: A0004312786, +001A0004318583
724
CUP , Replaced By: A0015864342
727
CUPTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 724
727
CUP , Replaced By: A0004312786
733
SEAL RINGTO 000 431 24 14
733
SEAL RINGTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 723
736
PROTECTIVE CAPTO 000 431 24 14
739
REPAIR KIT , Replaced By: A0034201724
742
REPAIR KITTO 000 431 56 14,001 431 13 14,WABCO
745
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
748
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
751
SEAL RING
755
FITTING LOCKING VALVE
758
SCREW TAIL LAMP BRACKET TO FRAME M 10X28
761
LOCK WASHER , Replaced By: N912004010102
764
NUT BRACKET TO RETARDER
767
WASHER , Replaced By: A4219905440
770
HEX. HEAD SCREW. SCREW ELECTRIC CABLE TO SIDE MEMBER, 032,033,040,041,132,133,140,141 FROM CAB 1606715
773
LOCK WASHER , Replaced By: N912004010102
776
WASHER , Replaced By: N000125010532
779
NUT BRACKET TO RETARDER
782
BRAKE INTERMEDIATE SHAFT
785
BEARING BRACKET
788
SPHERICAL PIECE , Replaced By: A3025860242
791
EXPANSION PLUG
794
SEAL HOLDER
797
SEAL RING
800
SCREW BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
803
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
806
NUT STRAP TO SUPPORT
812
ROD FROM BRAKE SHAFT TO BRAKE LEVER
815
NUT FROM BRAKE SHAFT TO BRAKE LEVER
818
HEX, NUT. NUT L.H. THREAD
821
HEX. NUT M 12 DIN 934-5 S. NUT , Replaced By: N000934012021
824
ROD REAR
827
PIN PULL ROD TO BRAKE INTERMEDIATE LEVER
828
COTTER PIN
830
WASHER
833
LOCK RING. SPRING WASHER
836
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
839
WASHER
840
COTTER PIN
999
SHAFT
999
LEVER RANGE OF DELIVERY
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE , Replaced By: A0004291182
999
VALVE BODYTO 002 429 95 44
999
PISTONTO 000 431 21 14,BOSCH
999
SWITCH
999
KNOB , Replaced By: A0005451081
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
GROMMET3.0 MM
999
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
999
VALVE (OVERFLOW VALVE)
999
VALVE PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL WABCO
999
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
999
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
999
PLUG HOUSING 4-POLE
999
PIN BUSHING HOUSING UNIPOLAR
999
RING AS REQUIRED 3.0 MM
999
SEAL WASHER
999
BEARING BRACKET , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SPACER RING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
WASHER BRAKE LEVER TO BEARING BRACKET, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SPRING CLUTCH PEDAL
999
LOCK ENGINE TO REAR RUBBER MOUNTING
999
ROD
999
ROD
999
BRACKET BRACKET TO RADIATOR,A 067114
999
BRACKET BRACKET TO RADIATOR,A 067114
999
REPAIR KIT , Replaced By: A3144200092
999
PAD BRAKE AND CLUTCH LEVERS
999
SPACER RING PEDAL TO BEARING BRACKET
999
PEDAL PLATE
999
ROD CLUTCH,A 012247
999
LEVER , INAPPLICABLE TO SUPERCHARGING SYSTEMGB718835
999
END PIECE
999
BEARING BRACKET
999
SHIM RESERVOIR
999
BOOT
999
WASHER PEDAL TO PEDAL LEVER
999
BEARING BRACKET
999
BRACKET
999
GROMMET
999
INTAKE PIPE
999
CARTRIDGE
999
RUBBER MOUNTING REAR
999
VALVE GEAR
999
BRACKET (PARTS KIT)
999
GEAR (PARTS KIT)
999
GUIDE , Replaced By: A3412717177
999
DRIVE SHAFT
999
VALVE BODY ASSEMBLY
999
BEARING BRACKET PEDAL BEARING
999
LEVER , Replaced By: A3412907634
999
HUB BRAKE PEDAL
999
LEVER ACCELERATOR PEDAL CONTROL,A 058279
999
ENGINE CROSS MEMBER REAR
999
FRAME ,A 058279
999
FRAME ,A 058278
999
END PIECE
999
BRAKE LEVER
999
BRAKE INTERMEDIATE SHAFT REAR
999
LINE FROM DOUBLE FITTING TO OPERATING VALVE
999
LINE FROM ELBOW FITTING TO VALVE
999
LINE12 MM,A 071015,341.042/044
999
BRACKET
999
LINE FROM VALVE TO LEFT ELBOW FITTING,A 051276
999
LINE T-FITTING,CONNECTION: "3,1",A 072935
999
LINE FROM VALVE TO RIGHT ELBOW FITTING,A 051276
999
REINFORCEMENT PARKING BRAKE TO VEHICLE FLOOR, USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
CONNECTOR AT AIR COMPRESSOR
999
ELBOW FITTING AT TRUCK-TRACTOR BRAKE VALVE
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1",A 069205
999
ELBOW FITTING AT PRESSURE REGULATOR
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO BRAKE LINE COUPLING 8 MM, USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
LINE FROM ELBOW FITTING TO DOUBLE FITTING
999
LINE FROM TWO-CIRCUIT PROTECTIVE VALVE T-FITTING TO FITTING
999
PIN AT PRESSURE REGULATOR
999
HOSE , Replaced By: A3415017282
999
CABLE HARNESS FROM PLUG CONNECTION TO SOLENOID VALVE
999
ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24", USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
CLAMP COMPRESSED AIR LINE MOUNTING,A 069681
999
SEAL RING , Replaced By: A0009870446
999
SUPPORT RANGE SELECTOR SWITCH
999
BOOT
999
BRACKET BRAKE HOSE,FRONT
999
T-FITTING ,627034
999
T-FITTING
999
PEDAL ,A 006846
999
RATCHET ROD , Replaced By: A3414200088, +001A3094270020, +001N007985010120
999
PROTECTIVE CAP , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
FILTER OIL FILTER
999
SCREW FUEL LINE TO BRACKET
999
SCREW BRACKET TO RADIATOR,A 067114
999
COTTER PIN
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW STEERING COLUMN JACKET TUBE TO FLOOR PLATE
999
SERRATED WASHER BRACKET TO CAB FLOOR,4 411811
999
NUT CHECK VALVE TO AIR RESERVOIR
999
CABLE SHOE
999
PULL ROD FROM INTERMEDIATE LEVER TO BRAKE INTERMEDIATE SHAFT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N913004008001
999
CLAMP BRAKE HOSE BRACKET
