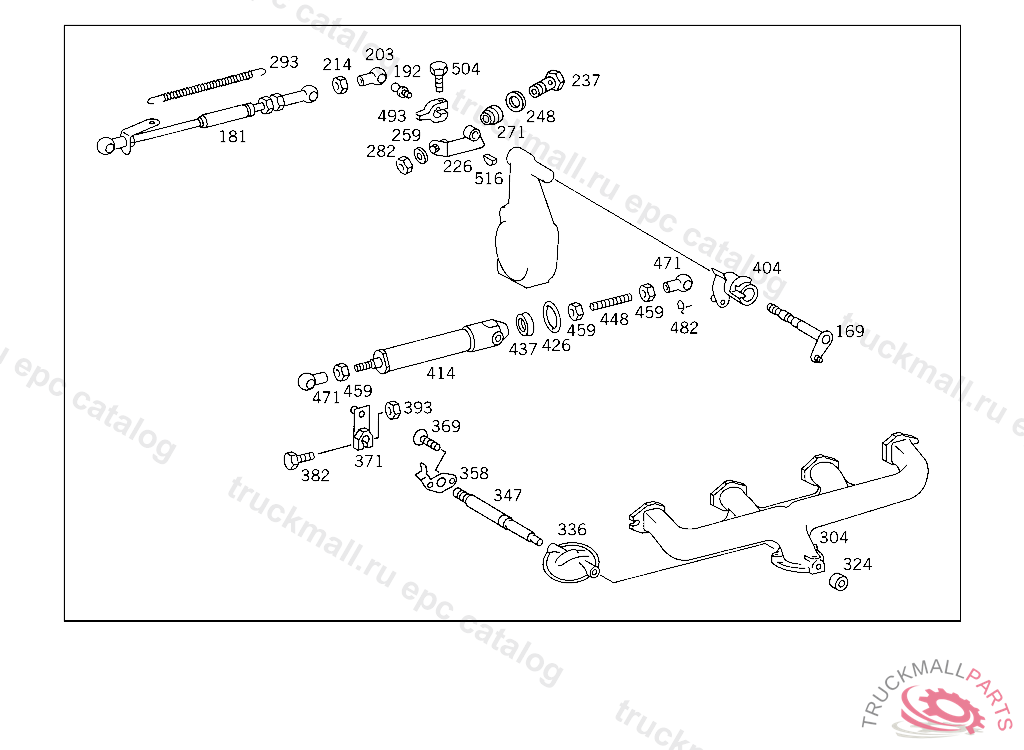

Поз.
Артикул
Описание
169
SHAFT CONTROL
169
SHAFT , NOT USED
169
SHAFT CONTROL
181
ROD
192
BALL PIVOT
203
BALL SOCKET PULL ROD TO LEVER
214
NUT POWER CYLINDER
226
LEVER IDLING CONTROL
226
LEVER , Replaced By: A3740708221
237
SCREW WIRE CABLE TO LEVER
237
SCREW , USED WITH AIR BRAKE
248
WASHER WIRE CABLE TO LEVER
259
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
271
BUSHING WIRE CABLE TO LEVER
271
BUSHING , USED WITH AIR BRAKE
282
NUT BALL PIVOT TO LEVER
293
SPRING , Replaced By: A3529931910
304
EXHAUST MANIFOLD WITH THROTTLE VALVE
304
EXHAUST MANIFOLD WITH BUSHINGS
324
BUSHING *** 13 MM
324
BUSHING MOUNTING MATERIAL, TO BE ADAPTED DURING ASSEMBLY
336
THROTTLE VALVE , Replaced By: A3521442213
347
SHAFT EXHAUST-BRAKE THROTTLE VALVE
358
STOP
369
SCREW STOP TO EXHAUST MANIFOLD
371
LEVER IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 403 140 09 25
382
SCREW
393
NUT BALL PIVOT TO LEVER
404
LEVER EXHAUST BRAKE
414
CYLINDER LOCKING MECHANISM
426
WASHER
437
SEAL RING
448
PULL ROD BRACKET TO FRAME
459
NUT ,B 884219
471
BALL SOCKET ROD TO BALL PIVOT
482
CIRCLIP ,B 884219
493
FOLLOWER LEVER ,082680
504
SCREW CAB FLOOR COVERING M 6X25
516
WOODRUFF KEY CONTROL LEVER TO BRACKET
999
LEVER FOLLOWER LEVER
999
SHAFT
999
SHAFT CONTROL
999
LEVER , NOT USED
999
BALL PIVOT , Replaced By: A3129910120
