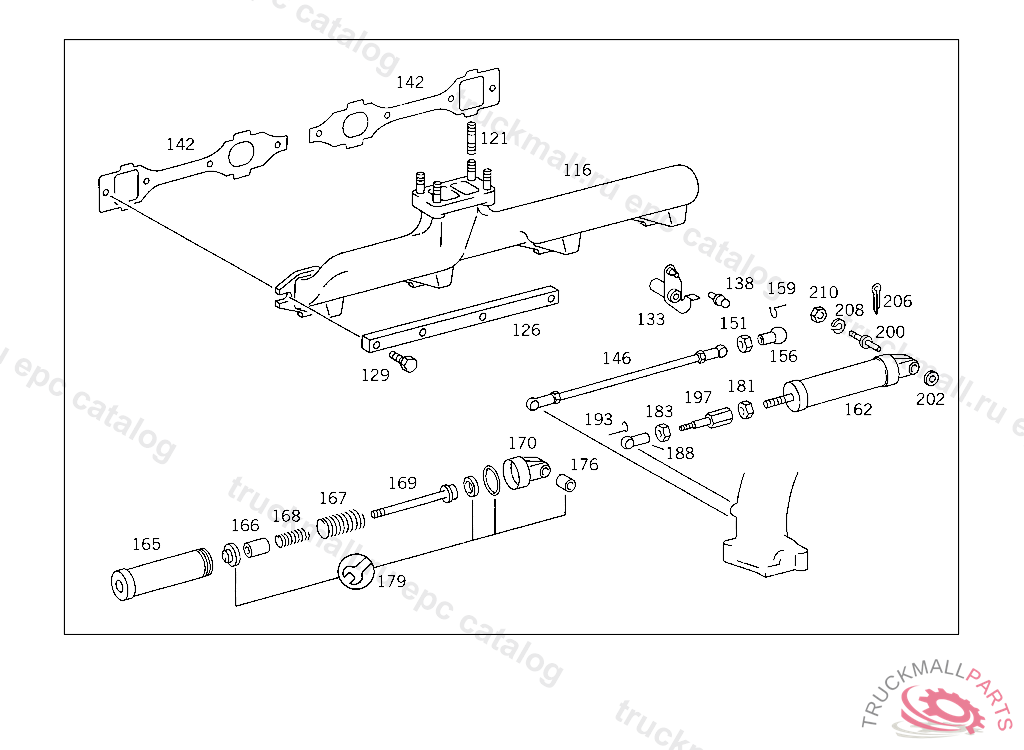

Поз.
Артикул
Описание
133
LEVER EXHAUST BRAKE
138
BALL PIVOT , Replaced By: A3129910120
138
BALL PIVOT LEVER
162
CYLINDER EXHAUST BRAKE SCHRADER
162
CYLINDER EXHAUST BRAKE KNORR
162
CYLINDER
165
BRAKE MASTER CYLINDER
166
SPRING RETAINERTO 345 430 73 26
167
SPRINGTO 345 430 73 26
168
SPRINGTO 345 430 73 26
169
PISTONTO 345 430 73 26
170
CYLINDER COVERTO 345 430 73 26
176
BUSHINGTO 001 260 03 63
179
REPAIR KIT , Replaced By: A0004305526
179
REPAIR KIT , Replaced By: A0004306226
179
REPAIR KITTO 345 430 00 26
179
REPAIR KITTO 345 430 73 26
181
NUT AT TRUCK-TRACTOR BRAKE VALVE
183
NUT ,B 884219
188
BALL SOCKET POWER CYLINDER
193
SECURING CLIP DUMPER PUMP, UP TO IDENT NO. 4 473926 FROM IDENT NO. MICROFICHE MODEL 714.0
197
INTERMEDIATE PIECE. ROD
200
PIN COMPRESSED AIR CYLINDER
202
WASHER , Replaced By: N000125008443
206
COTTER PIN PULL ROD TO SHIFTING SHAFT
208
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
210
NUT ,B 884219
999
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
LEVER , Replaced By: A3441407125
