Поз.
Артикул
Описание

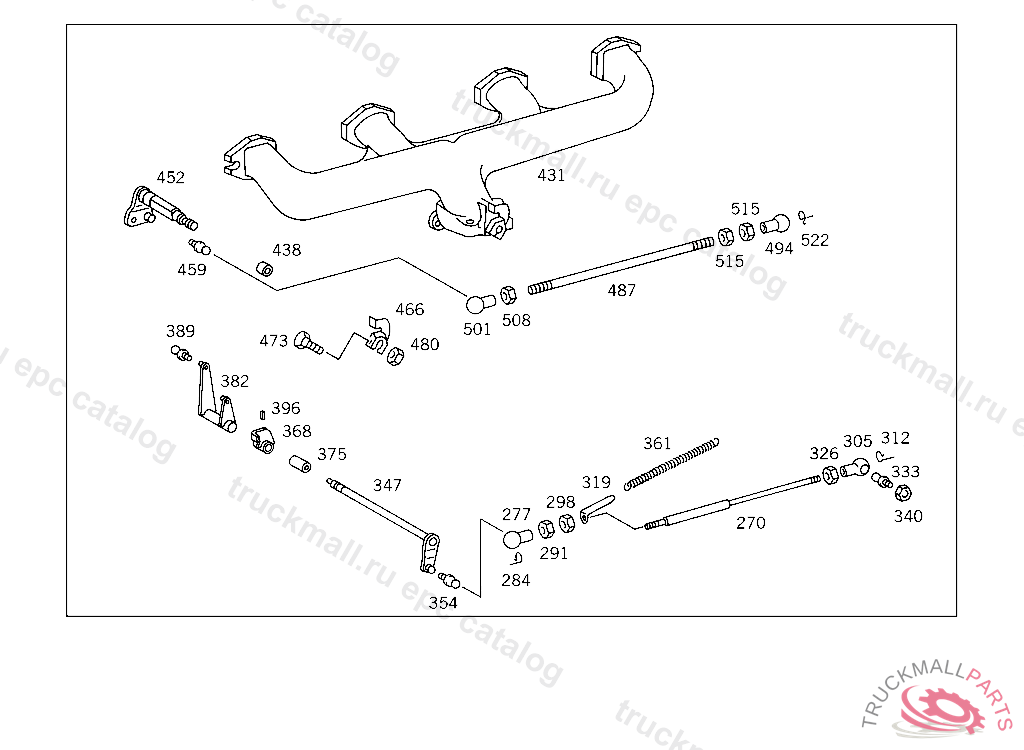

270
ROD CONTROL LEVER, WITH DIESEL ENGINE WITH OM 352 ENGINE
277
BALL SOCKET PULL ROD TO LEVER
284
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
291
NUT
298
NUT
305
BALL SOCKET AT CONTROL LEVER
312
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
319
BRACKET
326
NUT
333
BALL PIVOT
340
NUT
347
SHAFT INJECTION PUMP CONTROL
354
BALL PIVOT , Replaced By: A3129910120
361
SPRING INJECTION PUMP RESET
368
LEVER EXHAUST BRAKE CONTROL
375
SPACER TUBE EXHAUST PIPE TO BRACKET
375
SPACER TUBE CONTROL
382
LEVER
389
BALL PIVOT , Replaced By: A3129910120
396
CLAMPING SLEEVE INTERMEDIATE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
431
EXHAUST MANIFOLD
438
BUSHING THROTTLE VALVE SHAFT
452
SHAFT EXHAUST-BRAKE THROTTLE VALVE
459
BALL PIVOT
459
BALL PIVOT , Replaced By: A3129910120
466
LEVER
473
SCREW LEVER TO THROTTLE VALVE SHAFT
480
NUT
487
PULL ROD INJECTION PUMP CONTROL LOCK-OUT
494
BALL SOCKET PULL ROD TO LEVER
501
BALL SOCKET ACCELERATOR CONTROL
508
NUT FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
515
NUT
522
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
999
BALL PIVOT LEVER
999
INTERMEDIATE PIECE (ADAPTER), 314 342575 352 547156
999
SHAFT CONTROL, WITH DIESEL ENGINE
999
BRACKET
999
GUIDE TUBE , Replaced By: A3520184216
999
LEVER ACCELERATOR CONTROL
999
INTAKE PIPE , Replaced By: A3521340256
999
INTAKE PIPE FROM CYLINDER HEAD COVER TO AIR COMPRESSOR
999
VALVE EXHAUST BRAKE
999
LEVER
999
COVER OIL COOLER
999
FLANGE , 352 849318 353 849318 360 109917, Replaced By: A3522034239, +002N000125008418, +002N000931008322
999
INTERMEDIATE SHAFT
