Mercedes N304017008021 - АВТОЗАПЧАСТЬ

E 200 CDI 210.007 FROM MODELLJAHR CODE 800

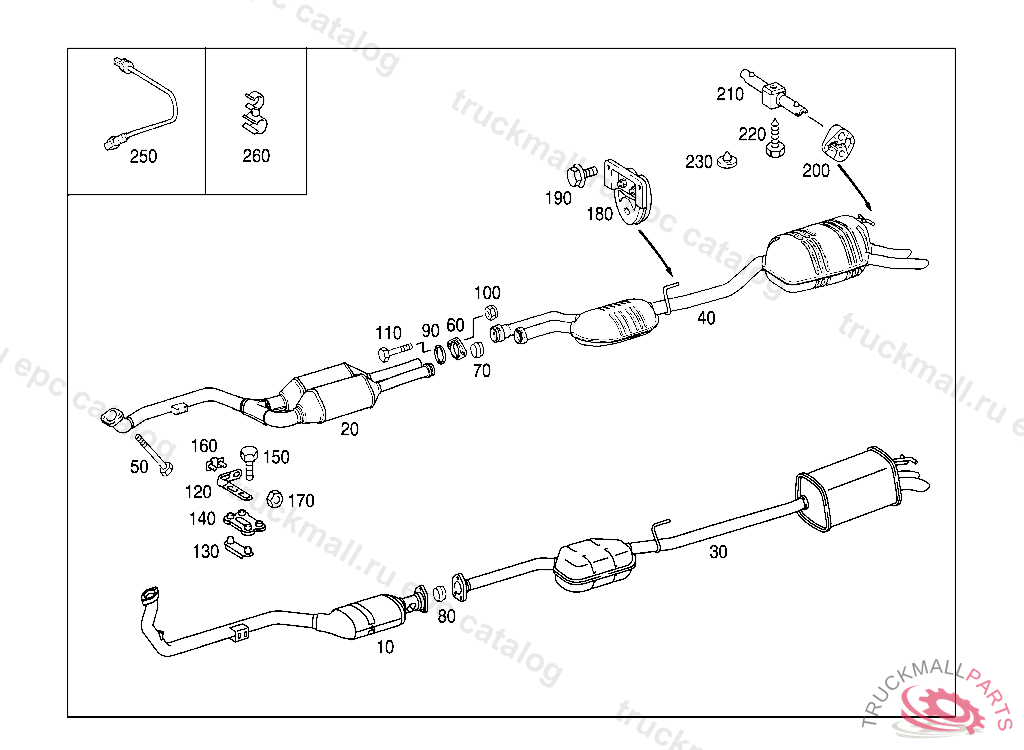

49 EXHAUST SYSTEM - 180 EXHAUST SYSTEM USED ON FOUR-CYLINDER GASOLINE VEHICLES
  • Поз.
    Артикул
    Описание
  • 130
    BASE PLATE FRONT EXHAUST PIPE TO TRANSMISSION
  • 140
    RUBBER PAD FRONT EXHAUST PIPE TO TRANSMISSION, FROM MODEL YEAR '96
  • 150
    SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
  • 160
    PLATE BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
  • 170
    COLLAR NUT F SHAFT FRONT EXHAUST PIPE TO TRANSMISSION
  • 180
    BRACKET CENTRAL MUFFLER SUSPENSION
  • 190
    SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
  • 200
    SUSPENSION RING REAR MUFFLER SUSPENSION
  • 210
    BRACKET REAR MUFFLER SUSPENSION
  • 220
    SCREW PIPE CLAMP
  • 230
    BUFFER REAR MUFFLER SUSPENSION
