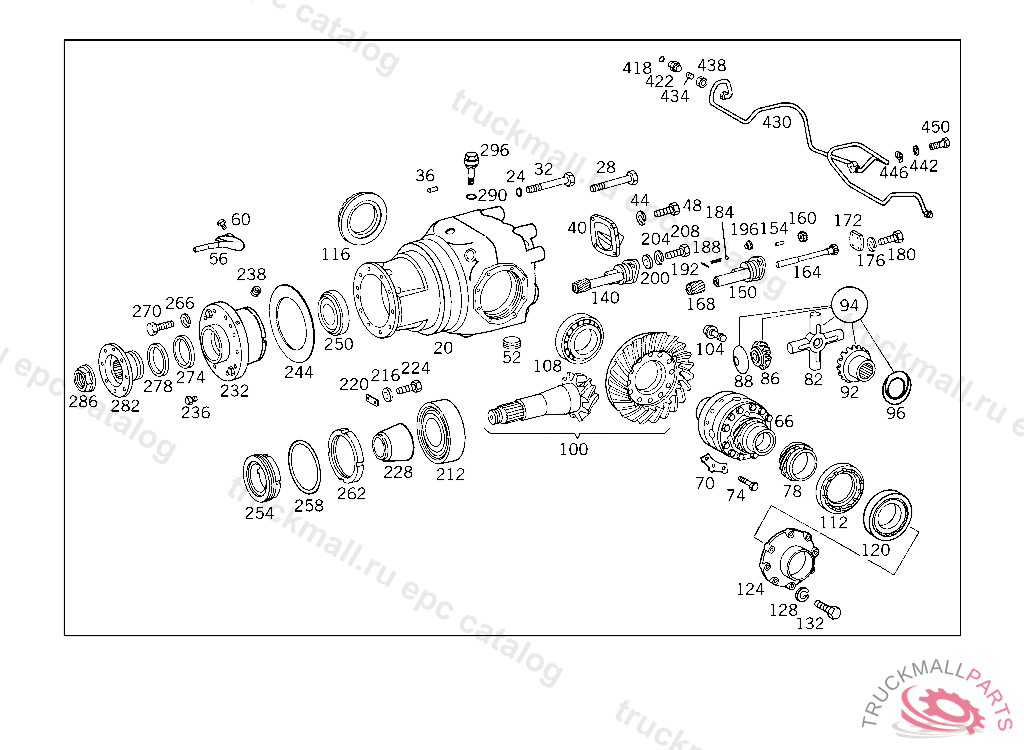

Поз.
Артикул
Описание
20
HOUSING ,040928
20
HOUSING ,040927, Replaced By: A3663500441, +001A1112600058, +001A3663530325
24
LOCK WASHERROCKINGER TYP 59 G140,59 G150
28
SCREW PISTON TO AIR-SPRING-BELLOWS SUPPORT,K 103333
32
SCREW FRONT AXLE II SHOCK ABSORBER,BOTTOM
36
CYLINDRICAL PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
36
CYLINDRICAL PIN
40
COVER
44
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
48
SCREW BRACKET TO SIDE MEMBER
52
PLUG
56
OIL COLLECTOR
60
SCREW , Replaced By: N304017008008
60
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
66
DIFFERENTIAL CASE , Replaced By: A3463506923
66
DIFFERENTIAL GEAR
70
LOCK
74
SCREW
78
GEAR
82
DIFFERENTIAL SPIDER
82
DIFFERENTIAL SPIDER
86
DIFFERENTIAL PINION , Replaced By: A3663530414
86
DIFFERENTIAL PINION
88
THRUST WASHER
92
SIDE GEAR
94
REPAIR KIT DIFFERENTIAL GEAR
96
THRUST WASHER
100
RING GEAR AND PINION RATIO: 28:11
104
SCREW
108
TAPERED ROLLER BEARING
112
SCREW COLLAR
116
SCREW COLLAR
120
TAPERED ROLLER BEARING LEFT
124
END PIECE
128
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
132
SCREW , Replaced By: N304017010002
132
SCREW BRACKET TO SIDE MEMBER
140
OIL PUMP , Replaced By: A3663500169
140
OIL PUMP
150
PUMP HOUSING ,55050
150
PUMP HOUSING ,03132455049, Replaced By: A3663500278, +001N007346002002
154
PIN GEAR
160
GEAR DRIVEN,031324
160
GEAR DRIVEN
164
GEAR DRIVING,55050
168
GEAR DRIVEN,55050
168
GEAR ,55049, Replaced By: A3633530068, +001A3663530469
172
COVER
176
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
180
SCREW COVER PLATE TO BRACKET
184
BALL SHIFTING CYLINDER
188
SPRING
192
CLAMPING SLEEVE ,55050
196
PLUG TAPPED HOLE IN SUPPORT
200
WASHER
204
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
208
SCREW END PIECE TO EXHAUST PIPE M 10X25
212
CYLINDR. ROLLER BEARING
216
LOCK CYLINDRICAL ROLLER BEARING OUTER RACE TO BEARING BODY
220
LOCK CYLINDRICAL ROLLER BEARING OUTER RACE TO BEARING BODY
224
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
224
SCREW , Replaced By: N304017008016
228
SPACER BUSHING
236
SCREW
238
SCREW PLUG
244
SPACER WASHER AS REQUIRED 0.10 MM
244
SPACER WASHER AS REQUIRED 0.50 MM
244
SPACER WASHER , Replaced By: A3263530252
244
SPACER WASHER AS REQUIRED 0.50 MM
244
SPACER WASHER AS REQUIRED 1.00 MM
250
TAPERED ROLLER BEARING
250
TAPERED ROLLER BEARING PINION HOUSING
250
TAPERED ROLLER BEARING PINION HOUSING
250
TAPERED ROLLER BEARING
254
SET COLLAR
258
LOCK
262
NUT
266
LOCK WASHER FITTING TO BRACKET
270
SCREW CONSOLE TO SIDE MEMBER M 12X1.5X48, 10/20 UP TO CHASSIS 4 829901, 50/60 UP TO CHASSIS 4 899847
274
SEAL RING
278
SEAL RING
282
FLANGE
286
NUT PROPELLER SHAFT TO FOLLOWER FLANGE,5 091917
290
SEALING RING. SEAL RING OIL DRAIN
290
SEAL RING FUEL LINE TO FEED PUMP
296
VALVE , Replaced By: A3043500190
296
VALVE
296
BREATHER TRANSFER CASE
418
SEAL RING FUEL LINE TO FEED PUMP
422
FITTING
430
LINE
434
DOUBLE TAPER RING
438
NUT. UNION NUT LINE CONNECTION
442
SEAL RING FUEL LINE TO FEED PUMP
446
LOCK
450
HOLLOW SCREW
999
SCREW PLUG , UP TO REAR AXLE 051432
999
PUMP HOUSING ,55050
999
REAR AXLE , WHEN ORDERING INDICATE THE INSTALLED SPECIAL VERSIONS ESPECIALLY
999
GEAR , UP TO REAR AXLE 031323
999
BOOT
999
LOCK RING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
NUT BRACKET TO SIDE MEMBER
999
NUT BRAKE ANCHOR PLATE TO REAR AXLE
999
SCREW CLAMP TO 693 460 70 05,71 05
999
SCREW SUPPORT TO SUPPORT
999
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X60
999
SCREW , Replaced By: N000960016261
999
SCREW BRACKET TO REAR AXLE M 16X1.5X75
999
SCREW , Replaced By: N308676016014
999
SCREW BEARING BRACKET TO FRAME
999
WOODRUFF KEY BEARING BODY,6 900042
999
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
999
PLUG
999
LOOM TIE HAND PUMP
999
STRAP165 MM, UP TO CHASSIS 772045 EXCEPT FOR:500000-599999 ORDER BY THE METER
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
PLUG
