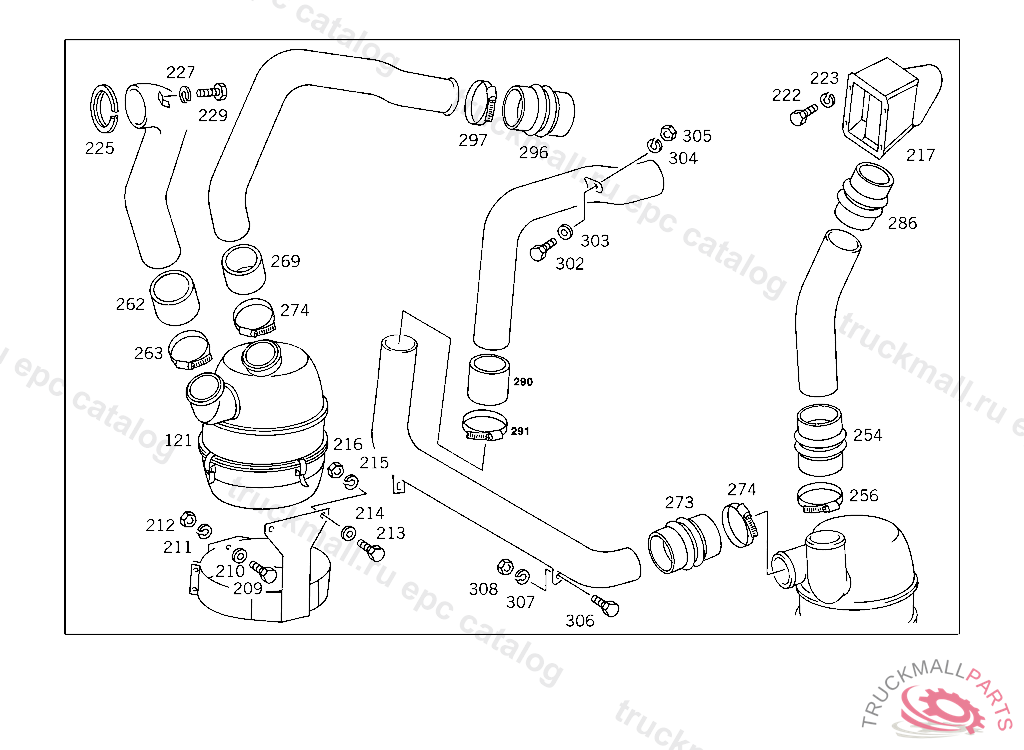

Поз.
Артикул
Описание
121
AIR CLEANER
209
SCREW PIPE CLAMP
209
SCREW , Replaced By: N304017008021
210
WASHER , Replaced By: N000125008443
210
WASHER EXHAUST MUFFLER TO STRAP
211
LOCK WASHER COVER PLATE AND BASE FRAME TO RADIATOR BLOCK
212
NUT
213
SCREW SHIFT LEVER TO TRANSMISSION
214
WASHER RADIATOR TO RUBBER MOUNTING
215
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
216
NUT BATTERY CABLE
216
NUT BRACKET TO SUPPORT AND TO END PIECE
217
AIR INTAKE CASE
222
SCREW BRACKET TO BEARING BRACKET
223
LOCK WASHER
225
RUBBER SECTION360MM, 10/50 FOR 972,20/60 FOR 980,983,988
227
SCREW LICENSE PLATE BRACKET
229
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
254
BOOT OIL BATH AIR CLEANER
256
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
256
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
256
CLAMP , Replaced By: A0059971490
262
HOSE
263
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
263
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
263
CLAMP , Replaced By: A0059971490
269
HOSE
273
BOOT
274
CLAMP , Replaced By: A0059972990
274
CLAMP , Replaced By: N000000000675
274
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
286
BOOT OIL BATH AIR CLEANER
290
HOSE TO OIL BATH AIR CLEANER
291
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
291
CLAMP , Replaced By: A0059972990
291
CLAMP , Replaced By: N000000000675
296
BOOT
297
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
297
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
297
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
297
CLAMP , Replaced By: A0059972990
297
CLAMP , Replaced By: N000000000675
297
CLAMP , Replaced By: A0059971490
302
SCREW , Replaced By: N304017008021
302
SCREW PIPE CLAMP
303
WASHER , Replaced By: N000125008443
303
WASHER EXHAUST MUFFLER TO STRAP
304
LOCK WASHER COVER PLATE AND BASE FRAME TO RADIATOR BLOCK
305
NUT
306
SCREW PIPE CLAMP
306
SCREW , Replaced By: N304017008021
307
LOCK WASHER COVER PLATE AND BASE FRAME TO RADIATOR BLOCK
308
NUT
999
BREATHER SCREW. SCREW , Replaced By: A0000741771
999
NUT , Replaced By: A0004770072
999
FILTER
999
TIGHTENING NUT. NUT , Replaced By: A0004770873
999
SEALING RING. SEAL RING , Replaced By: A0004773580
999
DICHTRING. SEAL RING , Replaced By: N007603006100
999
AIR CLEANER
999
STRAINER
999
AIR INTAKE PIPE
999
STRAP
999
STRAP
999
AIR INTAKE PIPE
999
INTAKE PIPE
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
