Поз.
Артикул
Описание
5

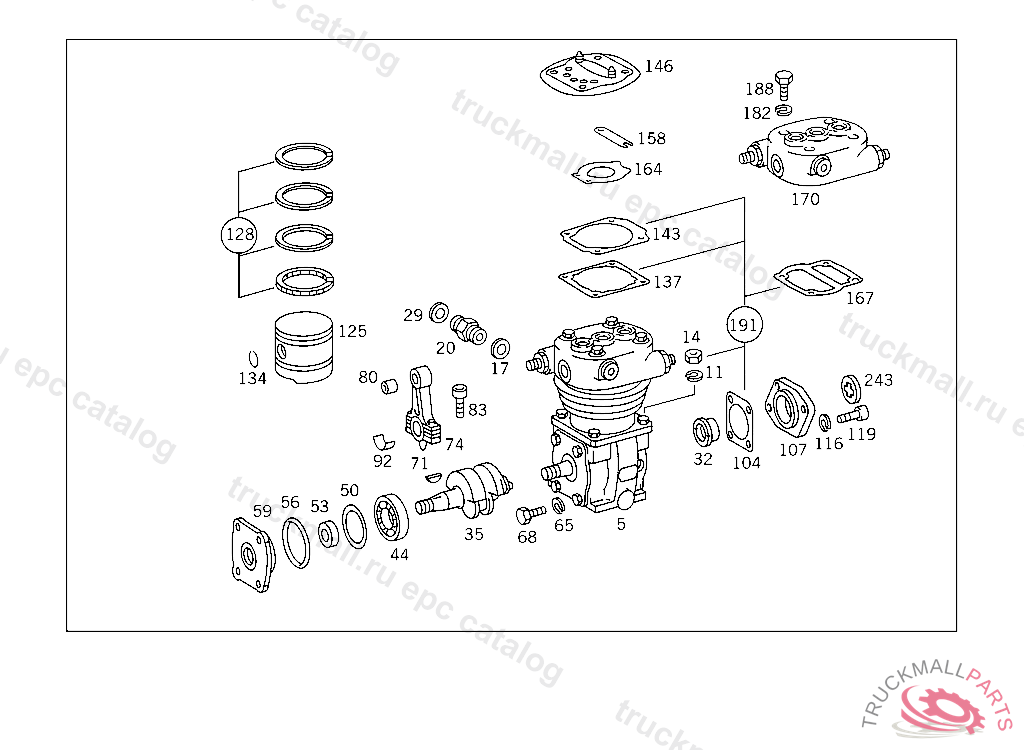

COMPRESSOR WITH CIRCULATING LUBRICATION, WATER-COOLED FA.KNORR
11
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
14
HEX. NUT. NUT FROM AIR SPRING VALVE TO REAR AXLE
17
SEAL RING RELAY VALVE,CONNECTION: "41"
20
SCREW FITTING AIR COMPRESSOR OIL FEED
29
SEAL RING SWITCH TO CASE COVER
32
BUSHING29.8 MM TO 002 131 36 01
32
BUSHING29.4 MM TO 002 131 36 01
35
CRANKSHAFT , Replaced By: A0001314116
35
CRANKSHAFT , Replaced By: A0001312316
35
CRANKSHAFT AIR COMPRESSOR TO 002 131 36 01
44
ROLLER BEARING CRANKSHAFT,FRONT TO 002 131 36 01
50
SPACER WASHER CRANKSHAFT BEARING CAP TO 002 131 36 01
53
RADIAL SEAL RING , Replaced By: A0109979946
56
SEALING CORD , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
59
BEARING CAP CRANKCASE,AIR COMPRESSOR TO 002 131 36 01
65
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
68
SCREW BRACKET TO AIR CLEANER CONSOLE
68
HEX. HEAD. SCREW FROM HOSE CONNECTION TO OIL COOLER
71
WOODRUFF KEY FLANGE TO SHIFTING TUBE
74
CONNECTING RODTO 002 131 36 01
80
BUSHINGTO 002 131 36 01
83
SCREW CONNECTOR TO CYLINDER HEAD M 8X25
92
BEARING SHELL REPAIR SIZE I TO 002 131 15 01
92
BEARING SHELL REPAIR SIZE II TO 002 131 15 01
92
BEARING SHELLTO 003 131 48 01,004 131 58 01
104
GASKET , Replaced By: A0011315280
107
SUPPORT , Replaced By: A0001310435
116
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL, Replaced By: N912006008000
119
SCREW BRACKET TO INTAKE MANIFOLD
125
PISTON REPAIR SIZE I TO 002 131 15 01
125
PISTONTO 002 131 36 01
125
PISTON REPAIR SIZE II TO 002 131 15 01
125
PISTONTO 001 131 52 01
125
PISTON , Replaced By: A0001301917
125
PISTON , Replaced By: A0001301817
128
REPAIR KIT , Replaced By: A3471310011
128
PISTON RINGTO 002 131 37 01
134
SNAP RINGTO 002 131 36 01
137
GASKET , Replaced By: A0011315380
137
GASKET
143
GASKET , Replaced By: A0011314480
146
VALVETO 002 131 36 01
146
VALVE , Replaced By: A0001301920
158
VALVE DISC (PRESSURE VALVE) TO 002 131 36 01
158
VALVE DISC , Replaced By: A0001313831
164
VALVE DISC , Replaced By: A0001314631
164
VALVE DISC , Replaced By: A0001314631
167
GASKET , Replaced By: A0011317780
170
CYLINDER HEAD , Replaced By: A0001301819
182
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
188
HEX. HEAD. SCREW REAR COVER TO TRANSMISSION,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
188
SCREW STOP PLATE TO BELL HOUSING
191
GASKET KITTO 002 131 37 01
243
FOLLOWER , Replaced By: A0001320710
243
FOLLOWER POWER STEERING PUMP AT ENGINE
999
SEAL RING LINE CONNECTION
999
SEAL RINGTO 376 131 74 01
999
SEAL RING , Replaced By: N007603010110
999
LOCK RINGWABCO,5 433388
999
SEAL RING CRANKSHAFT SEALING,FRONT WABCO
999
SEAL RING BEARING CAP TO HOUSING TO 001 131 52 01
999
LOCK
999
GASKET , Replaced By: A0011317280
999
GASKET , Replaced By: A0011317180
999
GASKET , Replaced By: A0011317080
999
SPACER RINGTO 001 131 52 01
