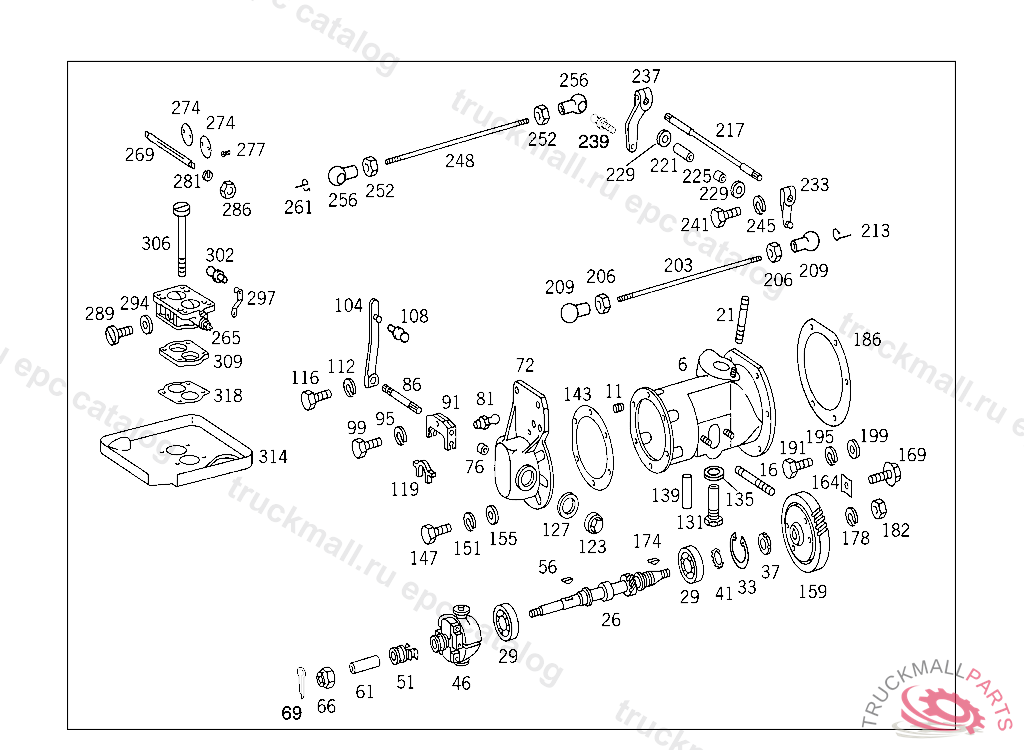

Поз.
Артикул
Описание
6
GOVERNOR HOUSING
11
THREADED INSERT
16
STUD , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
21
STUDM 6X12
26
SHAFT
29
GROOVED BALL BEARING
33
LOCK RING AS REQUIRED 1.75 MM
37
NUT TAPERED ROLLER BEARING TO PIN
41
LOCK PLATE , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
46
GOVERNOR
51
GOVERNOR SLEEVE
56
WOODRUFF KEY
61
SPACER TUBE
66
NUTTO 309 421 00 71,180280180281 SEE UNIT MICROFICHE,MODEL: 741.0
69
COTTER PIN BALL PIVOT TO STEERING ARM
72
COVER
76
BUSHING
81
GREASE NIPPLE
81
GREASE NIPPLE , Replaced By: N071412008102
86
SPINDLE
91
GOVERNOR FORK
95
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
99
SCREW LICENSE PLATE TO BRACKET
99
SCREW , Replaced By: N304017006020
104
CONTROL LEVER
108
BALL PIVOT
112
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
116
SCREW COVER PLATE TO BRACKET
119
SLIDE
123
SCREW PLUG OIL FILLING
123
SCREW PLUG STEERING BOX
127
SEAL RING OIL LINE TO OIL COOLER
131
HOLLOW SCREW
135
SEAL RING BREATHER LINE TO FUEL TANK
139
WICK
143
GASKET
147
SCREW CAB FLOOR COVERING M 6X25
147
SCREW APPARATUS PLATE M 6X45
147
SCREW , Replaced By: N304017006027
151
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
155
WASHER COMPRESSED AIR LINE TO BRACKET
155
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
159
DRIVE GEAR
164
LOCK
169
SCREW
174
WOODRUFF KEY
178
LOCK WASHER FITTING TO BRACKET
182
NUT CAB FLOOR
182
NUT , Replaced By: N308675012000
186
GASKET INJECTION PUMP TO TIMING CASE
191
SCREW CLAMP TO BRACKET AND TO PIPE
191
SCREW PIPE CLAMP
191
SCREW , Replaced By: N304017008021
195
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
199
WASHER EXHAUST MUFFLER TO STRAP
199
WASHER , Replaced By: N000125008443
203
PULL ROD
206
NUT IN CASE OF SUBSEQUENT INSTALLATION
206
NUT , Replaced By: N304032005005
209
BALL SOCKET ROD TO LEVER
213
CIRCLIP. SECURING CLIP CONTROL ROD
217
CONTROL SHAFT
221
SPACER TUBE
225
SPACER TUBE
229
WASHER
233
LEVER
237
LEVER
239
BALL PIVOT
241
SCREW BOOT TO BATTERY CASE
245
LOCK WASHER BRACKET TO STEERING COLUMN END
248
PULL ROD
252
NUT
256
BALL SOCKET ROD TO LEVER
261
CIRCLIP. SECURING CLIP CONTROL ROD
265
THROTTLE BODY
269
SHAFT
274
THROTTLE VALVE
277
SCREW
281
THRUST WASHER
286
NUT
289
SCREW TO PLUG THE FREE CONNECTIONS
294
SEAL RING
297
LEVER
302
BALL PIVOT
306
SCREWAM 6X45
309
INSULATING FLANGE
314
COVERING
318
GASKET
999
GOVERNOR
999
PULL ROD
999
PULL ROD
