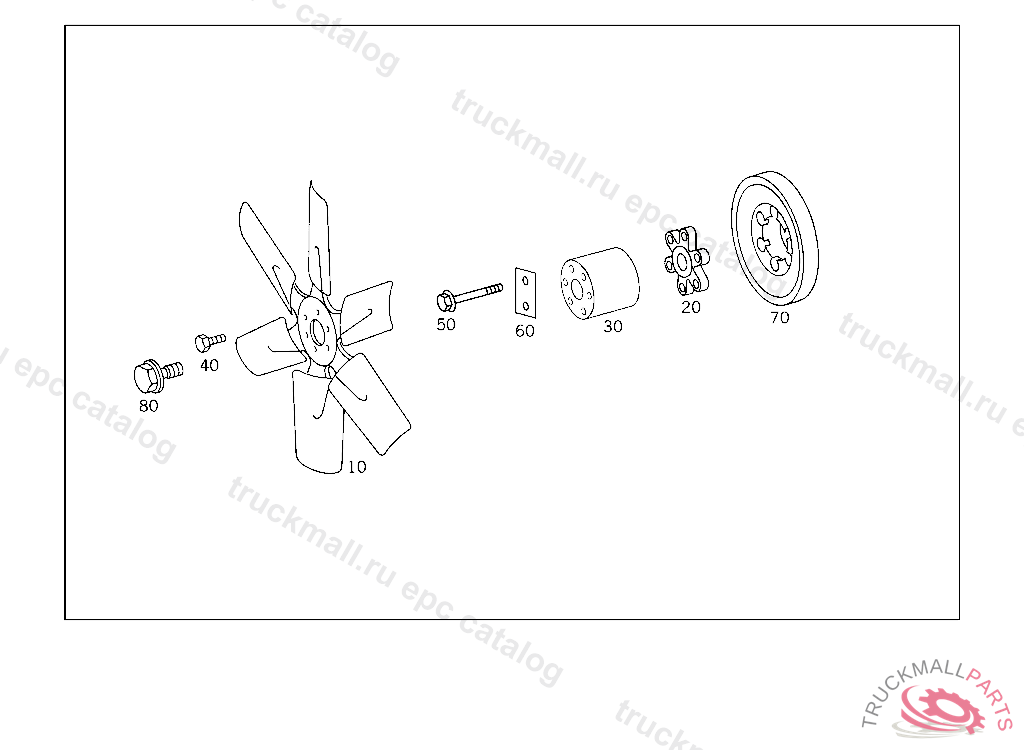

Поз.
Артикул
Описание
10
FAN SUCTION TYPE
10
FAN
10
FAN
10
FAN
10
FAN , Replaced By: A3522052406
20
HUB RING FAN
30
INTERMEDIATE PIECE
30
INTERMEDIATE PIECE
30
INTERMEDIATE PIECE
40
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
40
SCREW BRACKET TO APPARATUS SUPPORT
40
SCREW , Replaced By: N304017008027
40
SCREW , Replaced By: A0069909301
50
SCREW , Replaced By: N000933008134
50
SCREW VALVE TO BRACKET, Replaced By: N304014008002
50
SCREW PROPELLER SHAFT TO COUPLING FLANGE
50
SCREW FRONT AXLE REGULATING SOLENOID VALVE
50
SCREW VALVE TO BRACKET
60
LOCK
70
PULLEY ONE-GROOVE
80
SCREW VIBRATION ABSORBER TO CRANKSHAFT
999
BALANCING WEIGHT
999
SCREW CONNECTOR
999
SCREW RELAY VALVE TO BRACKET
999
NUT BALL PIVOT TO LEVER
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
