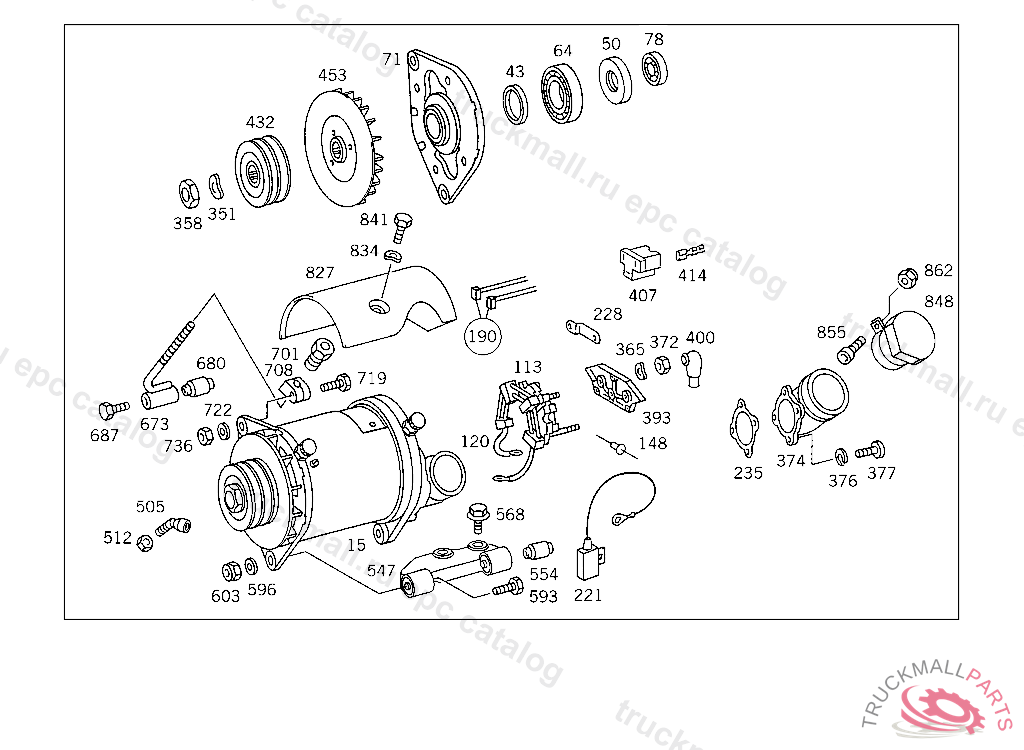

Поз.
Артикул
Описание
15
ALTERNATOR
43
SEAL RING , NOT USED
50
SEAL RING ,061991
50
SEAL RING
64
BALL BEARINGTO 005 154 32 02
64
BALL BEARING DRIVE END BEARING TO 008 154 31 02
64
BALL BEARING
64
GROOVED BALL BEARING DRIVE END BEARING 005 154 45 02/84 02
64
BALL BEARINGTO 007 154 27 02, 009 154 07 02
64
GROOVED BALL BEARING
64
GROOVED BALL BEARING LEFT ALTERNATOR MOUNTING,061991
64
GROOVED BALL BEARING
64
BALL BEARING , Replaced By: A0079816625
64
GROOVED BALL BEARING , Replaced By: N000625436303
71
COVERTO 004 154 79 02
78
BALL BEARING SLIP RING SIDE TO 008 154 31 02
78
BALL BEARING SLIP RING SIDE TO 007 154 81 02
78
BALL BEARING SLIP RING SIDE TO 004 154 25 02
78
BALL BEARINGTO 007 154 27 02, 009 154 07 02
78
CYLINDR. ROLLER BEARING
78
GROOVED BALL BEARING
78
GROOVED BALL BEARING SLIP RING SIDE TO 005 154 11 02
78
CYLINDR. ROLLER BEARING ,061991
78
BALL BEARINGTO 005 154 34 02
78
BALL BEARING
78
BALL BEARING , Replaced By: A0059813325
78
BALL BEARING , Replaced By: A0089811225
78
BALL BEARING SLIP RING SIDE
78
BALL BEARING , Replaced By: A0089814625
113
RECTIFIER , Replaced By: A0001549716
113
RECTIFIER , Replaced By: A0001549716
113
RECTIFIERTO 005 154 01 02
113
RECTIFIERTO 004 154 79 02
120
ELECTRIC CABLETO 004 154 79 02
148
DIODETO 005 154 01 02
148
DIODE
148
DIODE EXCITER TO 004 154 79 02
148
DIODETO 005 154 01 02
148
DIODE
148
DIODE , Replaced By: A0015481518
190
CARBON BRUSH SET , Replaced By: A0001548614
190
CARBON BRUSH SET , Replaced By: A0001548114
190
CARBON BRUSH SET , Replaced By: A0001545514
190
CARBON BRUSH SETTO 007 154 28 02,009 154 08 02
190
CARBON BRUSH SETTO 005 154 34 02
190
CARBON BRUSH SETTO 009 154 07 02
190
CARBON BRUSH SET
190
CARBON BRUSH SETTO 008 154 78 02
190
CARBON BRUSH SET ,600808
190
CARBON BRUSH SETTO 007 154 27 02
221
CONDENSERTO 004 154 75 02
221
CONDENSER , Replaced By: A0011566901
221
CONDENSER ,061991
228
CONTACT RAILTO 004 154 79 02
235
GASKETTO 004 154 79 02
235
GASKETTO 007 154 26 02
351
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
351
SPRING WASHER SHIFTING YOKE BEARING
358
NUT JOINT TO BRACKET
358
NUT RELEASE COLLAR LUBRICATION
358
NUT RELEASE BEARING LUBRICATION
358
NUT BRACKET TO SIDE MEMBER,K 035196
358
NUT SPRING SHACKLE TO SPRING REAR BRACKET
358
NUT , Replaced By: N308675014001
358
NUT , Replaced By: N308673014001
358
NUT , Replaced By: N308675014000
358
NUT , Replaced By: N308675014002
365
SPRING WASHER LICENSE PLATE TO BRACKET
365
SPRING WASHER HEATER PLUG CABLE HARNESS
372
NUT TACHOGRAPH TO BRACKET
372
NUT BALL PIVOT TO LEVER
374
PIPE SOCKETTO 004 154 13 02,049382
376
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
377
SCREW SHIFT CASE TO SLOTTED GATE
393
CONNECTOR
400
BOOT HEATER PLUGS
400
BOOTTO 003 154 39 02
400
BOOT POS. CABLE
407
PLUG 4-POLE,5 064562
407
PIN BUSHING HOUSING 3-POLE,4 483482
414
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
414
PLUG SOCKET , Replaced By: A0005453726
432
PULLEY , Replaced By: A0011551015
432
PULLEY TWO-GROOVE,208848/91, Replaced By: A0011555815
432
PULLEY TWO-GROOVE,061992
432
PULLEY TWO-GROOVE
432
PULLEY
432
BELT PULLEY F POLY-V BELT TWO-GROOVE,208848/91
432
PULLEY
453
FAN ,600808
453
FAN
505
CLAMPING BOLT (CLAMPING BOLT)
512
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
547
BRACKET ALTERNATOR
547
BRACKET ALTERNATOR
554
BUSHING
554
BUSHING
554
BUSHING
554
BUSHINGTO 366 150 06 73
554
BUSHINGTO 355 150 03 72,366 150 13 72
568
SCREW SUPPORTING ARM TO ENGINE
568
SCREW SUPPORT TO CYLINDER CRANKCASE M 14X1.5X115
568
SCREW SUPPORT TO CYLINDER CRANKCASE M 14X120
568
SCREW SUPPORT TO CYLINDER CRANKCASE M14X1.5X75
568
SCREW SUPPORT TO CYLINDER CRANKCASE
568
SCREW SUPPORT TO CYLINDER CRANKCASE M 14X95
568
SCREW ALTERNATOR SUPPORT TO CYLINDER CRANKCASE
593
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
593
BOLT. SCREW SUPPORT TO ALTERNATOR
593
SCREW SUPPORT TO ALTERNATOR TO 366 150 06 73
593
SCREW SHIFTING ROD TO SHIFT LEVER
593
SCREW EXHAUST PIPE AND THROTTLE HOUSING TO EXHAUST MANIFOLD
593
SCREW , Replaced By: A0019909404
593
SCREW STEERING SUPPORT TO FRAME M 10X75
593
SCREW , Replaced By: A0049906504
596
WASHER , Replaced By: A1403521376
596
WASHER , Replaced By: N000125008443
596
SPRING WASHER STEERING COLUMN BRACKET TO CAB
596
WASHER RADIATOR TO RUBBER MOUNTING
596
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
596
WASHER
596
WASHER EXHAUST MUFFLER TO STRAP
596
WASHER DUMPING PLATFORM MOUNTING
603
NUT BRACKET TO SIDE MEMBER M12X1.5
603
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
603
NUT CROSS MEMBER TO SIDE MEMBERS
603
NUT AIR CLEANER ELEMENT
603
NUT PLATFORM MOUNTING
603
NUT
603
PART NAME MISSING SUPPORT TO ALTERNATOR
603
NUT , Replaced By: N304032008006
673
CLAMPING BOLT , Replaced By: A3641500072
673
CLAMPING BOLT , Replaced By: A3661500872
673
CLAMPING BOLT , Replaced By: A3661500972
673
CLAMPING BOLT (CLAMPING BOLT)
673
CLAMPING BOLT (CLAMPING BOLT) TO 007 154 81 02,352 855103366 072447
673
CLAMPING BOLT (CLAMPING BOLT)
673
CLAMPING BOLT (CLAMPING BOLT)
673
CLAMPING BOLT
673
CLAMPING BOLT , Replaced By: A3551500372
673
CLAMPING BOLT (CLAMPING BOLT)
673
CLAMPING BOLT (CLAMPING BOLT)
673
CLAMPING BOLT (CLAMPING BOLT)
673
CLAMPING BOLT (CLAMPING BOLT)
680
BUSHING
680
BUSHING
680
BUSHINGTO 355 150 03 72,366 150 13 72
687
SCREW CLAMPING BOLT TO CYLINDER CRANKCASE M 10X38
687
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
687
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
687
SCREW MOUNTING AND RAIL TO LEAF SPRING
687
SCREW , Replaced By: N304017010035
687
SCREW BRACKET TO SIDE MEMBER M10X38
701
NUT TIGHTENER PULLEY TO LEVER
708
CLAMPING PIECE TIGHTENER PULLEY
708
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
719
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
719
SCREW , Replaced By: A0089908001
719
SCREW BRACKET TO FRAME
719
SCREW CLAMPING BOLT TO BRACKET
719
SCREW CLAMPING BOLT TO ALTERNATOR M 12X1.5X60
722
WASHER
722
WASHER DUMPING PLATFORM MOUNTING
722
WASHER EXHAUST MUFFLER TO STRAP
722
WASHER , Replaced By: A1403521376
722
WASHER , Replaced By: N000125008443
722
WASHER , Replaced By: N000433010510
722
WASHER VIBRATION ABSORBER TO BRACKET
736
NUT , Replaced By: N304032008006
736
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
736
NUT BRACKET TO SIDE MEMBER M12X1.5
736
NUT
736
NUT
827
SCREENING PLATE , UP TO ENGINE 528529 EXCEPT FOR SEE 526958-526960,526991-526996,527139,527190-527198,528000-528057.
827
COVER PLATE , FROM ENGINE 528530 ALSO INSTALLED ON 526958-526960,526991-526996,527139,527190-527198,528000-528057.578966
834
SPRING WASHER STEERING COLUMN BRACKET TO CAB
841
SCREW SCREENING PLATE TO ALTERNATOR M 10X1X12,027925
848
PROTECTIVE CAP GENERATOR INTAKE ELBOW
855
SCREW
855
SCREW , Replaced By: N000000000190
862
NUT SWITCH TO FLOOR PLATE
862
NUT , Replaced By: N913004008001
999
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
999
PIPE SOCKET , Replaced By: A4071540165
999
SCREW , Replaced By: A0009907721
999
FAN ALTERNATOR
999
FAN
999
FAN WITH PULLEY
999
BOOT , Replaced By: A0005463335
999
DIODE , Replaced By: A0015481418
999
LOCK WASHER
999
SCREW REGULATOR MOUNTING TO 009 154 07 02
999
SCREW SUPPORT TO CYLINDER CRANKCASE
999
SCREW , Replaced By: A0009907604
999
SCREW , Replaced By: A0009908321
999
RECTIFIERTO 009 154 08 02,008 154 78 02
999
FANTO 011 154 50 02
999
PLUG SOCKET , Replaced By: A0005453726
999
DIODE , Replaced By: A0015481518
999
SCREW , Replaced By: A0019902120
