Поз.
Артикул
Описание

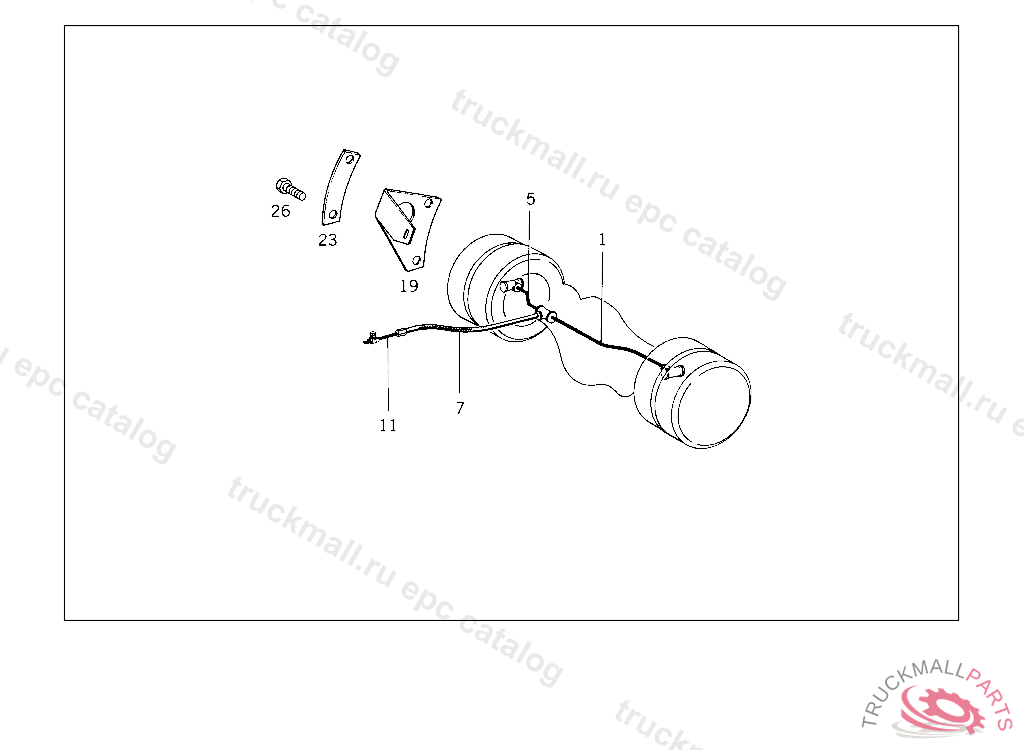

1
LINE FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE 800 MM,4 478330
1
LINE FROM BRAKE POWER REGULATOR,CONNECTION "2",TO BRAKE HOSE 1150 MM
5
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
5
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
7
LINE FROM DISTRIBUTOR TO VALVE 4200 MM,4 478330
7
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR 3800 MM,4 478329
7
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
7
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 2600 MM
7
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 2200 MM,4 478329
11
BRAKE HOSE AT REAR AXLE
11
BRAKE HOSE AT REAR AXLE
11
BRAKE HOSE AT REAR AXLE
11
BRAKE HOSE
11
BRAKE HOSE
11
BRAKE HOSE
19
BRACKET DISTRIBUTOR TO BRACKET
19
BRACKET DISTRIBUTOR TO BRACKET
23
SHIM BRACKET TO REAR AXLE HOUSING
26
SCREW SUPPORT TO CROSS MEMBER M 10X28
26
SCREW BRACKET TO SIDE MEMBER
26
SCREW , Replaced By: N304017010002
999
BRAKE HOSE
999
BRACKET BRAKE HOSE,REAR
999
LINE FROM TEST CONNECTION TO LEFT WHEEL CYLINDER 1350 MM,4 644237
999
SCREW , Replaced By: N304017008027
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
NUT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
