Mercedes N000931008136 - БОЛТ М8

OM 352 353.982

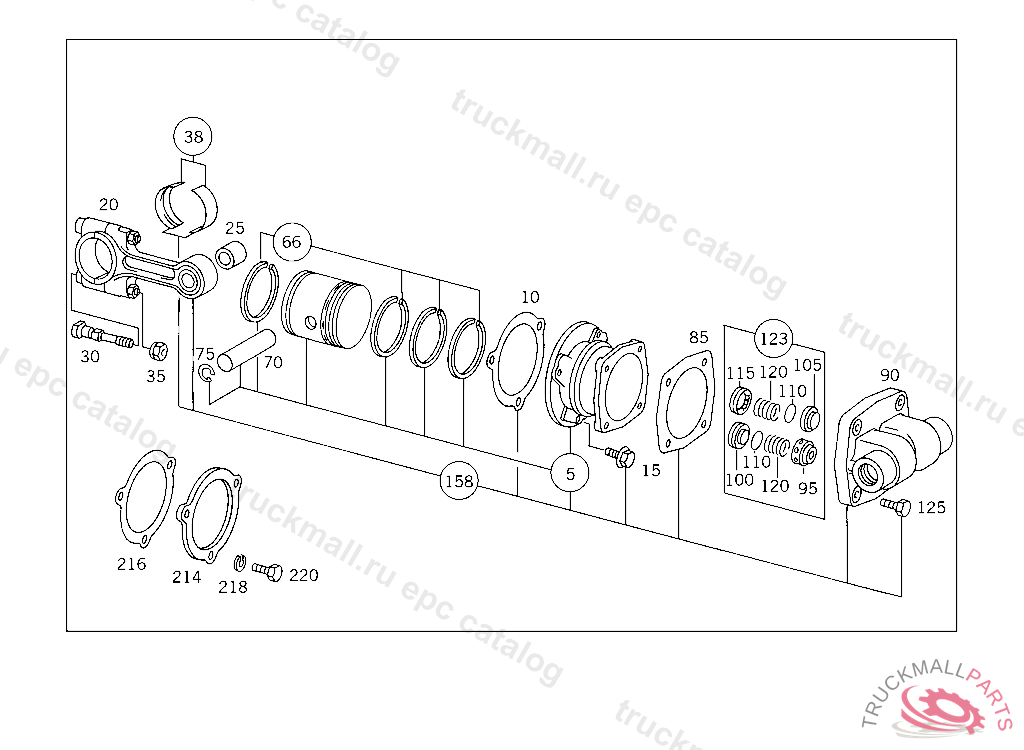

01 ENGINE HOUSING - 001 ENGINE HOUSING IL. 9

Поз.
Артикул
Описание
15
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
20
A3521300216
CONNECTING ROD ,082679
25
A3521310050
BUSHING ,082679
30
A3211310171
SCREW CONNECTING ROD COVER TO CONNECTING ROD, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
35
A3219900251
NUT
70
A3221310022
PISTON PIN
75
N000472016000
LOCK RING
125
N000931008136
SCREW BEARING BRACKET TO CAB M 8X30
125
A0009905104
SCREW CHARGING AIR ELBOW TO TURBOCHARGER
999
A3521310104
VALVE (PRESSURE VALVE)
999
A3521340053
SPACER TUBE ,050166
999
A3521340801
INTAKE PIPE ,050165
