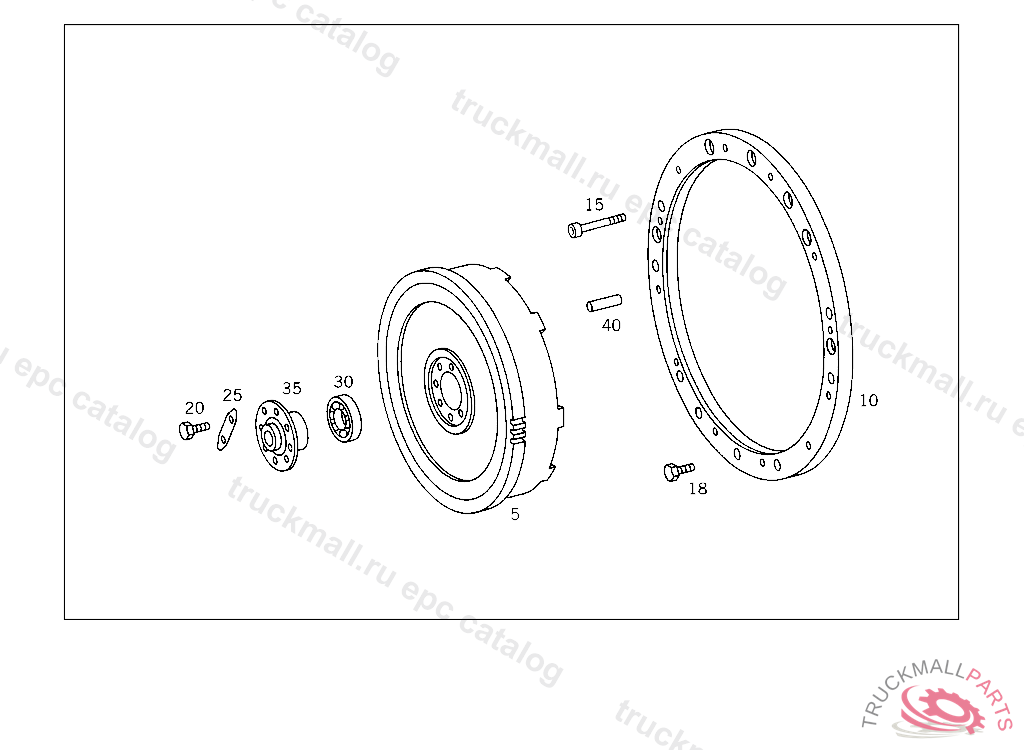

Поз.
Артикул
Описание
5
FLYWHEEL
5
FLYWHEEL
10
INTERMEDIATE RING
15
SCREW INTERMEDIATE RING TO CYLINDER CRANKCASE M16X35
18
SCREW
20
SCREW MOUNTING TO CONSOLE M 14X35
20
SCREW , Replaced By: N308676014008
25
LOCK
30
GROOVED BALL BEARING FLYWHEEL TO CRANKSHAFT
35
INTERMEDIATE RING
40
CYLINDRICAL PIN
999
INTERMEDIATE RING FLYWHEEL TO CRANKSHAFT
999
FLYWHEEL , Replaced By: A3460301705
999
SEAL HOLDER
999
FLYWHEEL , Replaced By: A3460301705
999
DOWEL PIN
999
FLYWHEEL , Replaced By: A3460300405
999
FLYWHEEL , Replaced By: A3460301605
999
SCREW , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3559901601
999
BALL BEARING. GROOVED BALL BEARING FAN DRIVE,D 276362
999
SCREW , Replaced By: N308676014003
