Поз.
Артикул
Описание

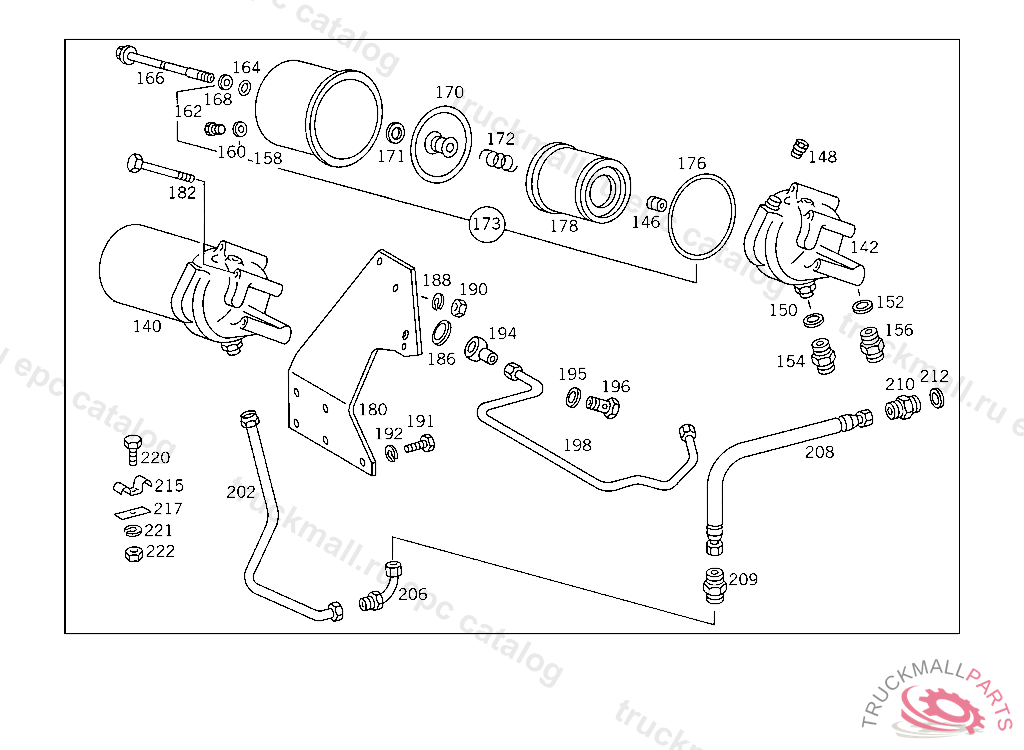

140
OIL FILTER
142
COVER
146
THREADED CHUCK
148
SCREW PLUG SHIFTING SHAFT DETENT
150
SEAL RING VALVE TO VALVE,K 025179
152
SEAL RING LINE CONNECTION
154
SCREW FITTING
156
SCREW FITTING
158
FILTER BOWL
160
SEAL RING VALVE TO VALVE,K 025179
162
SCREW PLUG SHIFTING SHAFT DETENT
164
GASKETTO 366 180 09 10
166
SCREW
166
SCREW , Replaced By: A4039900901
168
SEAL RING FROM FUEL TANK TO FUEL TANK
170
SPRING RETAINER , Replaced By: A3521800188
171
GASKET
172
SPRING
173
FILTER ELEMENT WITH GASKETS TO 327 180 05 10,352 180 05 10, ON INSTALLATION OF 000 180 07 09 OIL FILTER ELEMENT,ELIMINATE STRAINER SHELL AND LARGE SPRING ON SPRING RETAINER
176
GASKET FILTER HOUSING TO FILTER HEAD
178
FILTER ELEMENT UP TO A READING OF 1000 KM, TO BE USED ONLY ON GENERAL OVERHAUL OF ENGINE,SEE SERVICE INFORMATION B1/R AS PER 18.10.1971
180
BRACKET
182
SCREW BRACKET TO SHACKLE,4 114583
182
SCREW
186
SEAL RING
188
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
190
NUT BRACKET TO SUPPORT AND TO END PIECE
190
NUT BATTERY CABLE
191
SCREW BRACKET TO SIDE MEMBER M 12X40
191
SCREW CENTRAL BEARING M 12X45
192
LOCK WASHER FITTING TO BRACKET
194
BANJO UNION CONNECTING HOSE TO SPRING LOAD ACCUMULATOR
195
SEAL RING LINE CONNECTION
196
HOLLOW SCREW LINE CONNECTION
198
OIL LINE
202
OIL LINE
202
OIL LINE
206
PIPE ELBOW BETWEEN FILTER AND BRACKET
208
HOSE LINE
209
ADAPTER FITTING , 327.914/918/931/934/936/938/941/943/944 002828 360.915/939/946/961/965/972 002828 360.91000627
210
ADAPTER FITTING AIR COMPRESSOR CYLINDER HEAD
212
SEAL RING FUEL LINE TO FEED PUMP
215
CLAMP LINE MOUNTING
217
SHIM BRACKET TO LEFT SIDE MEMBER
220
SCREW LICENSE PLATE TO BRACKET
220
SCREW , Replaced By: N304017006020
221
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
222
NUT BALL PIVOT TO LEVER
999
ELBOW FITTING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3141800758
999
VALVE ,4 263013
999
THREADED CHUCKTO 014 140 01 01
999
HOUSING
999
PIPE
