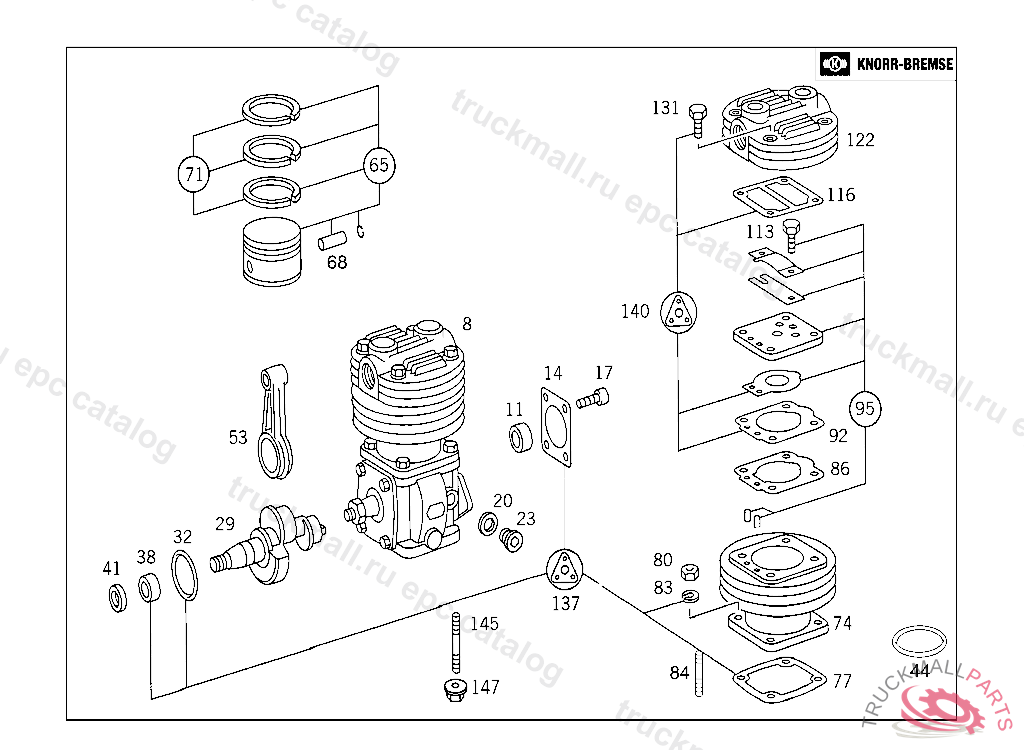

Поз.
Артикул
Описание
8
COMPRESSORKNORR 220CCM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
11
BUSHING CRANKSHAFT REAR BEARING TO 376 131 74 01
11
BUSHING CRANKSHAFT REAR BEARING TO 004 131 01 01
14
GASKETTO 376 131 74 01
17
SCREW STEERING SHAFT BEARING TO CAB
20
SEAL RING BRAKE CYLINDER STROKE INDICATOR
23
SCREW PLUG, FILLING HOUSING,BOTTOM
29
CRANKSHAFTTO 376 131 74 01
29
CRANKSHAFTWABCO
32
SEAL RING BEARING CAP TO HOUSING TO 001 131 52 01
32
SEAL RINGTO 376 131 74 01
38
BUSHINGTO 376 131 74 01
41
SEAL RING
41
SEAL RING CRANKSHAFT SEALING,FRONT WABCO
53
COMPRESSOR
53
CONNECTING ROD LESS BEARING SHELLS TO 376 131 74 01
53
CONNECTING RODTO 003 131 59 01
65
PISTONTO 376 131 74 01
65
PISTONTO 003 131 59 01
71
PISTON RING
71
PISTON RING PARTS KIT TO 003 131 59 01
74
CYLINDER LINERTO 003 131 97 01
80
NUT
83
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
83
LOCK WASHER BRAKE LINE TO REAR AXLE, NOT USED
86
GASKET CYLINDER HEAD TO CYLINDER LINER TO 376 131 74 01
86
GASKETWABCO
95
VALVE PARTS KIT TO 004 131 03 01
113
SCREW FEED LINE AND RETURN LINE
116
GASKETWABCO
116
GASKET VALVE DISC,CYLINDER COVER TO 002 131 36 01
122
CYLINDER HEADTO 004 131 01 01
122
CYLINDER HEADKNORR
131
SCREW VALVE TO BRACKET
131
SCREW VALVE TO BRACKET
137
GASKET KIT AIR COMPRESSOR TO 004 131 03 01
137
GASKET KIT AIR COMPRESSOR TO 003 131 59 01
140
GASKET KIT DISC VALVE TO 004 131 03 01
145
STUD BOLT AIR COMPRESSOR TO SUPPORT,238225/92
145
STUD BOLT BRACKET TO CROSS MEMBER
147
NUT ENGINE MOUNTING M8
