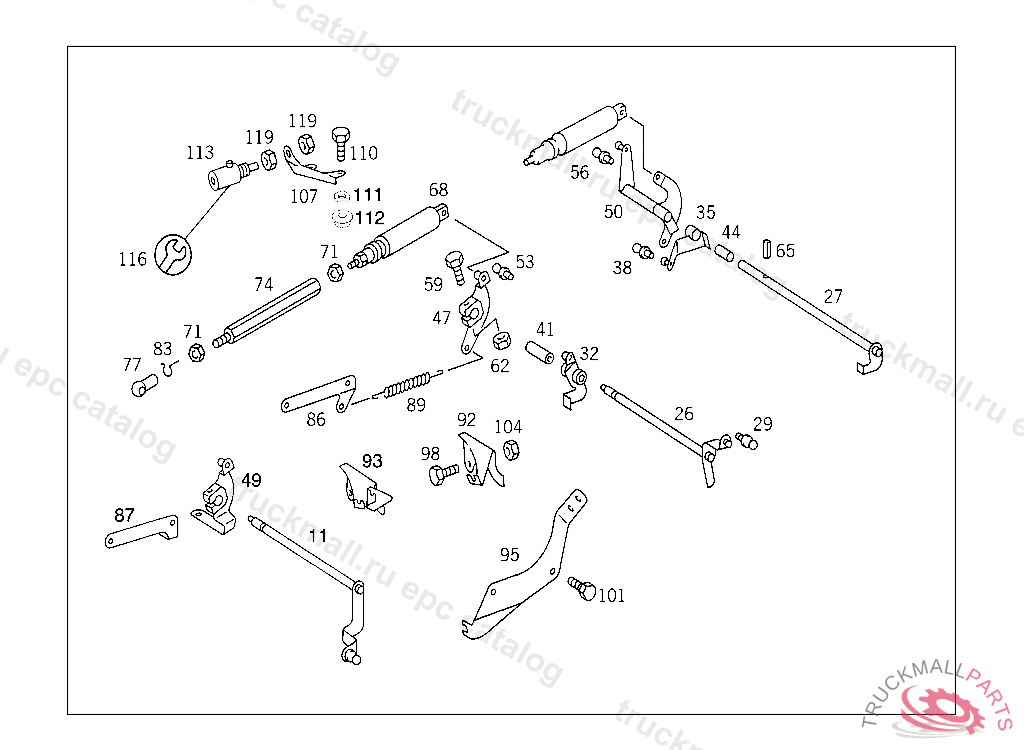

Поз.
Артикул
Описание
26
SHAFT (CONTROL SHAFT)
27
SHAFT (CONTROL SHAFT)
29
BALL PIVOT BOTTOM B13X5 MM
32
LEVER (DRAG LINK),CONTROL SHAFT
35
LEVER (DRAG LINK),CONTROL SHAFT
38
BALL PIVOT LEVER
38
BALL PIVOT , Replaced By: A3129910120
41
SPACER TUBE , Replaced By: A3210720053
41
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
44
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
47
LEVER (DRAG LINK),CONTROL SHAFT
50
LEVER (CONTROL LEVER),INJECTION PUMP
53
BALL PIVOT LEVER
53
BALL PIVOT , Replaced By: A3129910120
56
BALL PIVOT
59
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
59
SCREW , Replaced By: N000000001479
62
NUT , Replaced By: N913023006001
62
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
65
CLAMPING SLEEVE INTERMEDIATE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
68
CYLINDER CONTROL
68
CYLINDER CONTROL
71
NUT , Replaced By: A0009900851
71
NUT
74
ROD
77
BALL SOCKET
83
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
86
BRACKET RELEASE SPRING
89
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
92
BRACKET IDLING ADJUSTMENT
95
BRACKET IDLING CONTROL
98
SCREW BRACKET TO ENGINE
101
SCREW , Replaced By: N304017008016
101
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
104
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
107
BRACKET IDLING SPEED STOP CYLINDER
110
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
111
SPRING WASHER LICENSE PLATE TO BRACKET
112
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
112
NUT , Replaced By: N913023006001
113
CYLINDER , Replaced By: A0000723212
113
CYLINDER TORQUE REDUCER BOSCH
116
REPAIR KITTO 000 070 17 83
119
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
