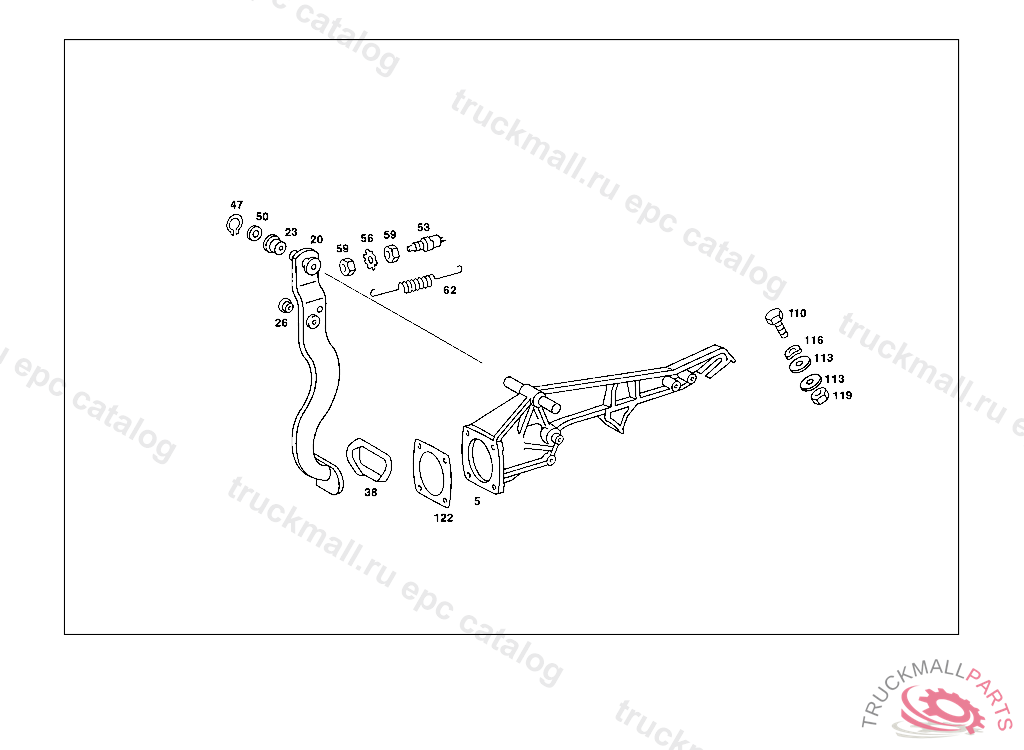

Поз.
Артикул
Описание
5
BEARING BRACKET , FROM CHASSIS: 024 136352 033 090506 036 005863 120 007854
5
BEARING , Replaced By: A1072900119, +001A1232910186, +001A1249931310
20
PEDAL
23
BUSHING , Replaced By: A1242920050
23
BUSHING BRAKE PEDAL
26
BUSHING
38
PAD BRAKE PEDAL
47
LOCK RING , Replaced By: A0079942041
50
WASHER PEDALS TO PIVOT PINS
53
SWITCH STOP LIGHT
56
TOOTHED WASHER STOP LIGHT SWITCH TO PEDAL BEARING BRACKET
59
NUT SWITCH
62
SPRING
110
SCREW OIL LINE TO CRANKCASE
113
WASHER COMPRESSED AIR LINE TO BRACKET
113
WASHER , Replaced By: N009021006208
116
SPRING WASHER LICENSE PLATE TO BRACKET
119
NUT BATTERY MOUNTING
119
NUT CYLINDER TO BRACKET TO0002902112
122
GASKET
