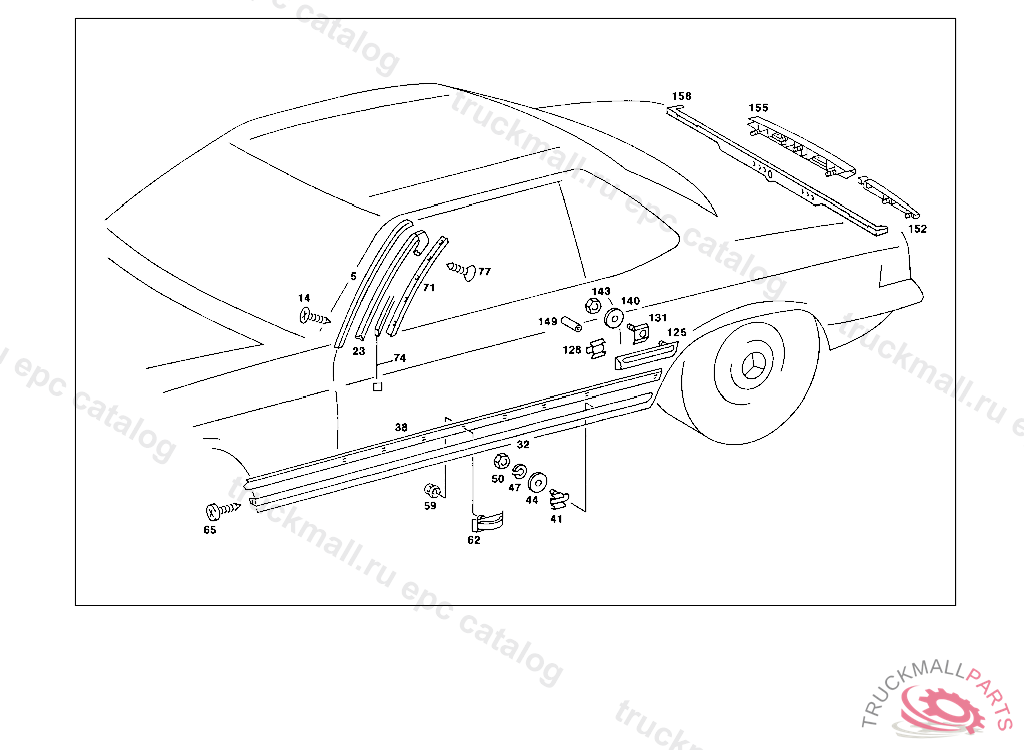

Поз.
Артикул
Описание
5
DRIP MOULDING LEFT
5
DRIP MOULDING RIGHT
14
SHEET METAL SCREW
14
SHEET METAL SCREW , Replaced By: N007982003238
23
PAD RIGHT
23
PAD LEFT
32
GARNISH MOULDING RIGHT
32
GARNISH MOULDING LEFT
38
PAD LEFT
38
PAD RIGHT
41
SCREW
44
WASHER COVERING TO CYCLONE AIR TRAP
44
WASHER , Replaced By: N009021004207
47
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
47
LOCK WASHER T-FITTING TO BRACKET
50
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
59
FASTENER BUTTON LOWER PART, ON SIDE MEMBER
62
FASTENER BUTTON
65
SHEET METAL SCREW
71
GARNISH MOULDING RIGHT FRONT PANEL PILLAR
71
GARNISH MOULDING LEFT FRONT PANEL PILLAR
74
SEAL DRIP MOULDING
74
ADHESIVE TAPE , Replaced By: A1076980997
74
PAD , Replaced By: A1266980698
74
SEAL , Replaced By: A1266981898
74
SEAL , Replaced By: A1266980598
77
SHEET METAL SCREW
77
SHEET METAL SCREW COVERING TO HOUSING
125
GARNISH MOULDING RIGHT
125
GARNISH MOULDING LEFT
128
CLIP
131
SCREW
140
WASHER COVERING TO CYCLONE AIR TRAP
140
WASHER , Replaced By: N009021004207
143
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
149
INSULATING HOSE4 X 0.5 MM, ORDER BY THE METER
152
GARNISH MOULDING RIGHT
152
GARNISH MOULDING LEFT
155
GARNISH MOULDING , STANDARD VERSION FROM CHASSIS 022 006132 023 012983 024 024514 026 000428 042 005114 043 014030 044 051686 CENTRAL LOCKING MECHANISM FROM CHASSIS 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
158
PAD
