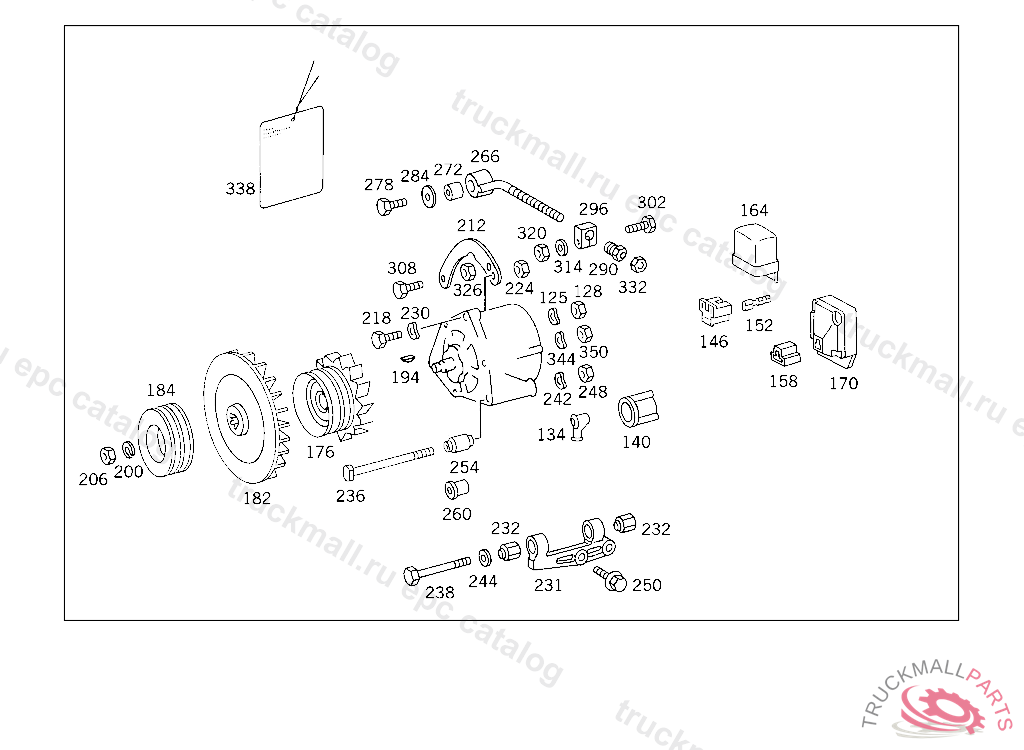

Поз.
Артикул
Описание
125
SPRING WASHER ALTERNATOR CONNECTION W
125
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
125
SPRING WASHER HEATER PLUG CABLE HARNESS
125
SPRING WASHER , Replaced By: N000137008212
128
NUT , Replaced By: N304032008006
128
NUT BALL PIVOT TO LEVER
128
NUT TACHOGRAPH TO BRACKET
128
NUT
134
BOOT HEATER PLUGS
140
BOOTTO 003 154 39 02
146
PIN BUSHING HOUSING 3-POLE,4 483482
152
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
158
PLUG 4-POLE,5 064562
164
REGULATOR AND CUT-OUT ,4 477130
164
REGULATOR AND CUT-OUT , Replaced By: A3455477002
170
REGULATOR AND CUT-OUT TRANSISTOR,4 483482
176
FANTO 344 154 71 02
176
FAN WITH PULLEY
176
FANTO 005 154 34 02,007 154 27 02/07 02,208848/91
176
FAN FAN TWO-GROOVE V-BELT PULLEY TO 006 154 24 02
176
FAN ALTERNATOR
176
FAN , Replaced By: A0001558518
182
FAN , Replaced By: A0001558518
182
FAN ALTERNATOR
184
BELT PULLEY F POLY-V BELT TWO-GROOVE,208848/91
184
ALTERNATOR TWO-GROOVE
184
PULLEY , Replaced By: A0011551015
184
PULLEY TWO-GROOVE,208848/91, Replaced By: A0011555815
194
WOODRUFF KEY POWER STEERING PUMP
200
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
206
NUT , Replaced By: N308673014001
206
NUT BRACKET TO SIDE MEMBER,K 035196
212
BRACKET ALTERNATOR
212
BRACKET ALTERNATOR
212
BRACKET CLAMPING BOLT TO ALTERNATOR
218
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
218
SCREW BRACKET TO APPARATUS SUPPORT
218
SCREW , Replaced By: A0069909301
224
NUT STRAP TO SUPPORT
230
SPRING WASHER CAB FLOOR
230
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
230
SPRING WASHER , Replaced By: N000137008212
231
SUPPORT ALTERNATOR
232
BUSHINGTO 366 150 06 73
232
BUSHINGTO 355 150 03 72,366 150 13 72
236
SCREW SUPPORT TO ALTERNATOR TO 366 150 06 73
236
SCREW ALTERNATOR MOUNTING
236
SCREW , Replaced By: A0049906504
236
SCREW BRACKET TO ALTERNATOR
238
SCREW , Replaced By: A0049906504
238
SCREW SUPPORT TO ALTERNATOR TO 366 150 06 73
242
WASHER RADIATOR TO RUBBER MOUNTING
242
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
242
WASHER EXHAUST MUFFLER TO STRAP
242
WASHER , Replaced By: N000125008443
244
WASHER RADIATOR TO RUBBER MOUNTING
248
NUT AIR CLEANER ELEMENT
248
NUT SHIFTING TUBE TO TRANSMISSION
250
SCREW BRACKET MOUNTING
250
SCREW SUPPORT TO CYLINDER CRANKCASE
250
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
250
SCREW , Replaced By: A0049906804
254
BUSHING
260
BUSHING ALTERNATOR MOUNTING FOOT TO 005 154 33 02
266
CLAMPING BOLT (CLAMPING BOLT)
266
CLAMPING BOLT (CLAMPING BOLT)
266
CLAMPING BOLT FOR V-BELT TENSIONING
266
CLAMPING BOLT (CLAMPING BOLT)
266
CLAMPING BOLT COMPLETE
266
CLAMPING BOLT , Replaced By: A3641500072
266
CLAMPING BOLT , Replaced By: A3661500872
266
CLAMPING BOLT (CLAMPING BOLT)
272
BUSHINGTO 355 150 03 72,366 150 13 72
272
BUSHING
272
BUSHING
278
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
278
SCREW CONNECTOR TO REAR SHIFTING ROD
278
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
278
SCREW , Replaced By: N304017010035
278
SCREW EXHAUST PIPE TO BRACKET
278
SCREW , Replaced By: N304017010047
284
SPACER WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
290
NUT TIGHTENER PULLEY TO LEVER
296
CLAMPING PIECE TIGHTENER PULLEY
296
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
302
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
302
SCREW CLAMPING BOLT TO ALTERNATOR M 12X1.5X60
302
SCREW MOUNTING PLATE,SHOCK ABSORBER CROSS MEMBER & SHIM TO FRAME SIDE MEMBER M 12X45
308
SCREW BRACKET TO CROSS MEMBER
314
WASHER
320
NUT
320
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
320
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
326
NUT , Replaced By: N308675012000
326
NUT CAB FLOOR
332
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
338
TAG
344
SPRING WASHER CLAMP MOUNTING,4 478001
350
NUT IN CASE OF SUBSEQUENT INSTALLATION
350
NUT , Replaced By: N304032005005
999
SPRING , Replaced By: A0001541393
999
GASKETTO 007 154 26 02
999
SPRINGTO 004 154 75 02
999
SPRING , Replaced By: A0001541193
999
SPRING , Replaced By: A0001541193
999
CARBON BRUSH SET , Replaced By: A0001545514
999
FAN , NOT USED
999
FAN
999
FAN
999
BOOT , Replaced By: A0005463335
999
DIODE , Replaced By: A0015480018
999
DIODE , Replaced By: A0005487918
999
DIODE , Replaced By: A0005485018
999
DIODE CARRIER , Replaced By: A0005486518
999
DIODE , Replaced By: A0015481018
999
DIODE , Replaced By: A0005489818
999
DIODE , Replaced By: A0015480018
999
DIODE , Replaced By: A0015481118
999
DIODE , Replaced By: A0015481418
999
PULLEY , Replaced By: A0011551015
999
PULLEY TWO-GROOVE,208848/91, Replaced By: A0011555815
999
PLUG SOCKET , Replaced By: A0005453726
999
DECALCOMANIA , Replaced By: A3525840008
999
SCREW , Replaced By: A0009907121
999
SCREW , Replaced By: A0019902120
999
ALTERNATOR , Replaced By: A0031547502
999
ALTERNATOR
999
ALTERNATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 352 855102 366 072446, Replaced By: A0071548102, +001A0001557118
999
ALTERNATOR
999
ALTERNATOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0051543102
999
V-BELT ALTERNATOR 12.5X1000 MM
999
BALL BEARING , Replaced By: A0059812225
999
ALTERNATOR , MB PART NO.003 154 81 02BOSCH PART NO. 0 120 400 754 MB PART NO.005 154 11 02BOSCH PART NO. 0 120 400 877 MB PART NO.005 154 34 02BOSCH PART NO. 0 120 469 518 MB PART NO.007 154 27 02BOSCH PART NO. 0 120 469 686, Replaced By: A0051543402
999
ALTERNATOR , MB PART NO.003 154 39 02BOSCH PART NO. 0 120 400 700 MB PART NO.005 154 29 02BOSCH PART NO. 0 120 489 723 MB PART NO.005 154 33 02BOSCH PART NO. 0 120 489 725, Replaced By: A0051543302
999
ALTERNATOR , Replaced By: A0051545102
999
ALTERNATOR , Replaced By: A0071542702
999
ALTERNATOR , Replaced By: A0051548302
999
ALTERNATOR
999
ALTERNATOR , Replaced By: A0071542402
999
CLAMPING BOLT , Replaced By: A4031500572
999
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
999
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
999
NUT ALTERNATOR
999
PULLEY , Replaced By: A0001557218
999
WASHER CLAMPING BOLT TO CYLINDER CRANKCASE
999
PULLEY ONE-GROOVE
