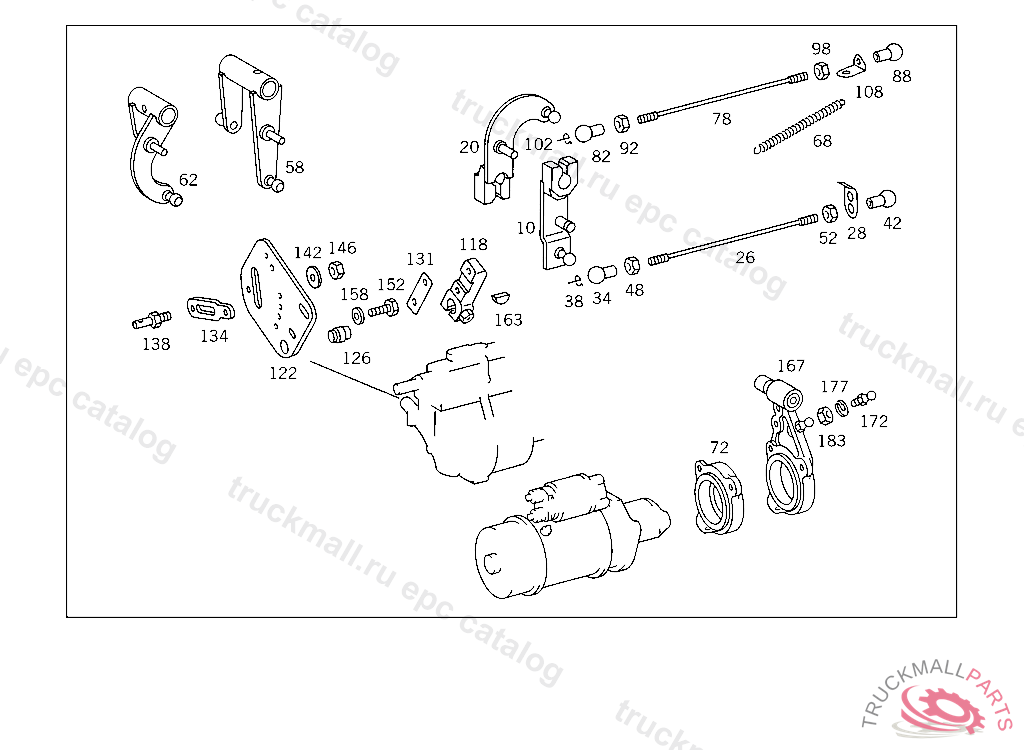

Поз.
Артикул
Описание
10
LEVER CONTROL LEVER
10
LEVER , Replaced By: A3530700221
20
LEVER CONTROL LEVER
26
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
26
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
26
ROD ,283201, Replaced By: N900331006629, +001A3140721040, +001A0009912422, +002N000934006007, +001N000934006012, +001N071805010205, +002N071805010403
26
ROD ,283202, Replaced By: N900331006629, +001A0009912422, +001N000934006012, +001N071805010205, +002N075805010403
26
ROD , Replaced By: A3141401246
26
ROD , Replaced By: N900331006630, +001A0009912422, +002N000934006007, +001N000934006012, +001N071805010205, +002N071805010403
26
ROD , Replaced By: A3521401246
26
ROD , Replaced By: A3521401046
26
ROD , Replaced By: A3521401146
26
ROD , Replaced By: A3521401246
26
ROD ,519630, Replaced By: N900331006630, +001A0009912422, +002N000934006007, +001N000934006012, +001N071805010205, +002N071805010403
26
ROD , Replaced By: N900331006630, +001A0009912422, +002N000934006007, +001N000934006012, +001N071805010205, +002N071805010403
26
ROD , Replaced By: N900331006630, +001A0009912422, +002N000934006007, +001N000934006012, +001N071805010205, +002N071805010403
28
BRACKET ACCELERATOR CONTROL LINKAGE RELEASE SPRING
34
BALL SOCKET ACCELERATOR CONTROL
38
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
42
BALL SOCKET PULL ROD TO LEVER
48
NUT BALL PIVOT TO LEVER
52
NUT L.H. THREAD
58
LEVER CONTROL LEVER TO INJECTION PUMP
62
LEVER CONTROL LEVER TO INJECTION PUMP
68
SPRING CONTROL SHAFT,5 005403
68
SPRING , Replaced By: A3529931910
72
INTERMEDIATE PIECE STARTING MOTOR INTERMEDIATE FLANGE
78
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
78
ROD , Replaced By: N900331006630, +001A3520721540, +001A0009912422, +002N000934006007, +001N000934006012, +001N071805010205, +002N071805010403
82
BALL SOCKET PULL ROD TO LEVER
88
BALL SOCKET ACCELERATOR CONTROL
92
NUT BALL PIVOT TO LEVER
98
NUT L.H. THREAD
102
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
108
BRACKET
118
LEVER LOAD CONTROL
122
LEVER (CONTROL LEVER),INJECTION PUMP
126
GUIDE
131
SHIM
131
BRACKET
131
SHACKLE , Replaced By: A4164210394
134
LEVER
138
PIVOT PIN
142
WASHER COVERING TO CAB
142
WASHER COMPRESSED AIR LINE TO BRACKET
146
NUT SPRING-LOADED PUSH ROD
152
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
158
WASHER HEAT SHIELD TO BRACKET
163
WOODRUFF KEY INJECTION PUMP
167
FLANGE STARTING MOTOR INTERMEDIATE FLANGE
172
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
177
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
177
SPRING WASHER , Replaced By: N000137008212
183
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
ROD
999
LEVER
999
ROD
999
BRACKET SHIFT CASE
999
ROD
999
ROD
999
LEVER
999
LEVER (CONTROL LEVER), WITH DIESEL ENGINE
999
ROD
999
LEVER CONTROL LEVER TO CONTROL SHAFT
999
INTERMEDIATE PIECE STARTING MOTOR INTERMEDIATE FLANGE
999
SCREW SUPPORT TO SIDE MEMBER M 10X65,B 884219
999
NUT , Replaced By: N913023006001
999
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
