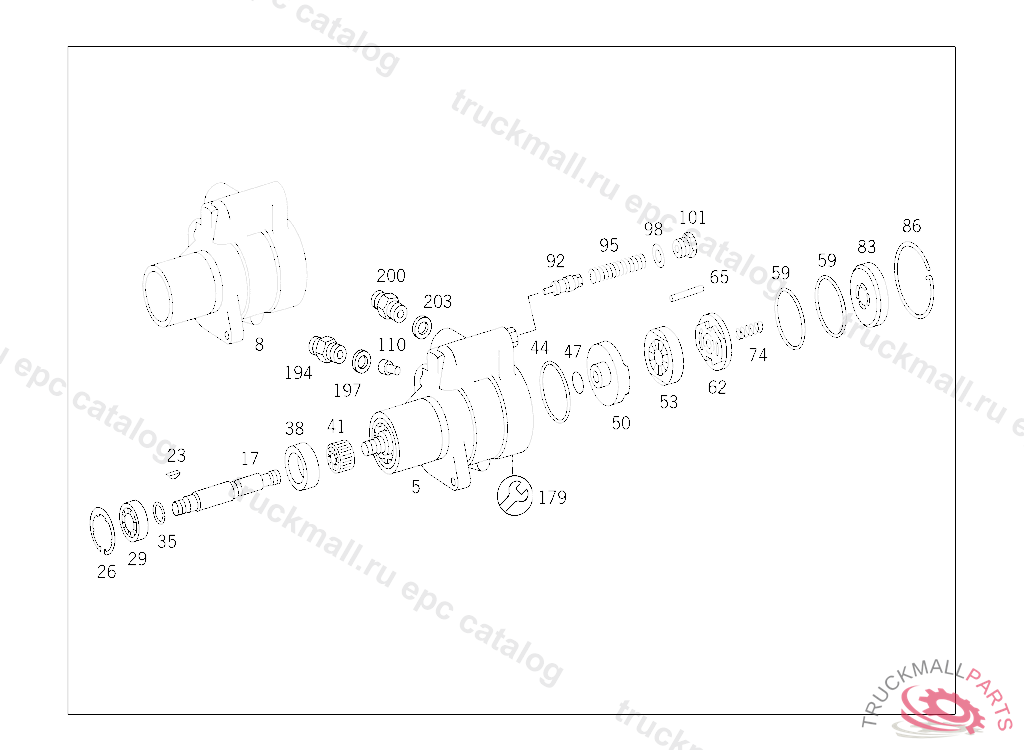

Поз.
Артикул
Описание
5
HYDRAULIC PUMP
8
HOUSING
17
DRIVE SHAFT
23
KEY
26
LOCK RING
29
BALL BEARING
35
SNAP RING
38
SEAL RING
41
NEEDLE BEARING
44
SEAL RINGTO 000 460 26 80
47
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
50
COVER
53
SET OF ROTORS
59
SEAL RINGTO 000 460 23 80
59
SEAL RING
62
COVER
65
DOWEL PINTO 001 466 77 01
74
SPRINGTO 000 460 23 80
83
COVER , Replaced By: A0004666505
86
SNAP RINGTO 000 460 23 80
92
PISTON
95
SPRING
98
SEAL RING LINE CONNECTION
101
SCREW PLUGTO 000 460 23 80
110
CARTRIDGE
110
CARTRIDGE , Replaced By: A0004663584
179
REPAIR KIT
194
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
197
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
200
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
203
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
