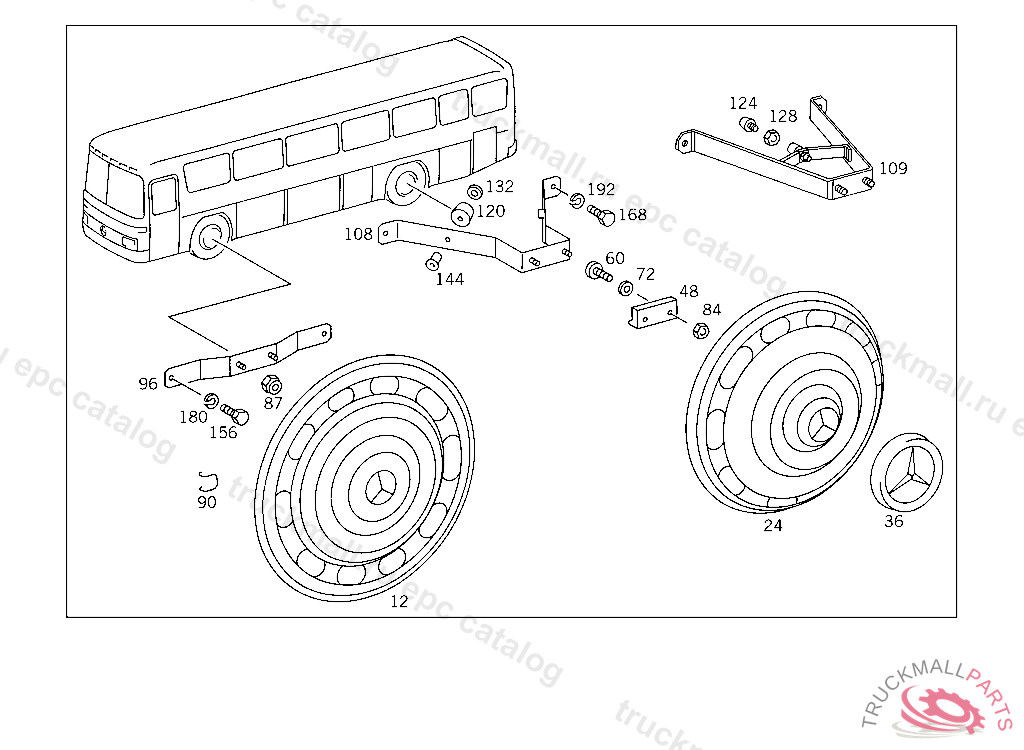

Поз.
Артикул
Описание
12
HUB CAP FRONT WHEELS
12
HUB CAP FRONT
24
HUB CAP REAR
36
WHEEL DISC
48
RUBBER BUFFER
60
SCREW COMPRESSED AIR LINE MOUNTING
72
WASHER , Replaced By: N000433005304
72
WASHER BOOT TO CAB FLOOR
84
NUT TACHOGRAPH TO BRACKET
87
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
90
EXTRACTOR HOOK
96
BRACKET FRONT TO 373 400 00 25
96
BRACKET FRONT HUB CAP
96
BRACKET FRONT TO 317 400 26 02,307 400 08 02
96
BRACKET FRONT HUB CAP
108
BRACKET REAR TO 373 400 00 02
108
BRACKET REAR HUB CAP
108
BRACKET REAR HUB CAP
108
BRACKET REAR HUB CAP
120
RUBBER BUFFER
132
WASHER , Replaced By: N000433005304
132
WASHER BOOT TO CAB FLOOR
144
RIVET
156
SCREW CENTRAL LOCK TO CAB M 10X16
168
SCREW , Replaced By: N304017008016
168
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
168
SCREW INTERMEDIATE BEARING TO BRACKET M 8X20
180
LOCK WASHER FUSE
180
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
192
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
