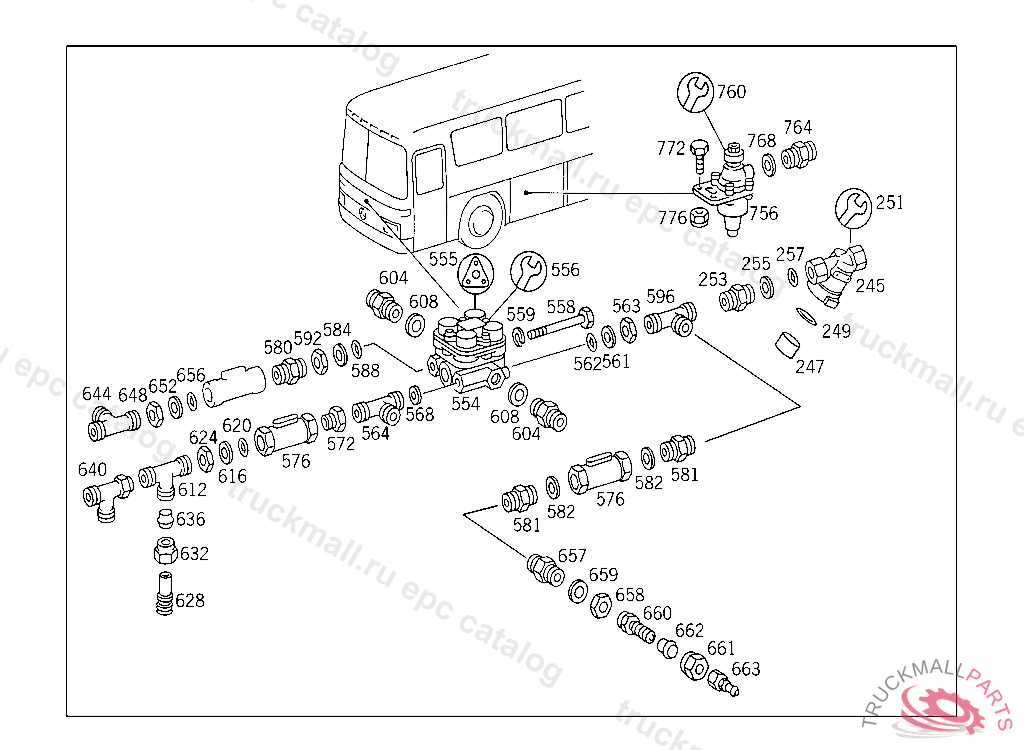

Поз.
Артикул
Описание
245
AIR CLEANER
245
AIR CLEANER , Replaced By: A0004293895
245
AIR CLEANER COMPRESSED AIR LINE
247
FILTER ELEMENT
247
FILTER ELEMENT WITH GASKET KNORR
249
SEAL RINGWABCO 000 0,36.2X3.0 MM
249
SEAL RING39.2X3.0 MM
251
REPAIR KITWABCO 000 0
253
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
255
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
257
O-RING CHECK VALVE TO AIR RESERVOIR
554
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 087820 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034315006
555
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE
556
REPAIR KITTO 001 431 93 06,BOSCH 62201,K 087820
558
SCREW STEERING SHAFT BEARING TO CAB M 8X20
558
SCREW PIPE CLAMP
559
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
561
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
562
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
563
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
564
T-FITTING BRAKE VALVE
568
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
572
FITTING CHECK VALVE,CONNECTION: "10",K 174076
576
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
580
FITTING TWO-WAY VALVE
581
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
582
SEAL RING LINE CONNECTION
584
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
588
O-RING CHECK VALVE TO AIR RESERVOIR
592
NUT CHECK VALVE TO AIR RESERVOIR
592
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
596
T-FITTING
604
FITTING DELIVERY LINE TO PUMP
608
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
612
T-FITTING INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
616
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
620
O-RING CHECK VALVE TO AIR RESERVOIR
624
NUT CHECK VALVE TO AIR RESERVOIR
628
FITTING RELAY VALVE,CONNECTION: "10",950459
632
UNION NUT LINE CONNECTION, Replaced By: N000000006239
636
GLAND , Replaced By: A0019901967
636
SEAL CONE LINE CONNECTION
640
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
644
T-FITTING
648
NUT CHECK VALVE TO AIR RESERVOIR
652
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
656
O-RING CHECK VALVE TO AIR RESERVOIR
657
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "2"
658
NUT BRACKET TO SIDE MEMBER
659
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
660
FITTING RELAY VALVE,CONNECTION: "10",950459
661
UNION NUT LINE CONNECTION, Replaced By: N000000006239
662
GLAND , Replaced By: A0019901967
662
SEAL CONE LINE CONNECTION
663
TEST CONNECTION
756
VALVE DRAIN, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
760
REPAIR KIT DRAIN VALVE
764
FITTING LINE CONNECTION, Replaced By: N000000006446
768
SEAL RING LINE CONNECTION
772
SCREW STEERING SHAFT BEARING TO CAB M 8X20
772
SCREW PIPE CLAMP
776
NUT BRACKET TO SIDE MEMBER
