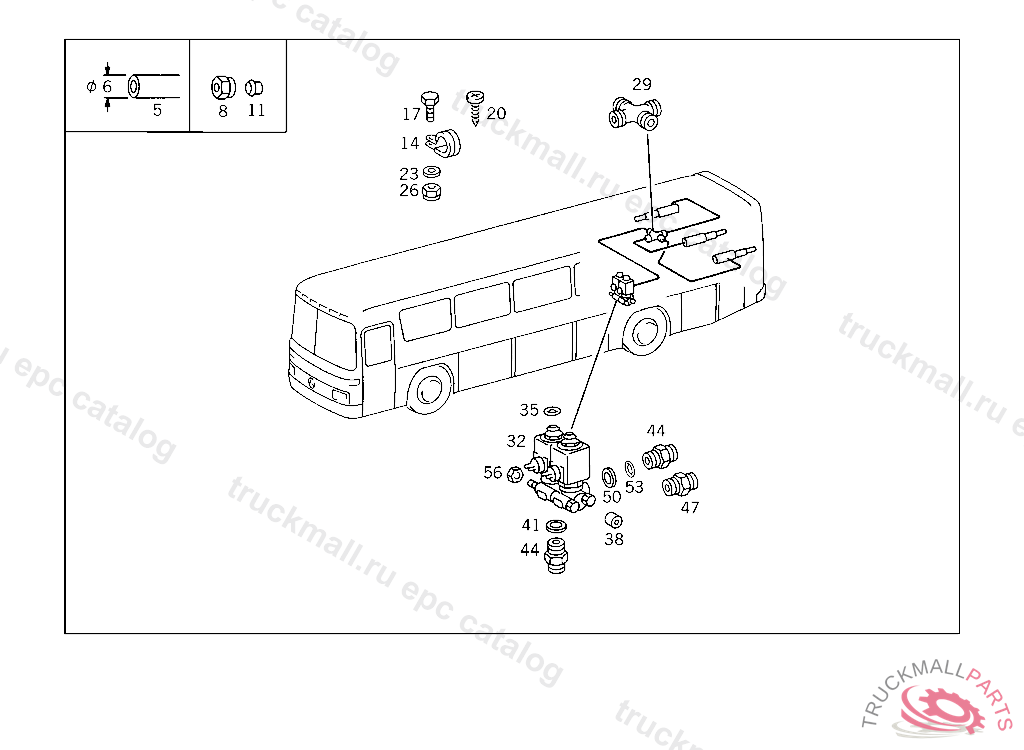

Поз.
Артикул
Описание
5
LINE FROM 3/2-WAY VALVE TO EXHAUST BRAKE CYLINDER, ONLY APPLICABLE FOR TURKEY
5
LINE FROM CROSS FITTING TO CYLINDER, ONLY APPLICABLE FOR TURKEY
5
LINE FROM CROSS FITTING TO CYLINDER, ONLY APPLICABLE FOR TURKEY
5
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
5
LINE FROM CROSS FITTING TO CYLINDER, ONLY APPLICABLE FOR TURKEY
5
LINE FROM CROSS FITTING TO CYLINDER, ONLY APPLICABLE FOR TURKEY
8
UNION NUT
11
GLAND , Replaced By: A0019901667
11
SEAL CONE
14
CLAMP SENSOR CABLE TO FRONT AXLE
17
SCREW CAB FLOOR COVERING M 6X25
23
WASHER COMPRESSED AIR LINE TO BRACKET
23
WASHER , Replaced By: N009021006208
26
NUT , Replaced By: N910113006001
29
CROSS FITTING BRANCH-OFF TO EXHAUST BRAKE CYLINDER IN LINKAGE LOCK
32
VALVE ENGINE SHUT-OFF
35
SEAL RINGWABCO
38
SEAL RING VALVE TO VALVE
41
SEAL RING24X2 MM
44
FITTING LINE CONNECTION, Replaced By: N000000006446
47
TS DOUBLE FITTING SOLENOID VALVE
47
FITTING , Replaced By: A0029906071
50
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
53
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
56
NUT BRACKET TO SIDE MEMBER
999
SEAL RING 3/2-WAY VALVE
