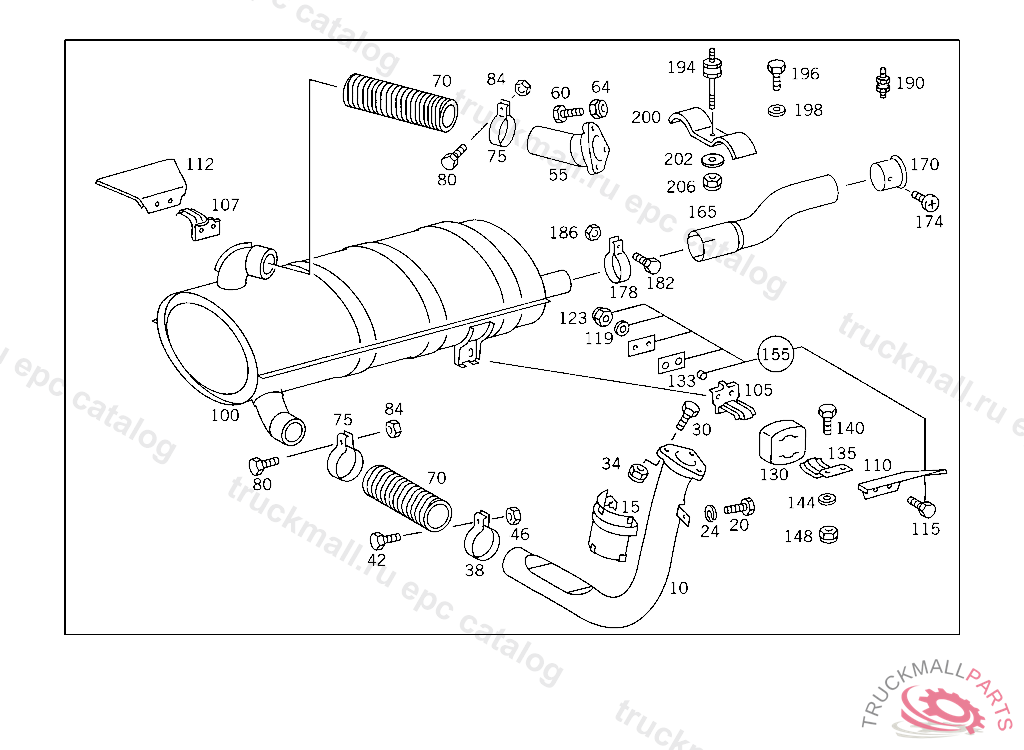

Поз.
Артикул
Описание
10
EXHAUST PIPE FRONT LEFT, FOR USE WITH MERCEDES-BENZ BODY FROM IDENT NO.039439,FOR VEHICLES LESS MERCEDES-BENZ FROM IDENT NO.040794
15
PROTECTIVE PLATE FRONT EXHAUST PIPE
20
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
SCREW SWITCH TO BRACKET 8X16
24
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
30
HEX. HEAD. SCREW EXHAUST PIPE TO EXHAUST MANIFOLD
34
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
38
CLAMP EXHAUST PIPE,4 726045
42
SCREW BRACKET TO SIDE MEMBER
42
SCREW , Replaced By: N304017010002
46
NUT BRACKET TO SUPPORT AND TO END PIECE
46
NUT BATTERY CABLE
55
EXHAUST PIPE FRONT RIGHT
60
HEX. HEAD. SCREW EXHAUST PIPE TO EXHAUST MANIFOLD
64
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
70
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER
75
CLAMP PRESSURE LIMIT VALVE
80
SCREW BRACKET TO SIDE MEMBER
80
SCREW , Replaced By: N304017010002
84
NUT BRACKET TO RETARDER
84
NUT BATTERY CABLE
100
EXHAUST MUFFLER
105
CONSOLE EXHAUST MUFFLER
107
CONSOLE CONSOLE TO EXHAUST MUFFLER,032182
110
PROTECTIVE PLATE EXHAUST MUFFLER
112
PROTECTIVE PLATE EXHAUST MUFFLER,032182
115
SCREW BRACKET TO CROSS CONNECTION STRUT
115
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
115
SCREW , Replaced By: N304017008027
115
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
119
WASHER TRAILER PLUG SOCKET TO BRACKET
119
WASHER EXHAUST MUFFLER TO STRAP
123
NUT , Replaced By: A0009903250
130
DAMPING PAD EXHAUST MUFFLER SUSPENSION
133
SPACER TUBE REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER
135
CONSOLE EXHAUST MUFFLER TO SUBSTRUCTURE
140
SCREW CLAMP TO EXHAUST PIPE
140
SCREW BRACKET TO BUMPER,LEFT M 10X25
144
WASHER , Replaced By: N000125010532
144
WASHER RADIATOR TO RUBBER MOUNTING
148
NUT , Replaced By: N910113010000
155
SUSPENSION EXHAUST MUFFLER SUSPENSION
165
170
END PIECE (CHROMIUM JACKET)
174
TAPPING SCREW CHROMIUM JACKET TO REAR EXHAUST PIPE
178
CLAMP PRESSURE LIMIT VALVE
182
SCREW CLAMP TO EXHAUST PIPE
182
SCREW BRACKET TO BUMPER,LEFT M 10X25
186
NUT BRACKET TO RETARDER
186
NUT BATTERY CABLE
190
RUBBER BUFFER COVERING TO FRAME
202
WASHER EXHAUST MUFFLER TO STRAP
202
WASHER TRAILER PLUG SOCKET TO BRACKET
206
NUT , Replaced By: N913004008001
206
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
