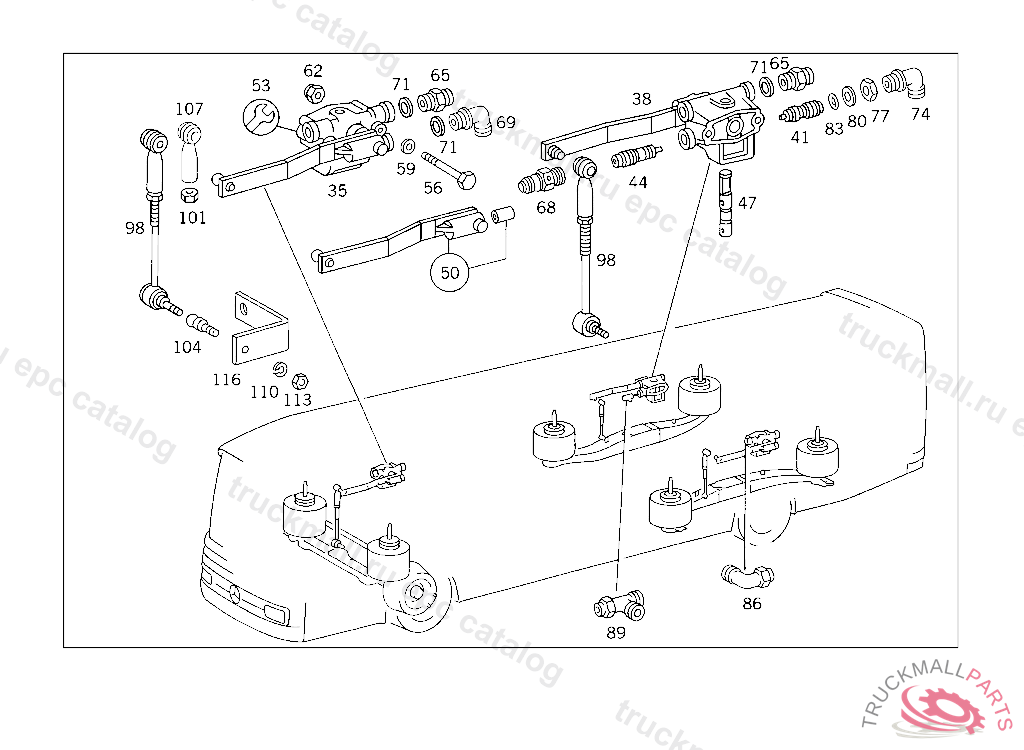

Поз.
Артикул
Описание
35
VALVE FRONT AXLE LEVEL ADJUSTMENT BOSCH
38
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
38
VALVE TRAILING AXLE SELF-LEVELLING DEVICE
41
VALVE INTAKE
44
VALVE EXHAUST
47
SHAFT87 MM
50
LEVER (PARTS KIT)
53
REPAIR KIT
56
SCREW VALVE TO BRACKET, Replaced By: N304014008002
59
WASHER , Replaced By: N000125008443
62
NUT BRACKET TO SIDE MEMBER
65
FITTING LINE CONNECTION, Replaced By: N000000006446
68
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
69
ELBOW FITTING LINE CONNECTIONS
71
SEAL RING LINE CONNECTION
71
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
74
ELBOW FITTING LINE CONNECTIONS
77
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
80
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
83
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
86
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
89
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
98
ROD FRONT AXLE SELF-LEVELLING DEVICE
98
ROD FRONT AXLE SELF-LEVELLING DEVICE
101
NUT , Replaced By: N304032008006
104
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
107
BALL SOCKET BRAKE POWER REGULATOR CONTROL,5 574483
110
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
113
NUT BRACKET TO SIDE MEMBER
113
NUT , Replaced By: N304032008006
116
BRACKET OPERATING ROD
999
SEAL RING 3/2-WAY VALVE
