Поз.
Артикул
Описание
5

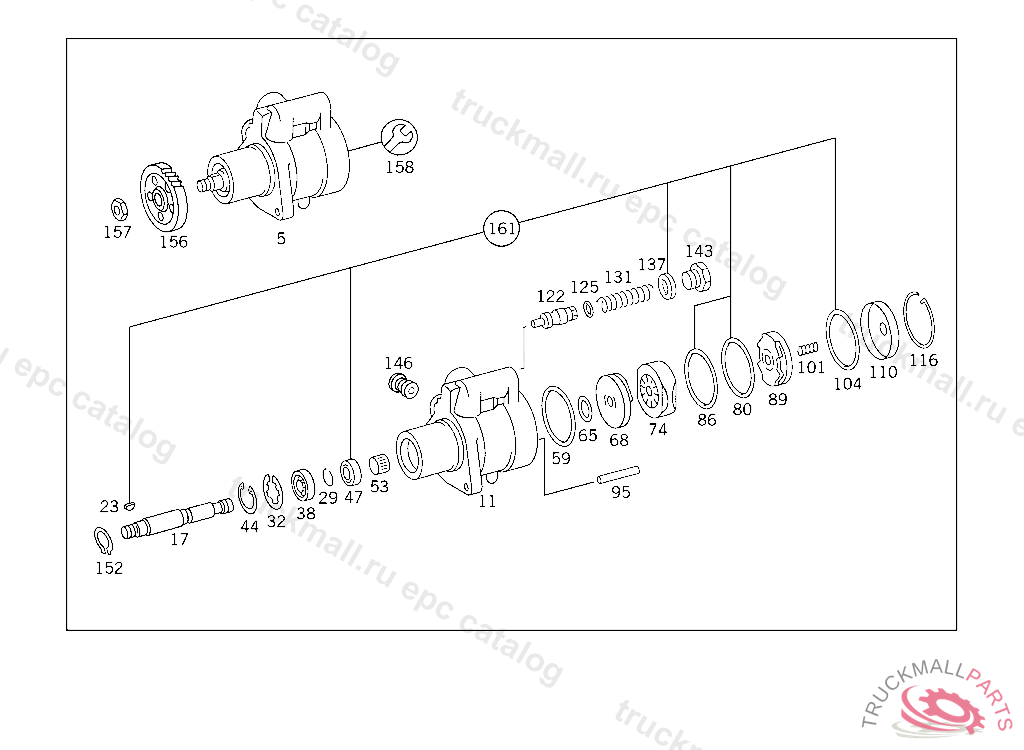

HYDRAULIC PUMP
5
HYDRAULIC PUMP , Replaced By: A3744667101
11
HOUSING
17
DRIVE SHAFT
17
DRIVE SHAFT
23
KEY
29
SNAP RINGTO 374 466 71 01
32
LOCK RING
38
BALL BEARINGTO 001 466 39 01
38
BALL BEARING
38
BALL BEARING
44
SNAP RINGTO 374 466 71 01
44
SNAP RING
47
SEAL RING
47
SEAL RINGTO 374 466 71 01
53
NEEDLE BEARING , Replaced By: A0059810310
53
NEEDLE BEARING
59
SEAL RINGTO 000 460 26 80
65
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
68
COVER
68
COVER
74
SET OF ROTORS
74
ROTOR SET (PARTS KT),ROTOR TO 374 466 71 01
80
SEAL RINGTO 000 460 23 80
86
SPACER RING , Replaced By: A0004661151
89
COVERTO 374 466 71 01
89
COVER
89
COVERTO 000 460 23 80
95
DOWEL PINTO 001 466 77 01
95
DOWEL PINTO 374 466 71 01
101
SPRINGTO 000 460 23 80
104
SEAL RING
104
SEAL RING
110
COVER , Replaced By: A0004666505
110
COVERTO 000 460 23 80
110
COVER
116
SNAP RINGTO 000 460 23 80
122
PISTON
122
PISTONTO 374 466 71 01
125
SPACER WASHER1,4 MM, TO 476 460 70 80
125
SPACER WASHER0,5 MM, TO 476 460 70 80
125
SPACER WASHER0,05 MM, TO 476 460 70 80
125
SPACER WASHER0,1 MM, TO 476 460 70 80
125
SPACER WASHER0,90 MM, TO 374 466 71 01
125
SPACER WASHER0,7 MM, TO 476 460 70 80
125
SPACER WASHER0,2 MM, TO 476 460 70 80
131
SPRING
137
SEAL RING LINE CONNECTION
143
SCREW PLUGTO 000 460 23 80
146
CARTRIDGETO 374 466 71 01
152
LOCK RING
158
REPAIR KIT
161
GASKET (GASKET KIT),POWER STEERING PUMP TO 374 466 71 01
