Mercedes A1122030082 - Шланг

E 430 4MATIC 210.083 FROM MODELLJAHR CODE 800

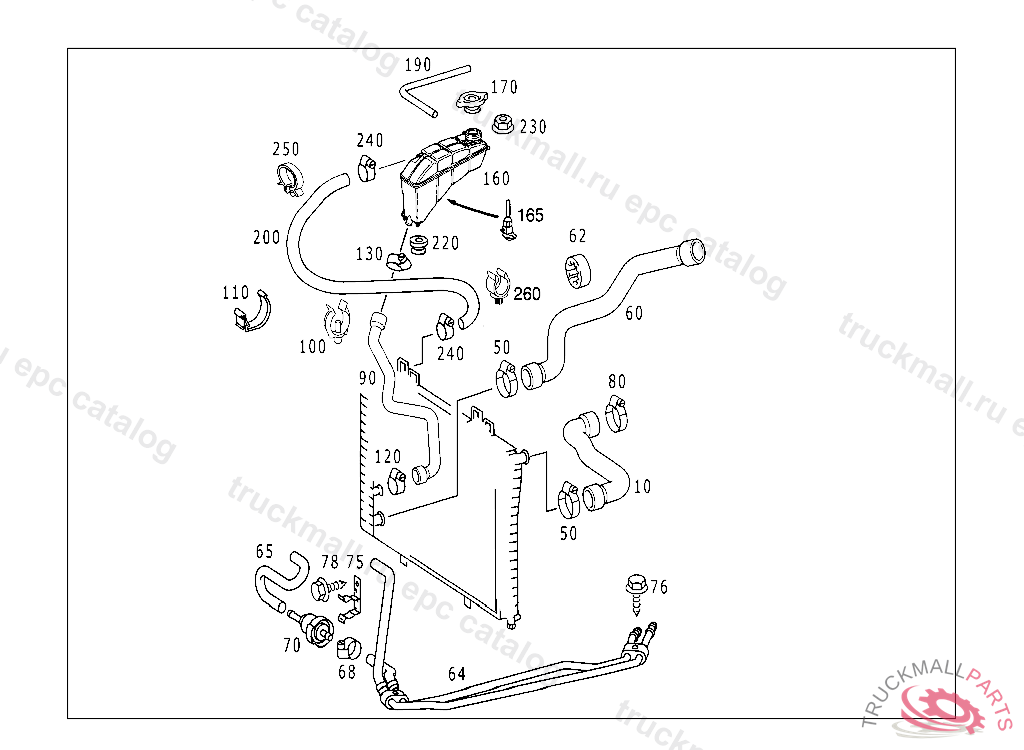

50 RADIATOR - 165 EXPANSION TANK,MOUNTING AND HOSES

Поз.
Артикул
Описание
10
A2105014182
HOSE TOP
50
N000000002775
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
60
A2105012682
HOSE BOTTOM
80
N000000002775
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
90
A1122030082
HOSE
100
A1265010020
BRACKET JACK FIXTURE
110
A2105010020
BRACKET
120
A0069970390
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
130
A0069974290
CLAMP HOSE FASTENING 28-35 MM,V 207570
160
A2105000549
TANK EXPANSION TANK
165
A2105450024
SWITCH,AUTOMATIC EXPANSION TANK, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
170
A2105010515
RADIATOR CAP
170
A2105010715
RADIATOR CAP COOLING WATER EXPANSION TANK, Replaced By: A2105010615
190
A0229972682
HOSE OVERFLOW 530 MM, ORDER BY THE METER
200
N900271008085
HOSE EXPANSION RESERVOIR TO RADIATOR 560 MM
220
A2015040112
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
230
A0019905850
NUT EXPANSION TANK TO WHEELHOUSE
240
N000000000665
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
250
A0009955244
CLAMP
