Mercedes A0139900701 - Болт

OM 364 LA 374.988

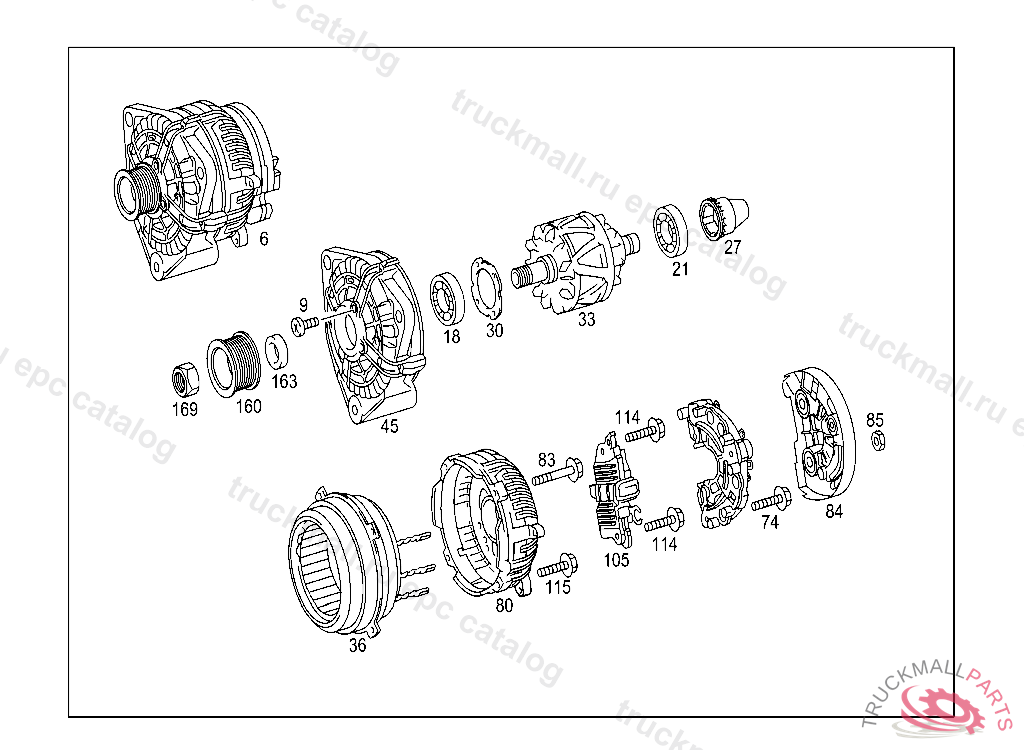

15 ELECTRICAL EQUIPMENT - 030 ALTERNATOR IL. 2

Поз.
Артикул
Описание
6
A3761540302
ALTERNATOR WITH REGULATOR INCORPORATED AND PULLEY "BOSCH", 14V, 55A
9
A0009901206
SCREW
18
A0089818425
BALL BEARING
21
A0089818625
BALL BEARING REAR
27
A0001541257
RING
30
A0001540452
SPACER WASHER
33
A0001548315
ROTOR
36
A0001547625
COIL
45
A0001542649
BEARING
74
A0139900601
SCREW
80
A0001542749
BEARING
83
A0009902003
BOLT. SCREW
84
A0001561924
SUPPRESSOR CAP
85
A0059903651
NUT
105
A0001542905
REGULATOR
114
A0019906121
SCREW REGULATOR AND CUT-OUT
115
A0139900701
SCREW
160
A0011555015
PULLEY
163
A0001540451
SPACER RING
169
A0009902250
NUT PULLEY TO ALTERNATOR
999
A0011544116
RECTIFIER
