Поз.
Артикул
Описание

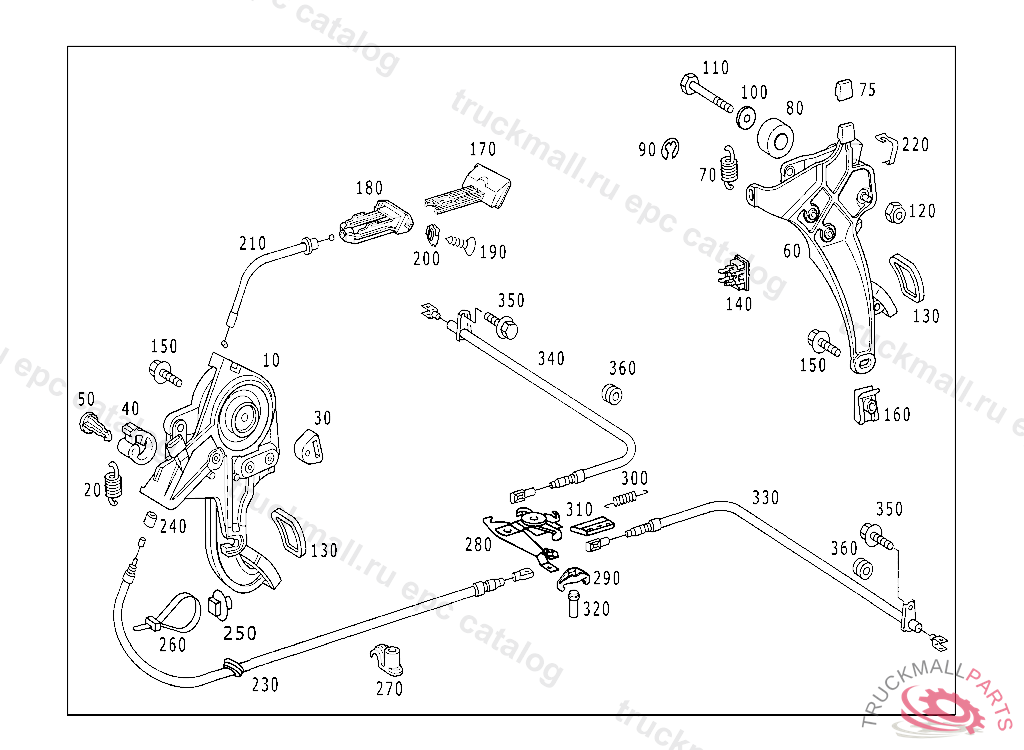

10
PARKING BRAKE , FROM MODEL YEAR'96
10
PARKING BRAKE , Replaced By: A2204201284
20
SPRING , FROM MODEL YEAR'96
30
STOP , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
40
DETENT , FROM MODEL YEAR'96
50
PIN , FROM MODEL YEAR'96
60
PARKING BRAKE
70
SPRING
75
PAD
80
DAMPING RING
90
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
100
WASHER COMPRESSED AIR LINE TO BRACKET
110
SCREWM6 X 38
120
NUT OIL TANK TO BRACKET
130
PAD PEDAL
140
FUSE. LOCK PARKING BRAKE SWITCH
150
HEXAGON HEAD BOLT FASTENING, FOOT-OPERATED PARKING BRAKE M8X22
160
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
170
HANDLE
170
HANDLE
180
GUIDE
190
TAPPING SCREW
200
LOCK
210
BRAKE CABLE
210
BRAKE CABLE
220
CLIP
230
BRAKE CABLE FRONT
230
BRAKE CABLE FRONT
230
BRAKE CABLE FRONT
240
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
250
FASTENER BUTTON ELECTRIC CABLE TO FIRE WALL
260
CABLE TIE310X5MM
270
CLAMP FRONT BRAKE CABLE TO TUNNEL
280
ADJUSTER
290
CLIP
300
SPRING
310
GUIDE
320
PIN
330
BRAKE CABLE REAR LEFT
340
BRAKE CABLE REAR RIGHT
350
SCREW BRAKE CABLE TO REAR AXLE
360
GROMMET BRAKE CABLE TO REAR AXLE
