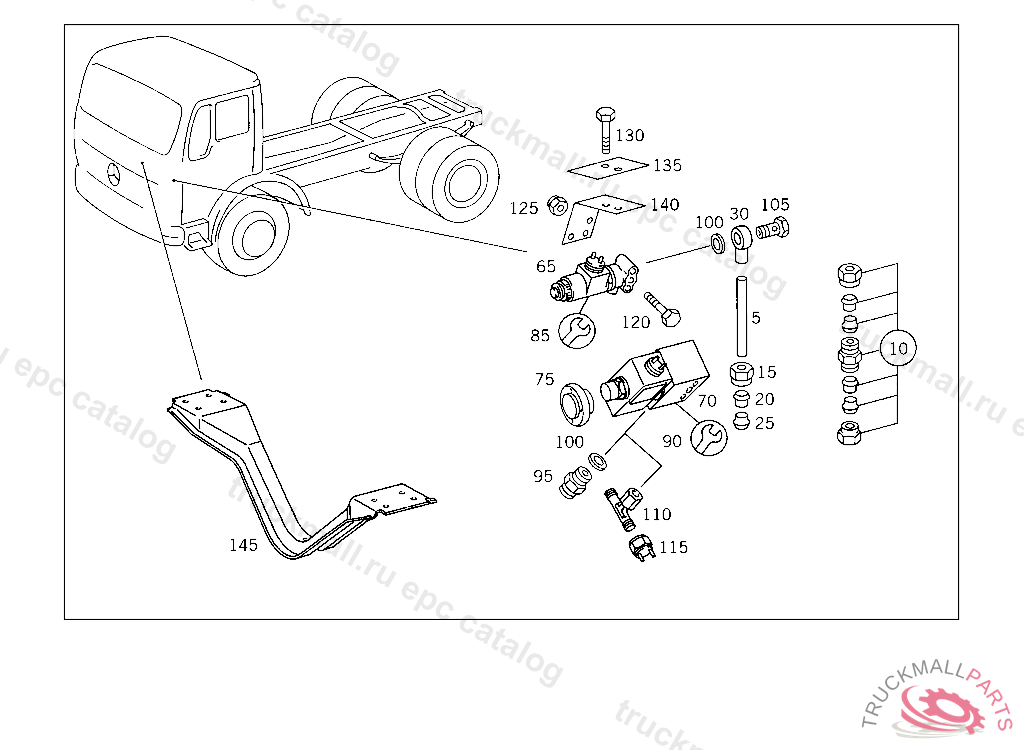

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
10
FITTING (PARTS KIT),LINE RUPTURE
10
FITTING , Replaced By: A0029905971
15
UNION NUT LINE CONNECTION
20
GLAND LINE CONNECTION
25
SLEEVE LINE CONNECTION
30
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
65
VALVE (SOLENOID VALVE) WABCO
70
VALVE (SOLENOID VALVE) HERION
70
VALVE (SOLENOID VALVE) HERION
75
PROTECTIVE CAPWABCO
85
REPAIR KITTO 001 997 18 36,001 997 19 36
85
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
90
REPAIR KITTO 001 997 34 36,002 997 58 36,
90
REPAIR KIT , Replaced By: A0012608357
95
FITTING LINE CONNECTION, Replaced By: N000000006446
95
FITTING LINE CONNECTION
100
SEAL RING LINE CONNECTION
105
HOLLOW SCREW LINE CONNECTION
110
T-FITTING EXTENSIBLE BRAKE VALVE, 4 691696
115
SWITCH EXHAUST BRAKE,K 251255
120
SCREW , Replaced By: N304017008043
120
SCREW VALVE TO BRACKET M 8X55
125
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
125
NUT , Replaced By: N913004008001
130
SCREW , Replaced By: N000933006151
130
SCREW DISTRIBUTOR TO CAB
130
SCREW DISTRIBUTOR TO CAB
135
REINFORCEMENT DISTRIBUTOR TO CAB
140
BRACKET 3/2-WAY SOLENOID VALVE
145
ENGINE SUPPORT ENGINE MOUNTING
999
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
999
REPAIR KIT , Replaced By: A0024302260
999
VALVE , Replaced By: A0039971736
999
VALVE , Replaced By: A0039971836
999
VALVE ,4 188089, Replaced By: A0029975836
999
VALVE , Replaced By: A0029975936
999
VALVE , Replaced By: A0029975836
999
SEAL RINGBOSCH
999
ROD
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
LEVER , Replaced By: A6203000628, +001N071803013208
999
ROD
999
SEAL RINGBOSCH
