Поз.
Артикул
Описание

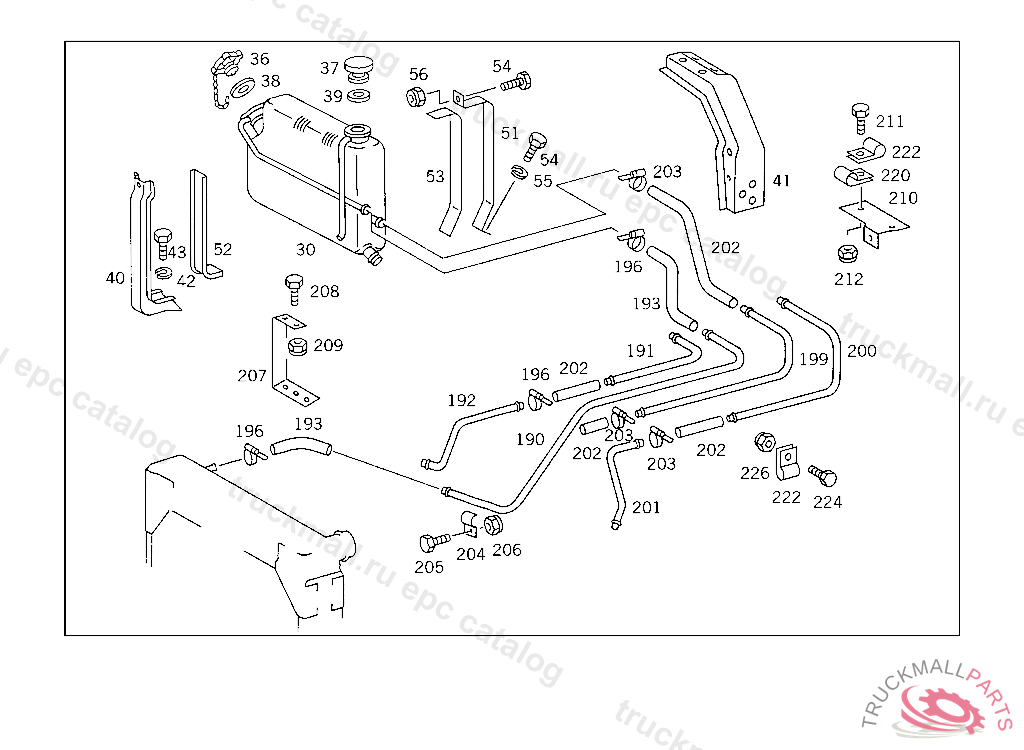

30
TANK
30
TANK , Replaced By: A3815000849
36
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
36
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
36
RADIATOR CAP
37
RADIATOR CAP
37
RADIATOR CAP FILLER NECK
37
RADIATOR CAP FILLER NECK
38
GASKET O.D., 52 MM
39
GASKET O.D., 37 MM
40
BRACKET EXPANSION TANK
40
BRACKET , Replaced By: A6155010020
42
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
43
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
43
SCREW , Replaced By: N304017010028
51
BRACKET , Replaced By: A3815012720
51
BRACKET EXPANSION TANK
52
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
53
SHIM STRAP, 415 5 014668 416 5 000515 417 4 972023
53
SHIM , Replaced By: A3815010295
53
SHIM , Replaced By: A3815010495
54
SCREW END PIECE TO EXHAUST PIPE M 10X25
55
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
56
NUT STRAP TO BRACKET
56
NUT , Replaced By: N910113010000
190
BREATHER PIPE ,4 640141, Replaced By: A3815014025, +001A3609950401, +001A3609952001, +001N000933006183, +001N913004006002
190
BREATHER PIPE ,4 640141, Replaced By: A3815014025, +001A3609950401, +001A3609952001, +001N000933006183, +001N913004006002
190
BREATHER PIPE
193
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
196
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
196
CLAMP , Replaced By: N000000000667
199
BREATHER PIPE FROM ENGINE TO EXPANSION TANK, 385.019 NOT FOR USE LESS MERCEDES-BENZ PLATFORM
202
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
203
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
203
CLAMP , Replaced By: N000000000667
204
MOUNTING CLAMP. CLAMP DE-AERATION LINE TO BRACKET,4 465189
205
SCREW COVER PLATE TO BRACKET
206
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
206
NUT , Replaced By: N910113006001
208
SCREW , Replaced By: N304017008021
208
SCREW PIPE CLAMP
209
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
209
NUT , Replaced By: N913004008001
210
BRACKET RADIATOR AND ENGINE BREATHING,AT ENGINE,5 055226
211
SCREW CAB FLOOR COVERING M 6X25
212
NUT , Replaced By: N913004006001
212
NUT PUMP TO BRACKET
220
CLAMP , Replaced By: N916016011202
220
CLAMP AT BRACKET
220
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
220
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
222
CLAMP DELIVERY AND SUCTION LINES TO STEERING
222
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
222
CLAMP FEED LINE TO THERMOSTAT
222
CLAMP , Replaced By: A6739950001
224
SCREW COVER PLATE TO BRACKET
226
NUT , Replaced By: N913004006001
226
NUT PUMP TO BRACKET
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A3609951201
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
