Поз.
Артикул
Описание

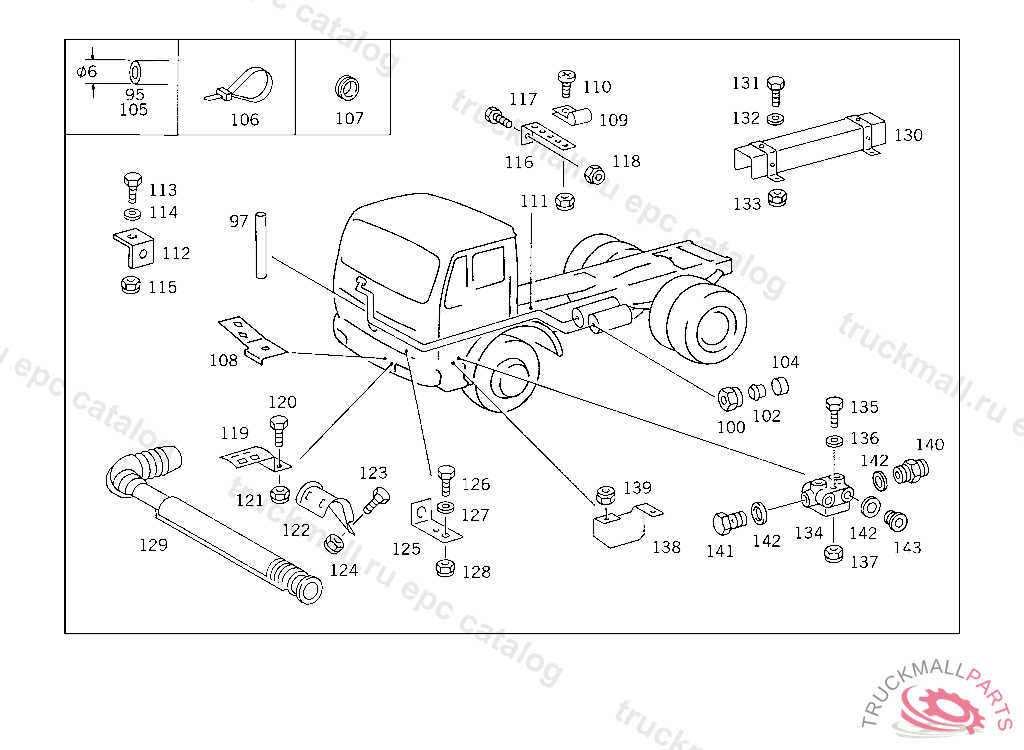

95
PLASTIC PIPE RISING PIPE 4X6 MM
95
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
97
INSULATING HOSE RED, ORDER BY THE METER
100
UNION NUT
102
SEAL CONE
102
GLAND , Replaced By: A0019901667
104
SLEEVE LEAK LINE
105
HOSE LEAK LINE, ORDER BY THE METER
106
LOOM TIE LINE MOUNTING
107
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
108
BRACKET PRESSURE GAUGE LINE TO BRACKET,4 895864
109
CLAMP DELIVERY AND SUCTION LINES TO STEERING
109
CLAMP , Replaced By: A6739950001
110
SCREW , Replaced By: N000000001146
110
SCREW CLAMP MOUNTING M 6X16
111
NUT PUMP TO BRACKET
111
NUT , Replaced By: N913004006001
112
ANGLE LINE MOUNTING
113
SCREW , Replaced By: N304014008001
113
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
114
WASHER , Replaced By: N000125008443
114
WASHER EXHAUST MUFFLER TO STRAP
115
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
115
NUT , Replaced By: N913004008001
116
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
116
BRACKET ,4 719029
117
SCREW PIPE CLAMP
117
SCREW , Replaced By: N304017008021
118
NUT , Replaced By: N913004008001
118
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
119
BRACKET PLASTIC LINES TO FRAME, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
120
SCREW PIPE CLAMP
120
SCREW , Replaced By: N304017008021
121
NUT , Replaced By: N913004008001
121
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
122
BRACKET FRAME MOUNTED CABLE HARNESS TO BUMPER STRUT,5 099415
123
SCREW CLAMP TO BRACKET AND TO PIPE
124
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
124
NUT , Replaced By: N913004008001
125
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
125
BRACKET FUEL LINES TO TRANSMISSION
126
SCREW BRACKET TO CROSS CONNECTION STRUT
126
SCREW , Replaced By: N304017008034
127
WASHER , Replaced By: N000125008443
127
WASHER EXHAUST MUFFLER TO STRAP
128
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
128
NUT , Replaced By: N913004008001
129
PROTECTIVE TUBE , Replaced By: A0004290286
129
PROTECTIVE TUBE COMPRESSED AIR LINE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
130
PROTECTIVE PLATE HEAT INSULATION,PLASTIC LINES,ON THE RIGHT
130
PROTECTIVE PLATE HEAT INSULATION, PLASTIC LINES, ON THE LEFT
130
PROTECTIVE PLATE , Replaced By: A3854200744
130
PROTECTIVE PLATE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 5 034723, Replaced By: A3854201544
130
PROTECTIVE PLATE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 5 034723, Replaced By: A3854201444
131
SCREW , Replaced By: N304017008034
131
SCREW BRACKET TO CROSS CONNECTION STRUT
132
WASHER EXHAUST MUFFLER TO STRAP
132
WASHER , Replaced By: N000125008443
133
NUT , Replaced By: N913004008001
133
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
134
DISTRIBUTOR ,4 342862
134
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
135
SCREW , Replaced By: N304017006026
136
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
137
NUT PUMP TO BRACKET
137
NUT , Replaced By: N913004006001
138
BRACKET , NOT USED
139
NUT , Replaced By: N913004006001
139
NUT PUMP TO BRACKET
140
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
140
FITTING , Replaced By: A0019972572
140
FITTING LINE CONNECTION, Replaced By: N000000006446
141
HOLLOW SCREW LINE CONNECTION
141
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
142
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
142
SEAL RING LINE CONNECTION
143
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
143
SCREW PLUG , Replaced By: N000908012009
999
BLEEDER VALVE , Replaced By: A0004310265
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
ELBOW FITTING
999
SPACER RING ,4 428462
999
SLIDETO 000 431 50 14,000 431 24 14
999
FILTER BOTTOMTO 000 431 24 14
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
GUIDE BUSHING
999
SCREW PLUG WITH DIPSTICK
999
LEVER TOOTHED
999
LEVER
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
ANTI-FREEZE DEVICE
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
STRAINERTO 000 431 86 14
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
PISTONTO 000 431 43 12,000 431 44 12
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
CUP , Replaced By: A0015864342
999
SEAL RINGTO 000 431 43 12,000 431 44 12
999
PROTECTIVE CAPTO 000 431 24 14
999
SEAL RING
999
FELT STRIPTO 000 431 43 12,000 431 44 12
999
CUP , Replaced By: A0004318587
999
VALVE DRAIN, Replaced By: A0004322407
999
SWITCH SUPPLY PRESSURE,5 966147
999
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
999
REPAIR KIT , Replaced By: A0004305860
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
999
T-FITTING RELAY VALVE,CONNECTION: "12"
999
NUT RETAINER , Replaced By: A3229900091
999
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
999
F-FITTING BRAKE PRESSURE REGULATOR CONNECTION, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
PLUG
999
SEAL RINGTO 000 431 86 14
999
PRESSURE REGULATOR ,5 148812, Replaced By: A0024314306
999
SPRING
999
RESERVOIR5/25L
999
REPAIR KITTO 001 429 52 44
999
ELBOW FITTING DELIVERY LINE TO PUMP
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING ,4 261891
999
VALVE , Replaced By: A0034290944
999
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0034290844
999
VALVE
999
REPAIR KITWEST 432 199 015 0,432 199 030 0
999
SPRING
999
SEAL RING
999
VALVE , Replaced By: A0044293244
999
VALVE , Replaced By: A0044293144
999
BRAKE MASTER CYLINDER TANDEM
999
RESERVOIR COMPRESSED AIR 10 L.
999
RESERVOIR
999
SEAL RINGTO 000 439 95 14,4 847617
999
SEAL RINGTO 000 431 26 15,WEST 432 199 030 0
999
VALVE (OVERFLOW VALVE) WABCO
999
VALVE (OVERFLOW VALVE) GRAU
999
SEAL RINGTO 000 431 43 12,000 431 44 12, NO LONGER AVAILABLE
999
SEAL RING
999
SPHERICAL PIECE , Replaced By: A3025860242
999
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
999
WASHER BRACKET TO TRANSMISSION
999
NUT RETAINER BRACKET MOUNTING
999
BRACKET , Replaced By: A3184923441
999
ROD ,4 235129, Replaced By: N900331008427, +001A0004310867, +001N000934008010, +001N000934008035
999
BRACKET , NOT USED
999
BRACKET , NOT USED
999
BRACKET EXPANSION TANK, NOT FOR USE WITH MERCEDES-BENZ CAB4 314610
999
CONSOLE RESERVOIR, LEFT, NOT USED
999
ANGLE , NOT USED
999
BASE BRACKET TO SIDE MEMBER,4 314610
999
BRACKET AIR RESERVOIR,4 314610
999
BRACKET , NOT USED
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
BRACKET PRESSURE GAUGE LINE TO BRACKET
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET PULL ROD TO BRACKET ON FRAME, TO BE ADAPTED DURING ASSEMBLY
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008040
999
SCREW , Replaced By: N304017010002
999
FITTING , Replaced By: A0019902771
999
SEAL RING LINE CONNECTION
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING , Replaced By: A0009907771
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
999
NUT STRAP TO BRACKET
999
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
HOLLOW SCREW , Replaced By: N915036012101
