Поз.
Артикул
Описание

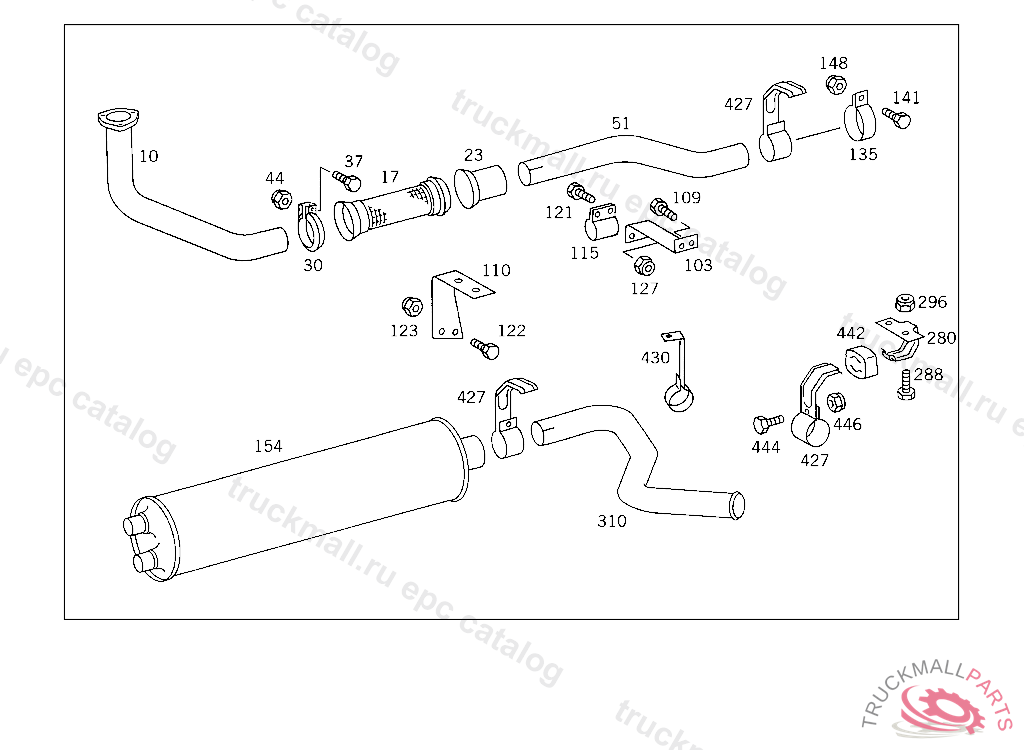

10
EXHAUST PIPE FRONT
10
CONNECTOR FRONT,FRONT PART
17
FLEXIBLE METAL TUBE CONNECTOR
23
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
30
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
37
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
37
SCREW BRACKET TO SIDE MEMBER
37
SCREW , Replaced By: N304017008040
37
SCREW , Replaced By: N304017008028
44
NUT , Replaced By: N913004008001
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
51
EXHAUST PIPE FRONT,REAR PART
51
EXHAUST PIPE FRONT
51
EXHAUST PIPE FRONT,REAR PART
103
BRACKET EXHAUST PIPE TO SUPPORT
109
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
110
BRACKET TAIL PIPE
115
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
121
SCREW BRACKET TO SIDE MEMBER
121
SCREW , Replaced By: N304017010002
122
SCREW , Replaced By: N304017010002
122
SCREW BRACKET TO SIDE MEMBER
123
NUT STRAP TO BRACKET
123
NUT , Replaced By: N910113010000
127
NUT , Replaced By: N910113010000
127
NUT STRAP TO BRACKET
135
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
141
SCREW SUPPORT TO CROSS MEMBER M 10X28
148
NUT STRAP TO BRACKET
148
NUT , Replaced By: N910113010000
154
EXHAUST MUFFLER
154
EXHAUST MUFFLER
154
EXHAUST MUFFLER
154
EXHAUST MUFFLER
154
EXHAUST MUFFLER ,5 073272
154
EXHAUST MUFFLER
154
EXHAUST MUFFLER
154
EXHAUST MUFFLER ,5 073272
154
EXHAUST MUFFLER
154
EXHAUST MUFFLER
280
SUPPORT REAR EXHAUST MUFFLER
288
SCREW SUPPORT TO CROSS MEMBER M 10X28
296
NUT STRAP TO BRACKET
296
NUT , Replaced By: N910113010000
310
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 471444
310
REAR EXHAUST PIPE ,4 191699
427
BRACKET RUBBER BUFFER,5 129244
427
BRACKET TAIL PIPES TO BRACKET
430
BRACKET , Replaced By: A3834927941
430
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
442
DAMPING PAD PARTICLE FILTER
444
SCREW SUPPORT TO CROSS MEMBER M 10X28
446
NUT STRAP TO BRACKET
446
NUT , Replaced By: N910113010000
999
BRACKET FRONT EXHAUST PIPE,4 484037
999
BRACKET , Replaced By: A3604922541
999
EXHAUST PIPE FRONT LEFT
999
EXHAUST PIPE FRONT RIGHT
