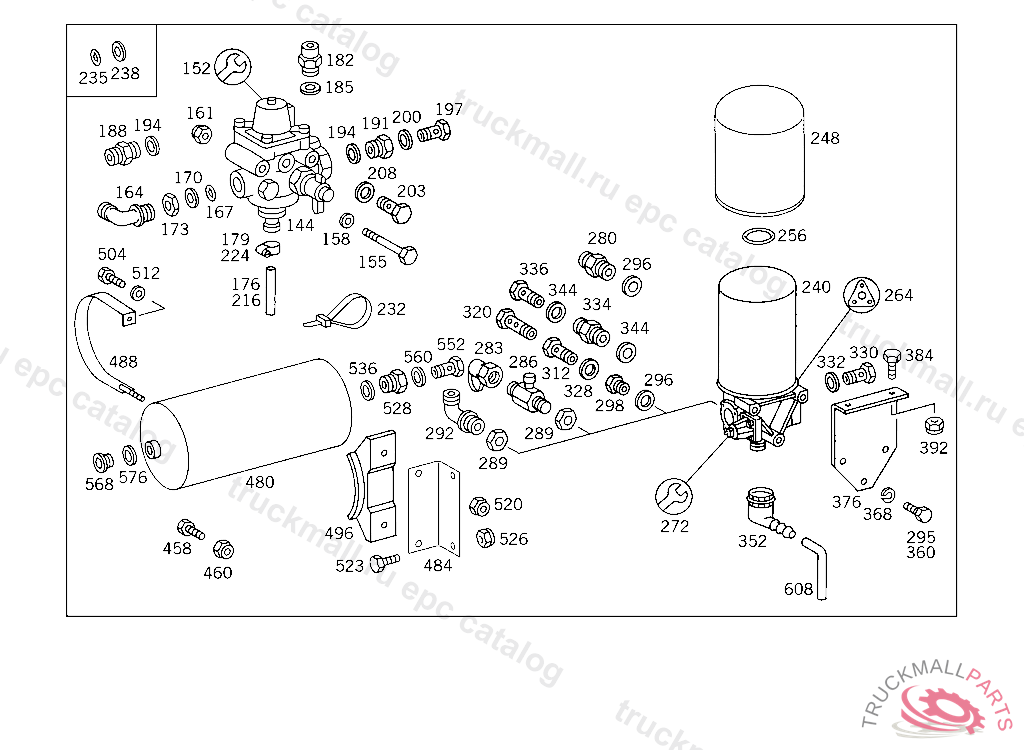

Поз.
Артикул
Описание
144
PRESSURE REGULATORWABCO, Replaced By: A0034313806
144
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313606
144
PRESSURE REGULATORKNORR
152
REPAIR KIT PRESSURE REGULATOR KNORR
152
REPAIR KIT PRESSURE REGULATOR BOSCH,241
152
REPAIR KIT PRESSURE REGULATOR WABCO
152
REPAIR KIT DIAPHRAGM PART BOSCH,209
152
REPAIR KIT SEAL RING BOSCH,209
155
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
158
WASHER TRAILER PLUG SOCKET TO BRACKET
161
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
164
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
167
O-RING CHECK VALVE TO AIR RESERVOIR
170
THRUST RING CHECK VALVE TO AIR RESERVOIR
170
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
173
NUT CHECK VALVE TO AIR RESERVOIR
176
HOSE15X24X700
176
HOSE PRESSURE REGULATOR,CONNECTION: "3"
179
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
179
CLAMP HOSE TO OIL TANK AND TO SUCTION LINE
182
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
185
SEAL RING LINE CONNECTION
188
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
191
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
194
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
197
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
200
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
203
HOLLOW SCREW HEATING CONNECTION
208
SEAL RING LINE CONNECTION
216
LINE PRESSURE REGULATOR BREATHING
224
CLAMP COMPRESSED AIR LINE TO BRACKET
232
LOOM TIE LINE MOUNTING
235
O-RING CHECK VALVE TO AIR RESERVOIR
238
THRUST RING CHECK VALVE TO AIR RESERVOIR
238
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
240
AIR DEHYDRATORWABCO
240
AIR DEHYDRATOR"BOSCH",5 502947
240
AIR DEHYDRATOR , Replaced By: A0014310515
240
AIR DEHYDRATORBOSCH
240
AIR DEHYDRATOR"WABCO",5 502947
240
AIR DEHYDRATOR"KNORR",5 502947
240
AIR DEHYDRATOR AIR DEHYDRATOR
248
AIR CLEANER COMPLETE TO BOSCH,KNORR
248
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
256
SEAL RINGWABCO
264
GASKET KITWABCO
272
REPAIR KIT AIR DEHYDRATOR WABCO
280
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
283
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
286
T-FITTING FRONT AXLE,CONNECTION: "20"
289
NUT CHECK VALVE TO AIR RESERVOIR
292
ELBOW FITTING
295
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
296
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
296
SEAL RING LINE CONNECTION
298
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
312
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
312
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
320
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
328
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
328
SEAL RINGTO 006 997 00 72
330
HOLLOW SCREW HEATING CONNECTION
332
SEAL RING LINE CONNECTION
334
SCREW-IN FITTING LINE CONNECTION
334
CONNECTION FITTING ,880809
336
HOLLOW SCREW HEATING CONNECTION
344
SEAL RING LINE CONNECTION
344
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
352
CONNECTOR 75 DEGREES
352
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
360
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
368
LOCK WASHER FITTING TO BRACKET
368
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
376
BRACKET AIR DEHYDRATOR
376
BRACKET , Replaced By: A3824310040
376
BRACKET AIR DEHYDRATOR
376
BRACKET AIR DEHYDRATOR
376
BRACKET AIR DEHYDRATOR
384
SCREW , Replaced By: N304017010040
392
NUT BRACKET TO SIDE MEMBER,XB209706
458
SCREW , Replaced By: N308676014012
460
NUT BRACKET TO BATTERY CASE
480
RESERVOIR AIR RESERVOIR
480
RESERVOIR ,5 9363655 812730, Replaced By: A0034320301, +001A0009970834, +001A0059977672
480
RESERVOIR COMPRESSED AIR 4 L,EURO,5 9363665 812731
484
BRACKET AIR RESERVOIR
488
STRAP AIR RESERVOIR
496
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
504
SCREW LINES TO BRACKET
504
SCREW POWER CYLINDER TO BEARING BRACKET
512
WASHER TRAILER PLUG SOCKET TO BRACKET
520
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
523
SCREW LINES TO BRACKET
526
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
528
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
528
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
536
SEAL RING LINE CONNECTION
536
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
552
HOLLOW SCREW HEATING CONNECTION
552
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
560
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
560
SEAL RING LINE CONNECTION
560
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
568
SCREW PLUG , Replaced By: N000908022011
568
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
576
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
576
SEAL RING LINE CONNECTION
608
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
608
PLASTIC PIPE8X6 MM, ORDER BY THE METER
608
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
608
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
608
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
608
HOSE , Replaced By: A0009872827
999
VALVE REPAIR KIT TO 003 431 68 06,339404
999
DS PROTECTION VALVETO 003 431 68 06,339405
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE (CHECK VALVE)
999
CONNECTOR AIR DEHYDRATOR,CONNECTION: "30",5 937586K 171087, Replaced By: A0004292139
999
AIR CLEANER , Replaced By: A0004293695
999
VALVE DRAIN, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
PARTS KIT AIR DEHYDRATOR,CONNECTION: "30", KNORR
999
REPAIR KIT. AIR CLEANERTO 693 420 75 71
999
REPAIR KIT AIR DEHYDRATOR KNORR
999
GASKET KIT AIR DEHYDRATOR TO 693 420 75 71
999
PARTS KIT PRESSURE REGULATOR TO 693 420 73 71,75 71
999
PRESSURE SENDER UNIT. PRESSURE REGULATORKNORR, Replaced By: A0015429218
999
ANTI-FREEZE DEVICE REPAIR KIT
999
REPAIR KIT AIR DEHYDRATOR TO 000 431 79 15
999
AIR DEHYDRATOR , Replaced By: A0014312115, +001A0004292139
999
AIR DEHYDRATORWABCO,5 9375855 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0014312215, +001A0004292139
999
HEATER , Replaced By: A0005480670
999
HEATERWABCO
999
HEATERTO 000 431 79 15
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
999
AIR DEHYDRATORKNORR, Replaced By: A0024317115
999
AIR DEHYDRATORBOSCH,5 937586
999
AIR DEHYDRATORBOSCH
999
SWITCHTO 000 431 79 15
999
LOOM TIE , Replaced By: A0019978490
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR AND HEATING KNORR,6.12, Replaced By: A0004309615
999
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
VALVE (CHECK VALVE)
999
SEAL RING FOUR-CIRCUIT PROTECTION VALVE TO AIRDRIER KNORR
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR, 4.05
999
RESERVOIR5 L
999
RESERVOIR30L,276 MM,8.5 BAR
999
REPAIR KIT (FOUR-CIRCUIT PROTECTIVE VALVE) TO 002 431 04 15/ 05 15
999
SEAL RING , Replaced By: A0005480870
999
CLAMP , Replaced By: A3129952420
999
THRUST RING LOCKING VALVE
999
STRAP AIR RESERVOIR TO FRAME SIDE MEMBER
999
CONSOLE AIR RESERVOIR TO FRAME 20 L
999
BRACKET ,B 981730
999
BRACKET PRESSURE REGULATOR
999
BRACKET DRAIN VALVE
999
BRACKET TO ENGINE
999
BRACKET LINE MOUNTING
999
CONNECTOR AIR RESERVOIR
999
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES
999
FITTING VALVE TO VALVE
999
LOOM TIE AIR INTAKE HOSE TO CLAMP
999
BRACKET PRESSURE REGULATOR
999
FITTING
999
BRACKET
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
T-FITTING PRESSURE REGULATOR,CONNECTION: "1"
999
BASE AIR RESERVOIR TO FRAME,INSIDE,683255
999
RESERVOIR AIR RESERVOIR III
999
LINE , NOT USED
999
RESERVOIR AIR RESERVOIR III 20 L
999
RESERVOIR AIR RESERVOIR III 20 L,999621
999
RESERVOIR
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
999
VALVE
999
VALVE DRAIN 20 L
999
CONSOLE AIR RESERVOIR
999
BANJO UNION
999
BRACKET AIR DEHYDRATOR
999
STRAP AIR RESERVOIR
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM,B 936133
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
999
LINE FROM AIR COMPRESSOR TO HOSE, NOT USED
999
LINE
999
BRACKET AIR RESERVOIR
999
WASHER 6,4 DIN 125. WASHER COMPRESSED AIR LINE TO BRACKET, NOT USED
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BEARING BRACKET TO FRONT AXLE
999
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
SCREW PLUG AT TANK
999
SCREW CABLE HARNESS MOUNTING M6X16
999
T-FITTING COMPRESSED AIR VALVE CONNECTION
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
NUT PUMP TO BRACKET
999
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
