Mercedes N000931010154 -

OH 1635 L,OH 1636 L 382.084

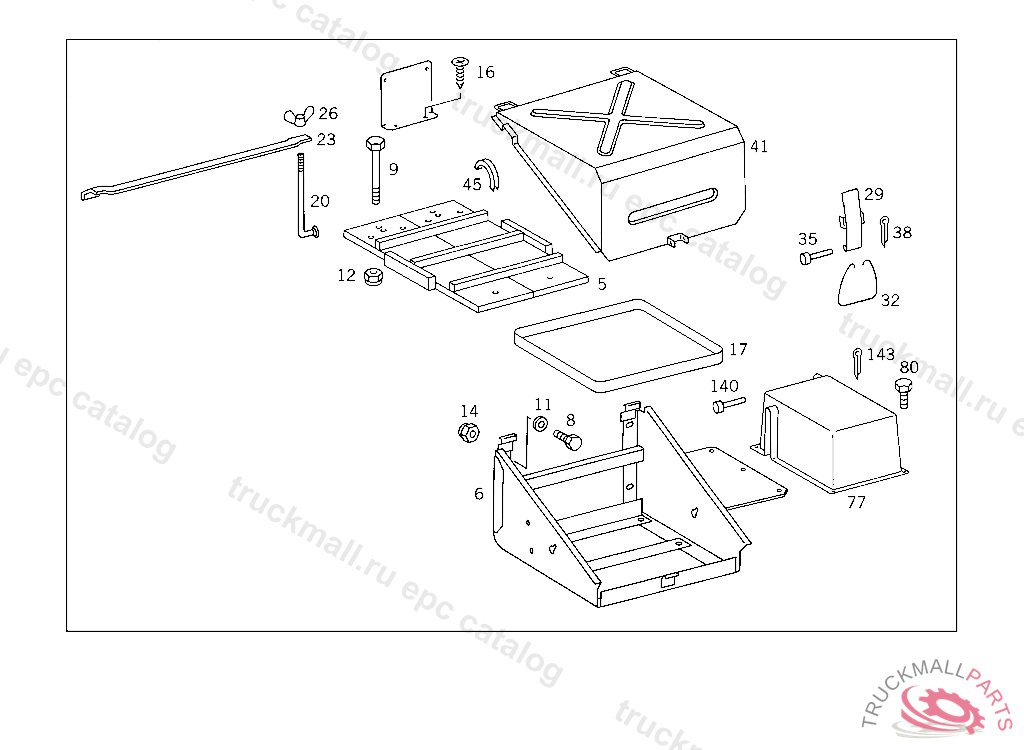

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 070 BATTERY,MOUNTING,AND BATTERY CABLES IL. 1

Поз.
Артикул
Описание
5
A3845407616
BATTERY SUPPORT LOWER PART
6
A3825407016
BATTERY SUPPORT ,D 027930
9
N000931010154
SCREW
9
N000931010422
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, INAPPLICABLE TO SUPERCHARGING SYSTEM
12
N913004010004
NUT BRACKET TO SIDE MEMBER,XB209706
12
N913004010002
NUT SPRING CLAMP
17
A3258950060
TRAY BATTERY
20
A3455417222
HOOK BATTERY,PB004444
23
A3645417013
MOUNTING RAIL BATTERY,D 226921
26
A3259900562
NUT BATTERY,XB209706
26
A3449907062
NUT , Replaced By: A3259900562
29
A3445400019
MOUNTING BOW BATTERY,PB004444
32
A3445410026
BRACKET CLAMP TO BATTERY CASE,PB004444
41
A3825407014
BATTERY CASE UPPER PART
45
A3089870172
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
45
A3089870072
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
77
A3825417003
COVER FUSE BOX
80
N000933005097
SCREW BRACKET MOUNTING
999
A3454320026
PLATE STRAP
999
A3845407216
BATTERY SUPPORT
999
A3864757019
BASE
