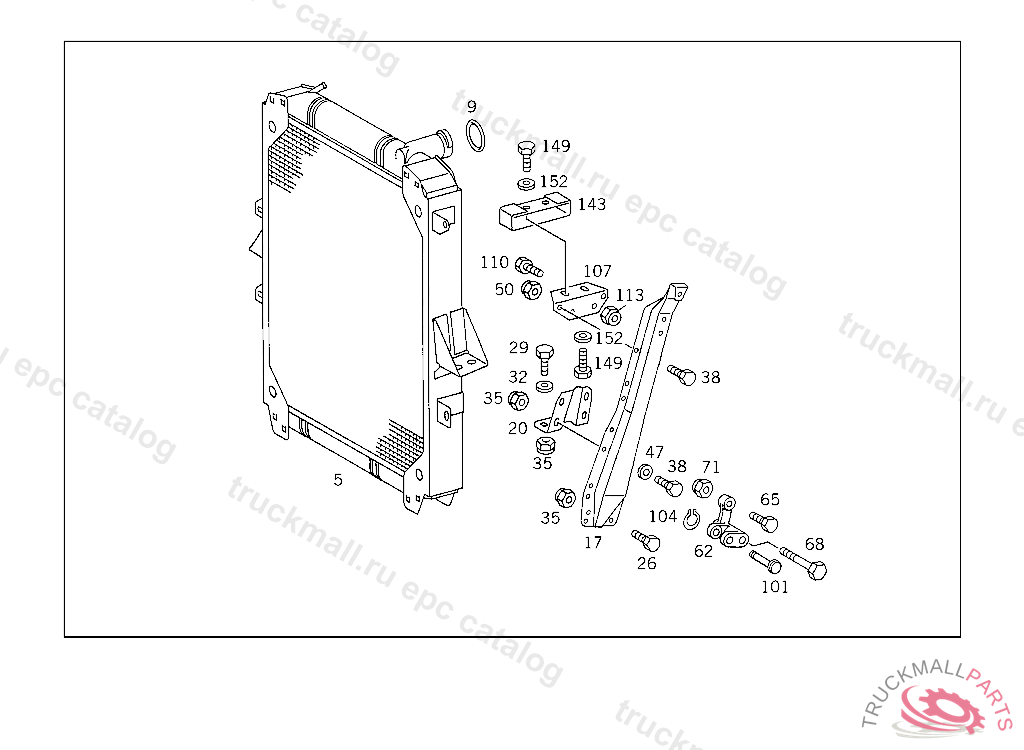

Поз.
Артикул
Описание
5
RADIATOR WATER
5
RADIATOR WATER
5
RADIATOR WATER
5
RADIATOR WATER
9
SEAL RING TOP AND BOTTOM, INSIDE TO 384 501 72 01,74 01,386 501 74 01
17
SUPPORT RADIATOR
20
STAY LEFT
20
STAY RIGHT
20
STAY RIGHT
20
STAY LEFT
26
SCREW BRACKET TO SIDE MEMBER
29
SCREW RETURN AND SUCTION LINES TO FRAME, FRONT M 12X40
32
WASHER
35
NUT BRACKET TO SIDE MEMBER
38
SCREW , Replaced By: N304017010040
47
WASHER GROUND CABLE
50
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
62
BRACKET LEFT,1D 006005
62
BRACKET RIGHT,1D 006005
65
SCREW BRACKET AND SUPPORT TO SIDE MEMBER M 12X55,1D 006005
68
SCREW SPRING CLAMP TO SPRING LEAF NO.3, TO 682 320 72 02, M 12X110
71
NUT BRACKET TO SIDE MEMBER
101
PIN SHOCK ABSORBER TO BRACKET,1D 006005
104
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
107
BRACKET RADIATOR MOUNTING
110
SCREW HAND PUMP TO BRACKET
110
SCREW BRACKET TO BUMPER,LEFT M 10X25
113
NUT , Replaced By: N910113010000
143
RUBBER MOUNTING RADIATOR
143
RUBBER MOUNTING RADIATOR
143
RUBBER MOUNTING RADIATOR
149
SCREW CROSS MEMBER TO SIDE MEMBERS
149
SCREW COLD START SYSTEM TO BRACKET
152
WASHER GROUND CABLE
