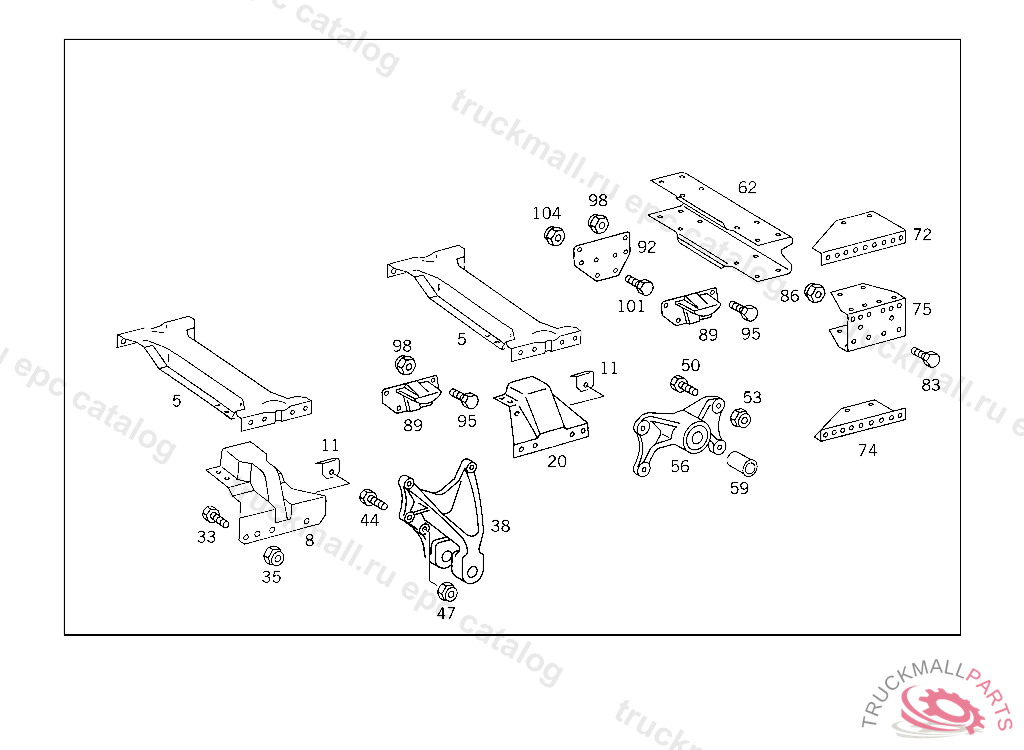

Поз.
Артикул
Описание
5
CROSS MEMBERNO.4
8
STRUTNO.4,5
11
SHIMNO.4,5
33
SCREW , Replaced By: N308676014008
35
NUT , Replaced By: N910113014000
38
REAR SPRING BRACKET (REAR SPRING BRACKET),FRONT
44
SCREW STEERING SUPPORT TO FRAME M 14X55
47
NUT , Replaced By: N910113014000
50
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
50
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER
53
NUT , Replaced By: N910113014000
56
SPRING BRACKET (REAR SPRING BRACKET),REAR
59
BUSHING
59
BUSHING
62
CROSS MEMBER (REAR CROSS MEMBER)
72
GUSSET PLATE LEFT TOP
72
GUSSET PLATE RIGHT TOP
74
GUSSET PLATE LEFT BOTTOM
74
GUSSET PLATE RIGHT BOTTOM
83
SCREW GUSSET PLATE TO SIDE MEMBER
83
SCREW ENGINE SUPPORT TO SIDE MEMBERS M 12X40
83
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
86
NUT , Replaced By: N910113012003
86
NUT , Replaced By: N910113014000
89
HELPER SPRING BRACKET FRONT LEFT
89
HELPER SPRING BRACKET FRONT RIGHT
89
HELPER SPRING BRACKET REAR LEFT
89
HELPER SPRING BRACKET REAR RIGHT
92
PLATE , Replaced By: A3843257254, +001A3843257354
92
PLATE HELPER SPRING BRACKET,FRONT
92
PLATE HELPER SPRING BRACKET,REAR
95
SCREW , Replaced By: N308676014012
98
NUT , Replaced By: N910113014000
101
SCREW BRACKET TO FRAME
104
NUT , Replaced By: N910113014000
