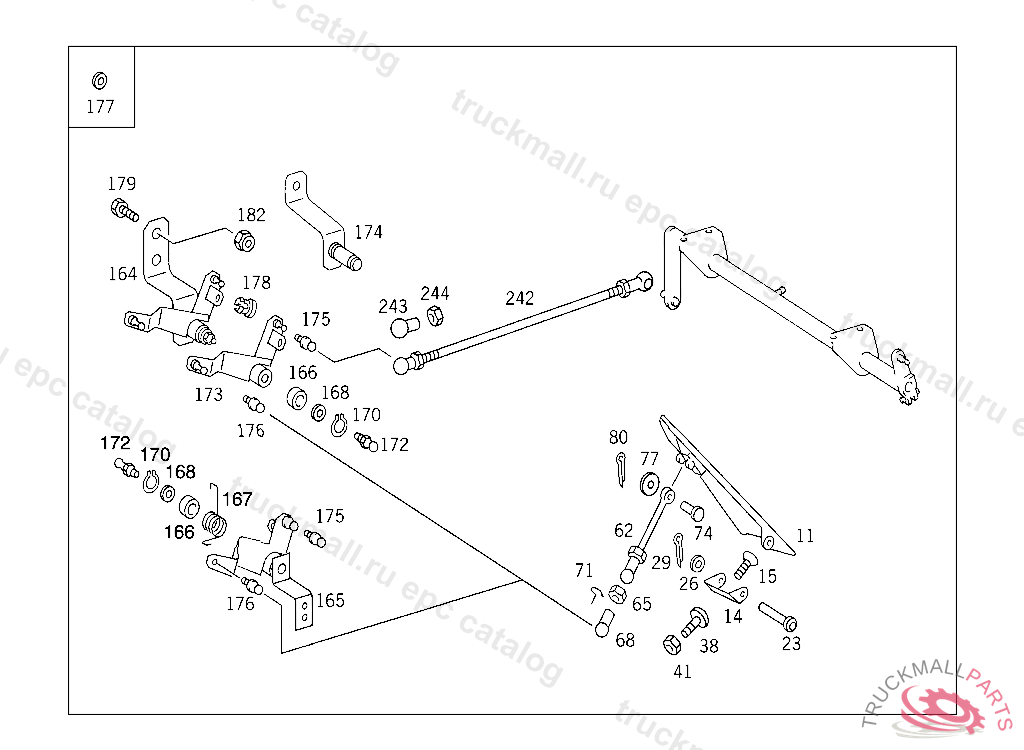

Поз.
Артикул
Описание
11
PEDAL PLATE ACCELERATOR PEDAL
14
ARTICULATION PIECE ACCELERATOR PEDAL
15
SCREW ARTICULATION ELEMENT TO FLOOR M8X20,D 209703
23
PIN ACCELERATOR PEDAL TO JOINT
26
WASHER GROUND CABLE
29
COTTER PIN STRAP TO BRACKET
38
STOP
41
NUT
62
ROD ACCELERATOR CONTROL
65
NUT BATTERY CASE
68
BALL SOCKET ROD TO BALL PIVOT
71
SECURING CLIP. CIRCLIP
74
PIN ROD TO PEDAL PLATE
77
WASHER6,4
80
COTTER PIN ROLLER TO LEVER
164
LEVER BRACKET
166
BUSHING , USED WITH AIR BRAKE
167
SPRING REVERSING LEVER
168
FITTED WASHER , USED WITH AIR BRAKE
170
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
172
GREASE NIPPLE
173
LEVER (DOUBLE LEVER)
174
BRACKET (DOUBLE LEVER)
175
BALL PIVOT , Replaced By: A3129910120
176
BALL PIVOT
177
WASHER SUPPORT TO FRAME,D 127794
178
BUSHING CONTROL LEVER,B 892892
179
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
179
SCREW PLUG SOCKET TO FRAME
182
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
182
NUT BRACKET TO BATTERY CASE
