Mercedes A0229972682 - Шланг

E 55 AMG 210.274 TO MODELLJAHR CODE 809

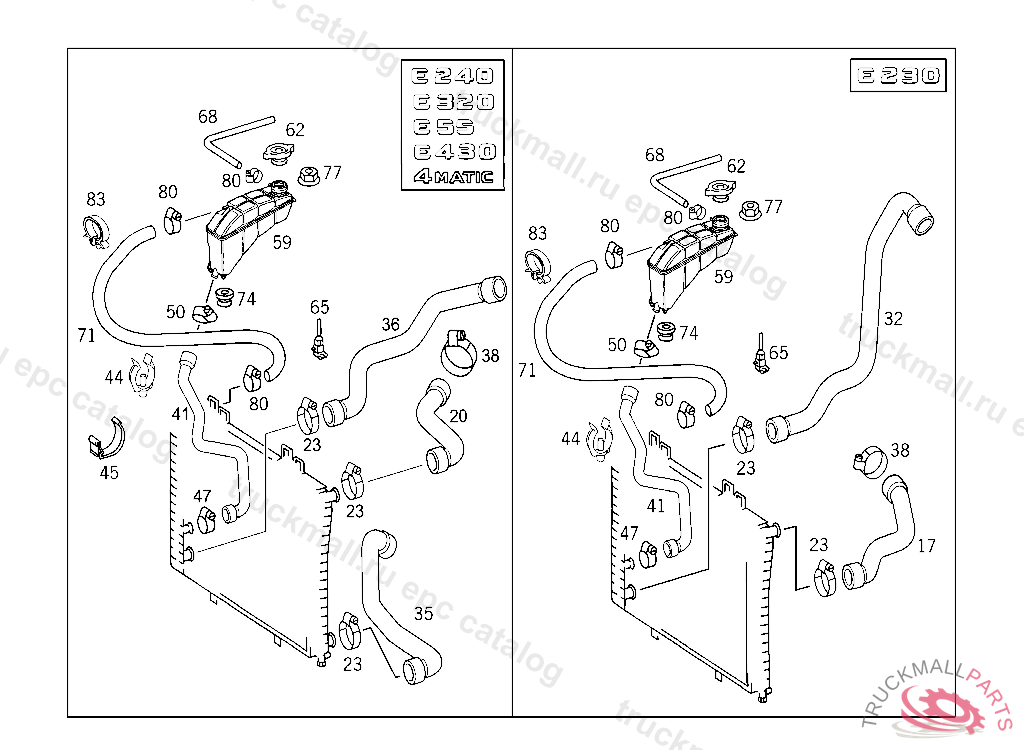

50 RADIATOR - 165 EXPANSION TANK,MOUNTING AND HOSES IL. 1

Поз.
Артикул
Описание
23
A0069974390
LOOM TIE. CLAMP HOSE FASTENING
35
A2105014382
HOSE BOTTOM
36
A2105012682
HOSE BOTTOM
38
A0069970590
LOOM TIE
41
A2105012082
HOSE
44
A1265010020
BRACKET JACK FIXTURE
45
A2105010020
BRACKET
47
A0069970390
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
50
A0069974290
CLAMP HOSE FASTENING 28-35 MM,V 207570
59
A2105000349
TANK , Replaced By: A2105000549
59
A2105000549
TANK EXPANSION TANK
62
A2105010315
RADIATOR CAP EXPANSION TANK,A 334378
65
A2105450024
SWITCH,AUTOMATIC EXPANSION TANK, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
68
A0229972682
HOSE OVERFLOW 530 MM, ORDER BY THE METER
71
A2105001472
LINE FROM EXPANSION TANK TO RADIATOR
74
A2015040112
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
77
A0019905850
NUT EXPANSION TANK TO WHEELHOUSE
77
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
80
A0059970190
HOSE CLAMP LINE MOUNTING
80
A1409950405
CLAMP14 MM
83
A0009955244
CLAMP
83
A0009957444
CLAMP
