Mercedes A2025050073 - Замок

E 55 AMG 210.274 TO MODELLJAHR CODE 809

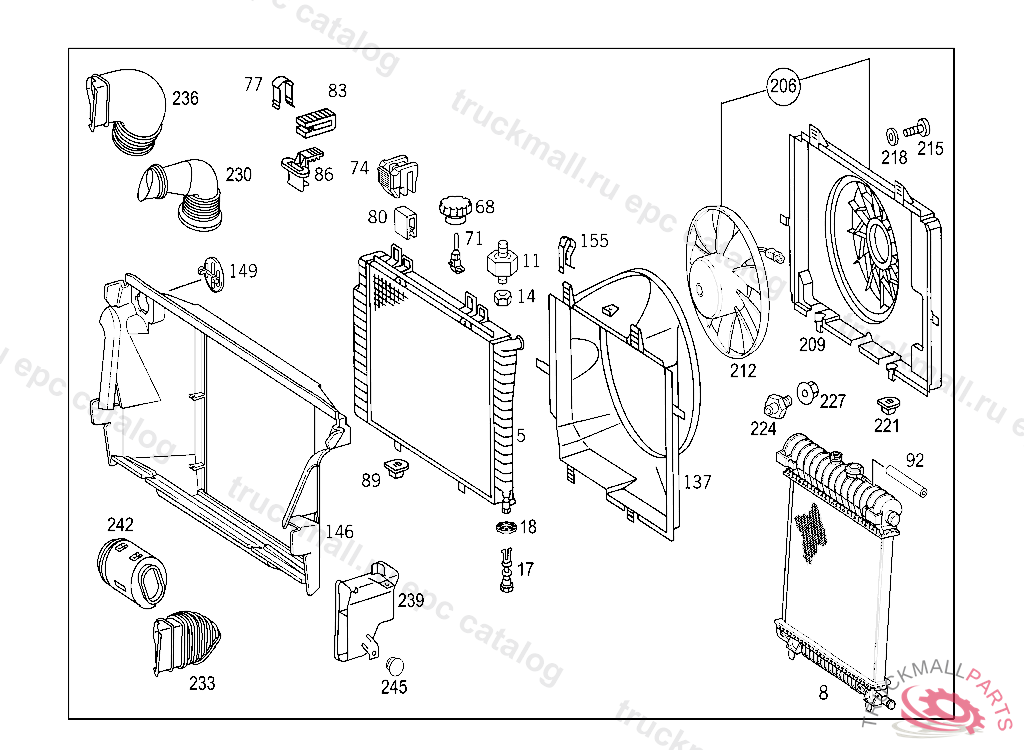

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
5
A2105004703
RADIATOR
17
A0005000185
SCREW WATER DRAIN
18
A0005010176
WASHER WATER DRAIN
68
A2105010315
RADIATOR CAP EXPANSION TANK,A 334378
71
A2105450024
SWITCH,AUTOMATIC EXPANSION TANK, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
74
A2105040146
CLAMP RADIATOR TO CENTRAL STIFFENING
77
A2025040246
CLAMP RADIATOR TO CENTRAL STIFFENING
80
A2105040412
RUBBER MOUNT RADIATOR TO CENTRAL STIFFENING
86
A2025050073
LOCK , Replaced By: A2105040146, +002A2105040412
89
A2105040012
RUBBER MOUNTING RADIATOR TO SUPPORT
137
A2105051555
FAN SHROUD
146
A2105000416
AIR BAFFLE , Replaced By: A2105000516
146
A2105000516
AIR BAFFLE
149
A2105050203
COVER
155
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
239
A2105281004
SCOOP COLD AIR INTAKE
245
A0029978186
PLUG
