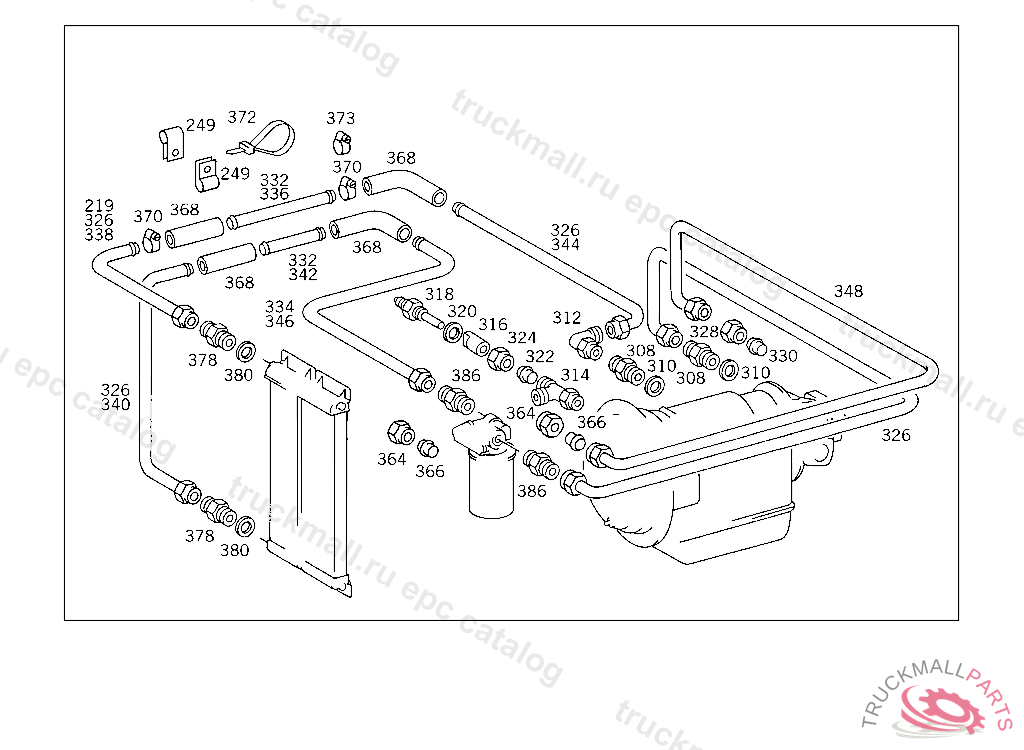

Поз.
Артикул
Описание
219
LINE FEED, OIL COOLER
249
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
249
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
308
FITTING OIL LINE TO TRANSMISSION
308
FITTING OIL LINE TO TRANSMISSION
308
FITTING OIL LINES TO TRANSMISSION
310
SEAL RING OIL LINES TO TRANSMISSION
312
FITTING SUCTION LINE TO OIL PUMP
312
ELBOW FITTING LINE CONNECTION
312
ELBOW FITTING OIL LINE TO TRANSMISSION
314
FITTING BETWEEN THE LINES
314
T-FITTING OIL LINE TO TRANSMISSION
314
FITTING OIL TEMPERATURE REGULATOR
316
FITTING OIL LINES TO TRANSMISSION
318
SENDER UNIT OIL TEMPERATURE
320
SEAL RINGTO 000 553 03 05,000 553 18 05,
322
GLAND , Replaced By: A0019901267
324
NUT LINE CONNECTION
324
UNION NUT LINE CONNECTION, Replaced By: N000000006243
326
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
326
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
328
NUT. UNION NUT LINE CONNECTION
328
UNION NUT LINE MOUNTING
330
SEAL CONE LINE MOUNTING
330
GLAND , Replaced By: A0019901167
330
CUTTING RING. GLAND LINE CONNECTION
332
HOSE OIL LINE CONNECTION
332
HOSE OIL LINE CONNECTION
334
HOSE RETURN TO OIL FILTER
334
HOSE RETURN TO OIL FILTER
336
PIPE FEED, FROM HOSE TO HOSE,5 501368
336
LINE FEED, FROM HOSE TO HOSE
336
LINE FEED, FROM HOSE TO HOSE,5 360280
336
LINE FEED, FROM HOSE TO HOSE,5 360279
338
PIPE FEED, OIL COOLER,5 393906
338
LINE FEED, OIL COOLER
338
PIPE FEED, OIL COOLER,5 393905
338
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
338
PIPE FEED, OIL COOLER
338
PIPE FEED, OIL COOLER
338
PIPE , Replaced By: A0004291601
340
LINE RETURN, OIL COOLER
340
PIPE RETURN, OIL COOLER
340
PIPE , Replaced By: A0004291601
340
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
340
PIPE RETURN, OIL COOLER,5 393905
340
PIPE RETURN, OIL COOLER,5 393906
340
PIPE RETURN, OIL COOLER
342
PIPE RETURN, FROM HOSE TO HOSE,5 501368
342
LINE RETURN, FROM HOSE TO HOSE,5 360280
342
LINE RETURN, FROM HOSE TO HOSE,5 360279
344
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
344
PIPE FEED, FROM TRANSMISSION TO HOSE,5 360279
344
PIPE , Replaced By: A0004291601
344
PIPE FEED, FROM TRANSMISSION TO HOSE,5 360279
344
PIPE FEED, FROM TRANSMISSION TO HOSE,5 360279
346
PIPE RETURN, FROM HOSE TO OIL FILTER,5 360279
346
PIPE , Replaced By: A0004291601
346
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
346
PIPE RETURN, FROM HOSE TO OIL FILTER,5 360279
346
PIPE RETURN, FROM HOSE TO OIL FILTER,5 360279
348
LINE FROM TRANSMISSION TO THERMOSTAT,5 360280
348
PIPE FROM TRANSMISSION TO THERMOSTAT,5 360280
364
UNION NUT LINE CONNECTION, Replaced By: N000000006243
364
NUT LINE CONNECTION
366
GLAND , Replaced By: A0019901267
368
PIPE OIL LINE CONNECTION
368
HOSE FROM OIL COOLER TO TRANSMISSION
368
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
370
CLAMP25-40X13 MM
370
CLAMP , Replaced By: N000000000667
370
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
370
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
372
CLAMP , UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
373
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
373
CLAMP , Replaced By: N000000000667
378
FITTING OIL LINE TO RADIATOR
378
FITTING OIL LINE TO OIL COOLER
378
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
378
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
380
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
380
SEAL RING FUEL LINE TO FEED PUMP
380
SEAL RING OIL LINE TO OIL COOLER
386
FITTING OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
386
FITTING OIL FILTER
999
LINE , Replaced By: A0005516456
999
RADIATOR ,4 706542
999
CLAMP , Replaced By: N916017011000
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
RADIATOR OIL, NOT USED
999
SCREW PLUG , Replaced By: N007604014101
999
FITTING , Replaced By: A0029906171
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
BOOT FAN SHROUD TO FAN RING
999
CLAMP FAN SHROUD TO FAN RING
999
FILTER OIL FILTER
999
BRACKET , Replaced By: A3812700241
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET , Replaced By: A3604293140
999
LINE , Replaced By: A3815001472
999
FAN SHROUD , 0-199 FROM CHASSIS 4 428845, 200-599 FROM CHASSIS 4 424216
999
SCREW BRACKET TO TRANSMISSION,5 360279
999
HOSE , Replaced By: A3819970682
999
BRACKET , Replaced By: A3832710140
999
BRACKET OIL LINES TO ENGINE
999
BRACKET OIL LINE TO CRANKCASE
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR
999
SUPPORT RADIATOR MOUNTING,4 428845
999
CONNECTOR , Replaced By: A6205010223
999
BRACKET CABLE HARNESS TO LEAK LINE
999
BRACKET OIL FILTER
999
PIPE , Replaced By: A0004291601
999
BRACKET GOVERNOR
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO OIL COOLER
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO TRANSMISSION
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PANELLING CIRCULATING AIR
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 5 141771, Replaced By: A4010100940
999
BALL SOCKET ROD TO BALL PIVOT
999
LINE FEED, OIL COOLER
999
LINE RETURN, OIL COOLER
999
PIPE , Replaced By: A6152701396
999
PIPE , Replaced By: A6152701496
999
PIPE RETURN, FROM OIL TEMPERATURE REGULATOR TO OIL FILTER
999
PIPE FROM OIL FILTER TO TRANSMISSION
999
BRACKET OIL COOLER TO RADIATOR
999
RADIATOR
999
SHIM OIL COOLER TO BRACKET
999
SHIM OIL COOLER TO BRACKET
999
BRACKET OIL LINES TO ENGINE
999
CONNECTOR AT WATER PUMP
999
BRACKET OIL LINES TO ENGINE,5 501369
999
BRACKET OIL LINES TO ENGINE,5 501369
999
PIPE , Replaced By: A6172704996
999
LINE , Replaced By: A0005516156
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
AIR BAFFLE RADIATOR, NOT USED
999
HOSE HEATING PIPE TO RADIATOR
999
PIPE ELBOW , Replaced By: A6205010556
999
PIPE ELBOW , Replaced By: A6555010756
999
HOSE , Replaced By: A6175014982
999
HOSE , Replaced By: A6175014982
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
CONNECTION FITTING , Replaced By: A0049971772
999
BALL SOCKET ROD TO BALL PIVOT
999
SECURING CLIP. CIRCLIP
999
NUT
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
