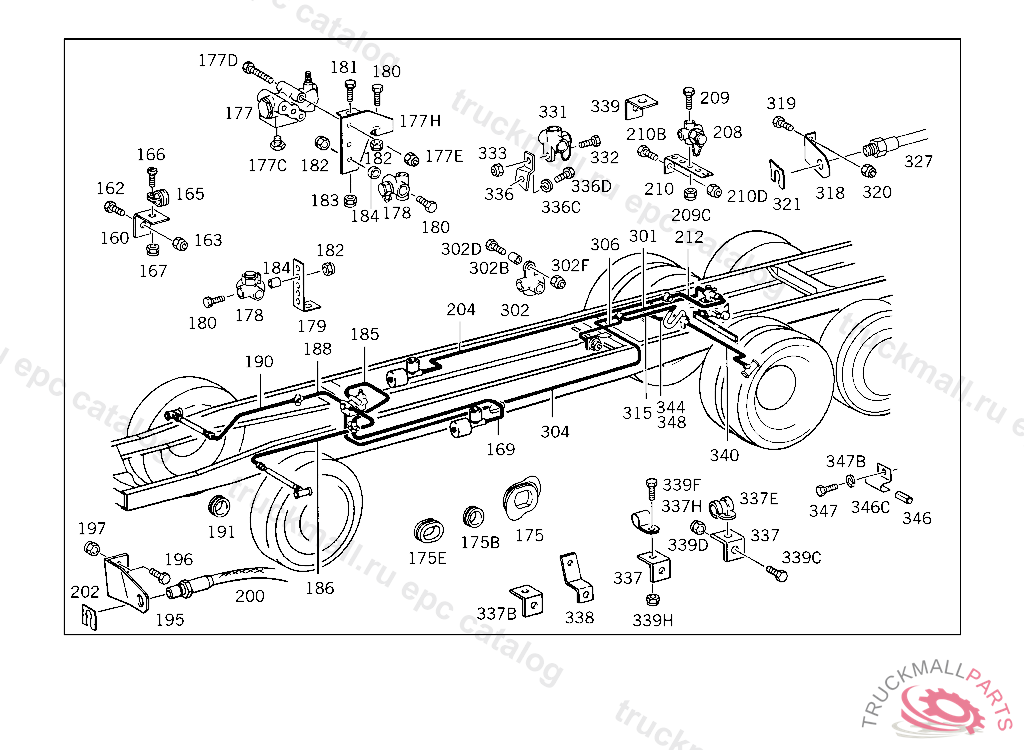

Поз.
Артикул
Описание
160
ANGLE LINE MOUNTING
162
SCREW , Replaced By: N304017008034
162
SCREW BRACKET TO CROSS CONNECTION STRUT
163
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
163
NUT , Replaced By: N913004008001
165
CLAMP ,K 147121, Replaced By: N000000000319
165
CLAMP , Replaced By: N916016008200
166
SCREW SHIFT CASE TO SLOTTED GATE
167
NUT PUMP TO BRACKET
167
NUT , Replaced By: N913004006001
175
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,4 367061
179
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
180
SCREW BRACKET TO CROSS CONNECTION STRUT
181
SCREW END PIECE TO EXHAUST PIPE M 10X25
182
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
183
NUT STRAP TO BRACKET
184
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
185
LINE FROM TEST CONNECTION TO VALVE 400 MM,4 478330
185
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
186
LINE FROM VALVE TO BRAKE HOSE 1600 MM
188
LINE FROM CONNECTOR TO TEST CONNECTION 3400 MM,4 478330
190
LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
191
GROMMET LINE MOUNTING 19/13 MM
195
BRACKET LEFT FRONT BRAKE HOSE TO FRONT AXLE
196
SCREW PIPE CLAMP
197
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
BRAKE HOSE650 MM
200
BRAKE HOSE650 MM
202
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
208
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
209
SCREW BRACKET TO CROSS CONNECTION STRUT
302
TEST CONNECTION FRONT AXLE
318
BRACKET BRACKET TO RIGHT SIDE MEMBER
319
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
320
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
321
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
327
BRAKE HOSE650 MM
327
BRAKE HOSE650 MM
331
TEST CONNECTION FRONT AXLE
332
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
333
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
336
BRACKET TEST CONNECTION TO REAR AXLE I,4 628861
339
BRACKET SENSOR CABLE TO FRONT AXLE
346
HOSE BRAKE LINE TO REAR AXLE,4 644238
999
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
999
VALVEBOSCH
999
BLEEDER VALVE , Replaced By: A0004310265
999
BLEEDER VALVE , Replaced By: A0004310265
999
PROTECTIVE CAP , Replaced By: A0004217187
999
PROTECTIVE CAP , Replaced By: A0004210887
999
PROTECTIVE CAP ,5 962906
999
SCREW PLUG CONNECTION "1","2",4 478330
999
VERTEILER. DISTRIBUTOR
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
FITTING DIAPHRAGM CYLINDER,CONNECTION:
999
FITTING LEFT AND RIGHT BRAKE HOSES
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING , Replaced By: N915045012100
999
DISTRIBUTOR ,4 342862
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KITTO 001 431 47 06,WABCO 2210, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
999
REPAIR KIT COMPRESSED AIR CYLINDER TO 000 431 95 14,001 431 32 14
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE BOSCH
999
REPAIR KITTO 001 431 84 06,KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 000 430 56 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SPRING RETAINER
999
BREATHER PIPE PRESSURE REGULATOR,CONNECTION "3",4 281211
999
VALVE , Replaced By: A3075530107
999
WASHER , Replaced By: A0004311176
999
RUBBER RINGTO 001 431 43 05,002 431 05 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
VALVE , Replaced By: A0004310265
999
YOKE , Replaced By: A0004310667
999
SLIDETO 000 431 50 14,000 431 24 14
999
YOKE BOTTOM
999
FILLER RING
999
CONNECTOR PULL ROD TO LEVER
999
YOKE L.H. THREAD, SELF-LEVELLING DEVICE
999
THREADED UNION
999
LINE , Replaced By: A6254293501
999
BRACKET , NOT USED
999
LEVER , Replaced By: A6744310039
999
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
999
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
COTTER PIN
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
COTTER PIN PUSH ROD TO BRAKE PEDAL
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PINROCKINGER,TYP 59 U150
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER RADIATOR TO RUBBER MOUNTING
999
LOCK RING22X1.2,TO 001 431 71 14
999
LOCK RINGTO 001 431 71 14,001 431 73 14
999
LOCK RINGTO 000 431 94 14,000 431 96 14
999
LOCK RINGTO 000 431 94 14,000 431 96 14
999
SCREW PLUG , Replaced By: N000908012009
999
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
SCREW REAR AXLE REGULATING SOLENOID VALVE
999
SCREW STRAP TO BRACKET
999
SCREW BRACKET TO BELL HOUSING
999
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
999
SCREW , Replaced By: N304017008016
999
SCREW BRACKET TO RIGHT SIDE MEMBER
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
WASHER BUMPER BRACKET TO COUPLING MOUTH
999
FITTING CONNECTION TO STOP LIGHT SWITCH
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET PRESSURE GAUGE LINE TO BRACKET,4 895864
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GROMMET BATTERY CABLE THRU SIDE MEMBER
999
CLAMP BRAKE LINE TO REAR AXLE,4 644238
999
BRACKET (REGULATING VALVE),4 478330
999
BRACKET TEST CONNECTION
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET BRAKE POWER REGULATOR
999
BRACKET BRAKE VALVE
999
BRACKET INTERMEDIATE LEVER,6 003895
999
BRACKET , Replaced By: A3854313240
999
SPACER TUBE INTERMEDIATE LEVER TO BRACKET,6 003895
999
LEVER , Replaced By: A6204310839
999
CONNECTOR ,4 219724
999
ROD FROM CONNECTOR TO REAR AXLE II,6 003895
999
ROD , Replaced By: N900331008420, +001A0004310667, +001N000934008010
999
ROD , EXHAUST STOCK OF OLD PARTS FIRST UP TO CHASSIS 4 316398, Replaced By: A3854302692
999
ROD , Replaced By: N900331008427, +001A0004310667, +001A0004310867, +001N000934008010, +001N000934008035
999
BRACKET REAR AXLE I,6 003895
999
BRACKET RIGHT FRONT BRAKE HOSE,4 677168
999
BRACKET LEFT FRONT BRAKE HOSE,4 677168
999
BRACKET RIGHT FRONT BRAKE HOSE TO FRONT AXLE
999
LEVER LEFT, 402,407 FROM CHASSIS 657000
999
ROD REAR, REAR AXLE I,4 272929
999
SUPPORT , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB4 444415, Replaced By: A3854260240, +001A3854310853, +001N000931010379, +001N913004010008
999
LINE , Replaced By: A6194290801
999
HUB , NOT USED
999
SPACER TUBE VALVE TO CROSS MEMBER
999
CLAMP FEED LINE TO THERMOSTAT
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SPACER TUBE TEST CONNECTION TO BRACKET, 10/20 UP TO IDENT NO. 4 399151,50/60 UP TO IDENT NO. 4 416112
999
ROD ,4 478504, Replaced By: N900331008426, +001A0004310667, +001A0004310867, +001N000934008010, +001N000934008035
999
BRACKET , Replaced By: A3604292940
999
BRACKET , Replaced By: A3604292940
999
LEVER , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 4 349554, Replaced By: A3854200681
999
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 349554, Replaced By: A3854200581
999
ROD FROM DOUBLE LEVER TO REAR AXLE II, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE 800 MM,4 478330
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
999
PROTECTIVE CAP , Replaced By: A0004210887
999
CLAMP 3/2-WAY SOLENOID VALVE
999
BUSHING ,4 2827078 000001-8 001702
999
CLAMP BRAKE LINE MOUNTING
999
VALVE CLUTCH SLAVE CYLINDER
999
SEAL RING BRAKE HOSE
999
THREADED UNION PRESSURE REGULATOR,CONNECTION "3",5 148813 ORDER BY THE METER
999
SEAL RING , Replaced By: A0049970248
999
SEAL RINGTO 001 431 43 05
999
SEAL RINGTO 001 431 68 06,19.3X2.4 MM,GRAU37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
SEAL RINGTO 000 431 43 12,000 431 44 12, NO LONGER AVAILABLE
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER TEVES,TO 001 431 35 05,001 431 43 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
WHEEL BRAKE CYLINDER , WITH OFFSET BLEEDER CONNECTION WITH 8-MM,OR 10-MM,MOUNTING SCREWS EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 847617, Replaced By: A0044206818
999
SEAL RINGTO 000 431 95 14,4 847617
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER SCHAEFER,TO001 431 94 05,002 431 05 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RING 25.3X2.4 MM,TO 001 431 68 06, 002 431 02 06
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
FITTING , Replaced By: A0029906171
999
SEAL RINGBOSCH
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER, NOT FOR USE WITH MERCEDES-BENZ CAB
999
WHEEL BRAKE CYLINDER , WITH 8-MM,OR 10-MM,MOUNTING SCREWS, Replaced By: A0074202018
999
SEAL RINGTO 000 431 95 14,4 847617
999
SEAL RINGTO 000 439 95 14,4 847617
999
SEAL RINGTO 000 431 95 14,4 847617
999
SEAL RINGTO 001 431 71 14,001 431 73 14
999
SEAL RINGTO 000 439 95 14,4 847617
999
GROMMET OIL DELIVERY LINE THRU FENDER SUPPORT
999
REPAIR KITTO 000 431 69 12
999
REPAIR KITTO 000 430 66 81,000 430 67 81, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
REPAIR KITTO 001 431 65 14,000 431 24 14
999
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
999
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
999
SEAL RING
999
FITTING DELIVERY LINE TO PUMP
999
FITTING (PARTS KIT),LINE RUPTURE
999
ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "1", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
REPAIR KIT COMPRESSED AIR CYLINDER TO 001 431 08 14,002 430 10 30
999
REPAIR KIT , Replaced By: A0034303881
