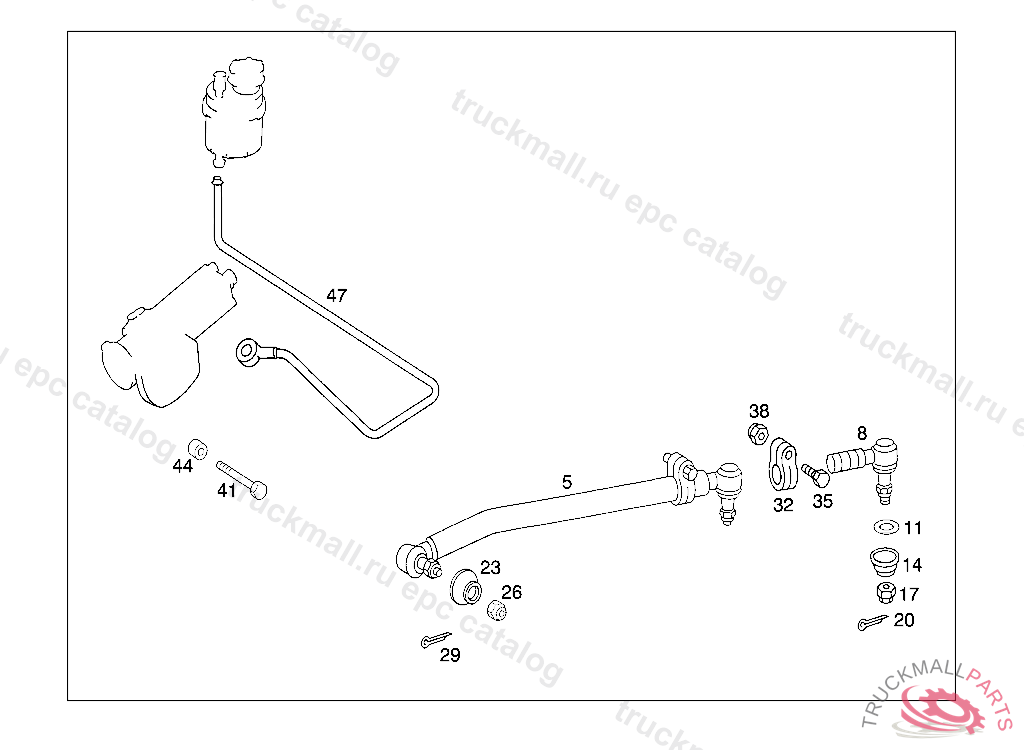

Поз.
Артикул
Описание
5
DRAG LINK AT STEERING GEAR
5
DRAG LINK AT STEERING GEAR NAKATA
5
DRAG LINK AT STEERING GEAR TRW DO BRASIL
8
DRAG LINK END TO BE SCREWED INTO DRAG LINK TO 682 460 31 05
8
DRAG LINK END FIXED PART OF JOINT TO 384 460 98 05
8
JOINT TO BE SCREWED INTO DRAG LINK TO 682 460 98 05
11
SPACER RING SCREWED PART OF JOINT TO 693 460 71 05
14
DUST CAP SCREWED PART OF JOINT TO 682 460 31 05,98 05,75 05,77 05
14
BOOT SCREWED PART OF JOINT TO 384 460 97 05,98 05,99 05
17
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
20
COTTER PINROCKINGER TYP 260 G140
23
BOOTTO 384 460 92 05, NOT USED
23
BOOT FIXED PART OF JOINT TO 384 460 88 05
23
BOOT
26
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
29
COTTER PINROCKINGER TYP 260 G140
32
CLAMP JOINT TO TIE ROD TO 693 460 70 05
32
CLAMP JOINT TO DRAG LINK TO 682 460 75 05
35
SCREW , Replaced By: N308676012018
38
NUT SUPPORT TO SIDE MEMBER
41
SCREW STEERING SUPPORT TO FRAME M 20X1.5X200
44
BUSHING STEERING SUPPORT TO FRAME
47
LINE FROM STEERING GEAR TO OIL TANK
999
LINE FROM STEERING GEAR TO OIL TANK
