Поз.
Артикул
Описание

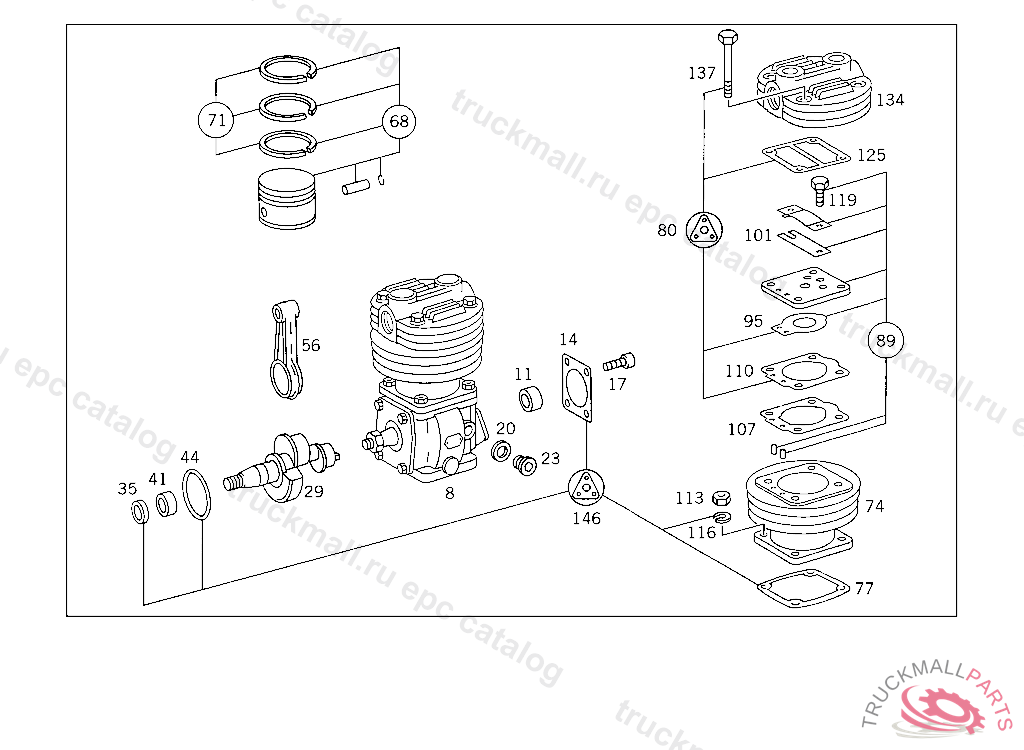

8
COMPRESSOR
11
BUSHING CRANKSHAFT REAR BEARING TO 376 131 74 01
14
GASKETTO 376 131 74 01
17
SCREW STEERING SHAFT BEARING TO CAB
20
SEAL RING BRAKE CYLINDER STROKE INDICATOR
23
SCREW PLUG , Replaced By: N000000000648
29
CRANKSHAFT
35
SEAL RING CRANKSHAFT SEALING,FRONT WABCO
35
SEAL RING
41
BUSHINGTO 376 131 74 01
44
SEAL RINGTO 376 131 74 01
56
CONNECTING ROD LESS BEARING SHELLS TO 376 131 74 01
68
PISTON
68
PISTONTO 003 131 48 01,004 131 58 01
71
PISTON RING PARTS KIT TO 003 131 63 01,004 131 05 01/19 01
74
CYLINDER LINER
77
GASKET
80
GASKET KIT DISC VALVE TO 003 131 63 01,004 131 05 01/19 01
89
VALVE PARTS KIT
95
VALVE DISC (SUCTION DISC) TO 003 131 48 01,004 131 58 01
95
VALVE DISC (PRESSURE DISC)
101
VALVE DISC (PRESSURE DISC) TO 003 131 63 01,004 131 05 01/19 01
101
VALVE DISC (PRESSURE DISC)
107
GASKETTO 004 131 05 01
110
GASKET
113
NUT , Replaced By: N304032008006
116
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
119
SCREW FEED LINE AND RETURN LINE
125
GASKET CYLINDER HEAD TO CYLINDER LINER
134
CYLINDER HEAD
137
SCREW CLUTCH TO FLYWHEEL,760271
137
SCREW VALVE TO BRACKET, Replaced By: N304014008002
146
GASKET KIT AIR COMPRESSOR
999
V-BELT FROM TIGHTENER PULLEY TO FAN PULLEY 12.5X925,B 964497D 159626
999
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
999
OIL LINE LUBRICATION OF CHANGE-OVER TIMING CONTROL
999
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
999
SUPPORT , Replaced By: A3644661441
999
EXPANSION PLUG OIL FILLER NECK
999
PULLEY THREE-GROOVE
999
PULLEY HYDRAULIC PUMP
999
CLAMPING BOLT (CLAMPING BOLT)
999
WASHER , Replaced By: N000433010510
999
SCREW CLUTCH PRESSURE PLATE TO FLYWHEEL
999
NUT AIR CLEANER ELEMENT
