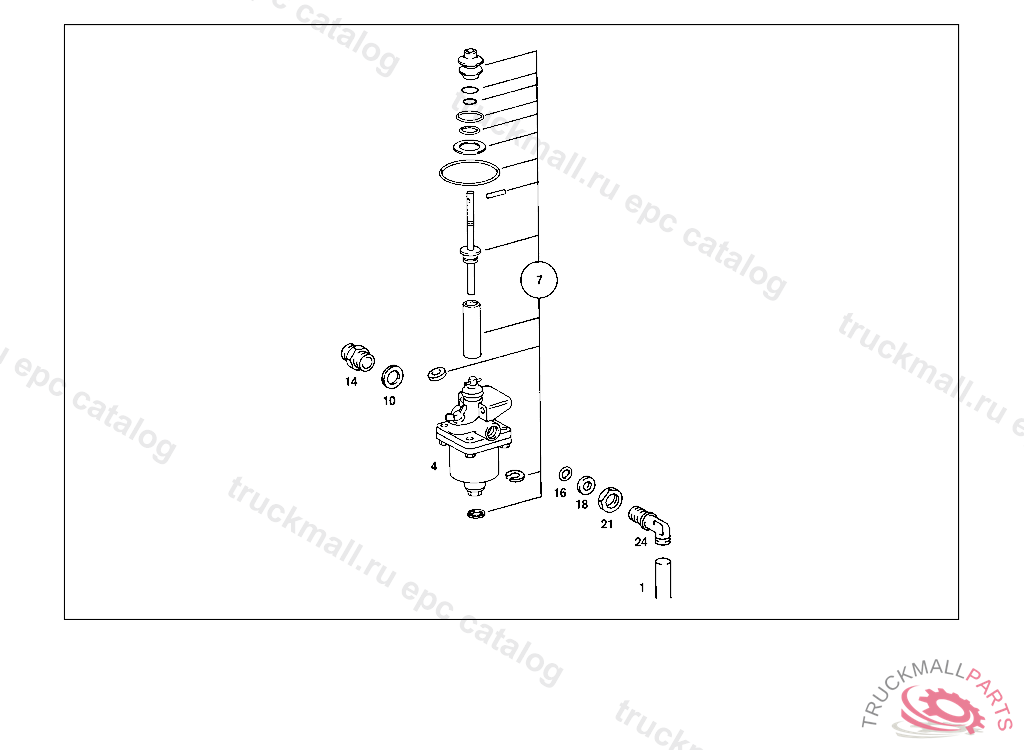

Поз.
Артикул
Описание
1
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
4
ANTI-FREEZE DEVICE , Replaced By: A0004312615
4
ANTI-FREEZE DEVICE , Replaced By: A0004312615
4
ANTI-FREEZE DEVICE
7
REPAIR KITWEST 432 199 015 0,432 199 030 0
7
REPAIR KITWEST 432 199 015 0,432 199 030 0
10
SEAL RING LINE CONNECTION
14
FITTING SHUTTLE VALVE,CONNECTION: "20"
16
O-RING CHECK VALVE TO AIR RESERVOIR
16
O-RING CHECK VALVE TO AIR RESERVOIR
18
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
18
THRUST RING CHECK VALVE TO AIR RESERVOIR
18
THRUST RING CHECK VALVE TO AIR RESERVOIR
21
NUT CHECK VALVE TO AIR RESERVOIR
21
NUT CHECK VALVE TO AIR RESERVOIR
24
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
999
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
999
REPAIR KITTO 000 431 21 15,WEST 432 199 010 0
999
VALVE DRAIN, Replaced By: A0004322107
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322407
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
SCREW PLUG WITH DIPSTICK
