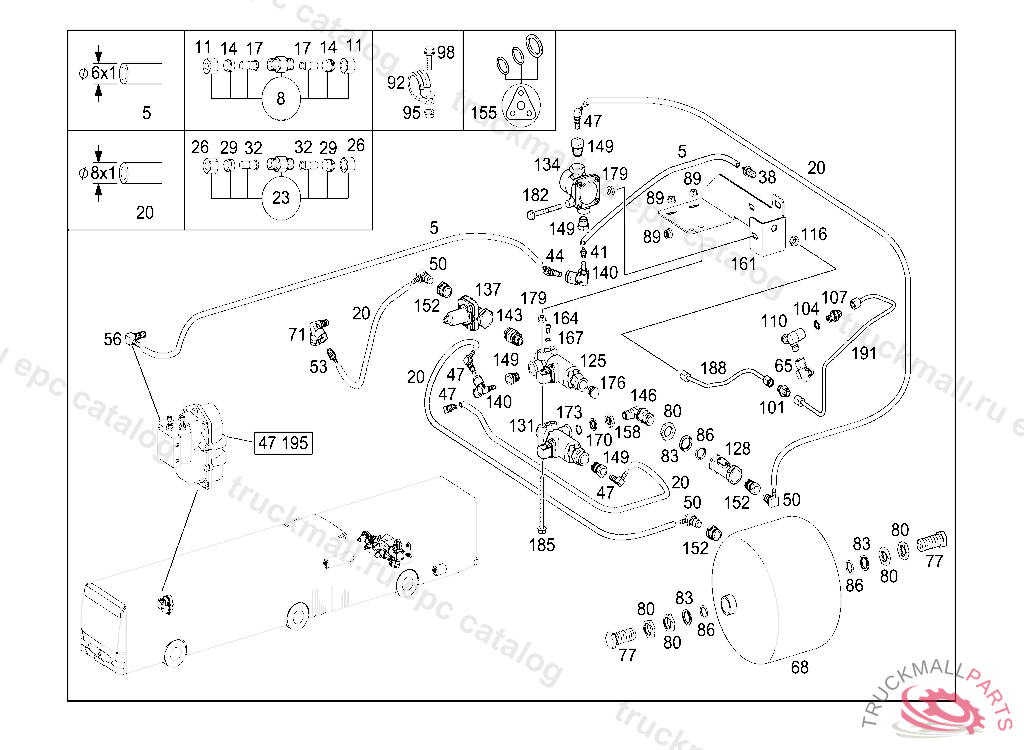

Поз.
Артикул
Описание
5
PLASTIC PIPE RISING PIPE 4X6 MM
8
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
UNION NUT
14
GLAND , Replaced By: A0019901667
17
SLEEVE LEAK LINE
20
PLASTIC PIPE AERATION, ORDER BY THE METER
23
FITTING (PARTS KIT),LINE RUPTURE
26
UNION NUT LINE CONNECTION
29
GLAND LINE CONNECTION
32
SLEEVE LINE CONNECTION
38
FITTING , Replaced By: N915059004001
41
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 4MM, VOSS 232
41
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, Replaced By: A0059977889
44
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINES TO M 16 / 4 MM ,VOSS 232,KAN 33/00 AS OF PRODUCTION BREAKPOINT DATE 01.01.2004
44
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, VOSS 232
47
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232, Replaced By: A0059972689
47
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232
50
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 6 MM, VOSS 232
53
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, 6MM, VOSS 232
56
ELBOW FITTING , Replaced By: A0049971389
65
TEST CONNECTION
68
RESERVOIR6L
71
V PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, M22X1.5 / M22X1.5, VOSS 232
77
SCREW AIR RESERVOIR,CONNECTIONS: "12,13"
80
NUT FITTING TO BRACKET,230274
83
THRUST RING CHECK VALVE TO AIR RESERVOIR
86
O-RING CHECK VALVE TO AIR RESERVOIR
89
NUT ENGINE MOUNTING M8
89
NUT HORN TO BRACKET M8
92
CLAMP6/15, Replaced By: N000000007509
95
NUT , Replaced By: N913023006001
98
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
98
SCREW , Replaced By: N914146006102
101
FITTING , Replaced By: A0039979072
101
FITTING , Replaced By: A0029906071
101
TS DOUBLE FITTING SOLENOID VALVE
104
SEAL RING 3/2-WAY VALVE
107
FITTING
110
L-FITTINGM12X1.5/M10X1.5
116
NUT BULKHEAD FITTING TO BRACKET
116
NUTM12X1.5
125
3-2-WAY PNEUMATIC VALVE 3/2-WAY VALVE ADBLUE
128
NON-RETURN VALVE CHECK VALVE
131
3-2-WAY PNEUMATIC VALVE 3/2-WAY VALVE ADBLUE
134
VALVE PRESSURE LIMIT VALVE
137
VALVE OVERFLOW VALVE ADBLUE, 7.03,V 207570V 208680
140
V PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, M16X1.5 / M16X1.5, VOSS 232
143
STRAIGHT BULKHEAD FITTING WITH O-RING M22X1.5/M16X1.5
146
ELBOW FITTING
149
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
152
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
152
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
155
RS O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
155
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, VOSS 232
158
NUT BRAKE LINE COUPLING TO BRACKET,230274
161
BRACKET
164
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
167
SEAL RING TO LOCK SOLENOID VALVE 7X12MM
170
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
173
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
176
SCREW PLUG SOLENOID VALVE M16
179
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
182
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
182
SCREW , Replaced By: N910143008009
185
HEXAGON HEAD BOLT. SCREW 3/2-WAY VALVE TO BRACKET M 8X100
185
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100
188
COMPRESSED AIR LINE FROM BLUETEC VALVE UNIT TO SEPARATING POINT
191
COMPRESSED AIR LINE FROM SEPARATING POINT TO BLUETEC METERING UNIT
