Mercedes A0009872323 - SCHAUMSTOFFPROFIL

CITARO 18M 4-TUERER 628.252

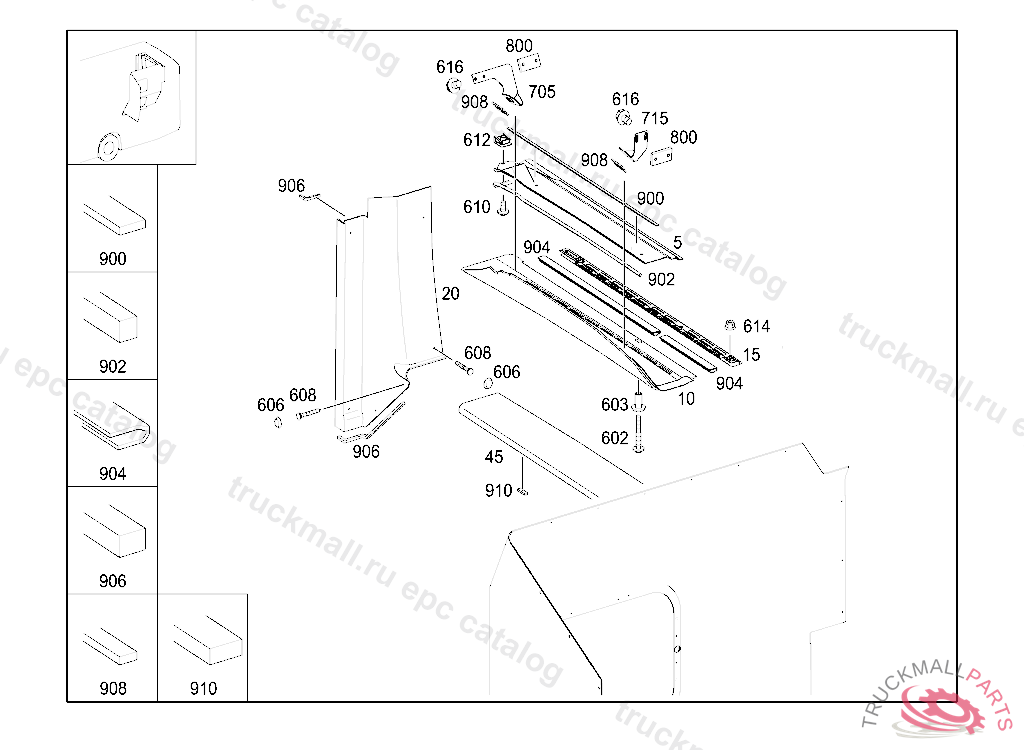

69 COVERING AND LINING - 060 SIDE WALL INTERIOR PANELLING IL. 1

Поз.
Артикул
Описание
5
A6288300546
10
A6286906341
10
A6286906741
15
A6286903639
20
A3116908025
20
A6286901441
20
A3116907925
20
A6286901641
45
A6286901470
602
N000000001481
SCREW PLATE TO BRACKET
603
A6289920310
COLLARED BUSHING
606
A0009878345
LOCKING CAP
608
A0019905336
SCREW4.2X32
610
N000000001475
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
612
A0049941445
LOCK NUT. LOCK PANELLING TO BUMPER
614
N913023006002
NUT BRACKET TO FIRE WALL
616
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
705
A6286902314
BRACKET REAR END,RIGHT
715
A6286905414
800
A6288150011
PLATE
900
A0019899785
ADHESIVE TAPE COVER TO AIR DUCT 1200 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
902
A0029893398
SEALING STRIP5880MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
904
A0009838910
STRIP LEFT REAR ROOF RAIL, ORDER BY THE METER
906
A6289890198
908
A0009871523
PLASTIC SECTION1200MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
910
A0009872323
PLASTIC SECTION SELF-ADHESIVE ON BOTH SIDES 6X15MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
